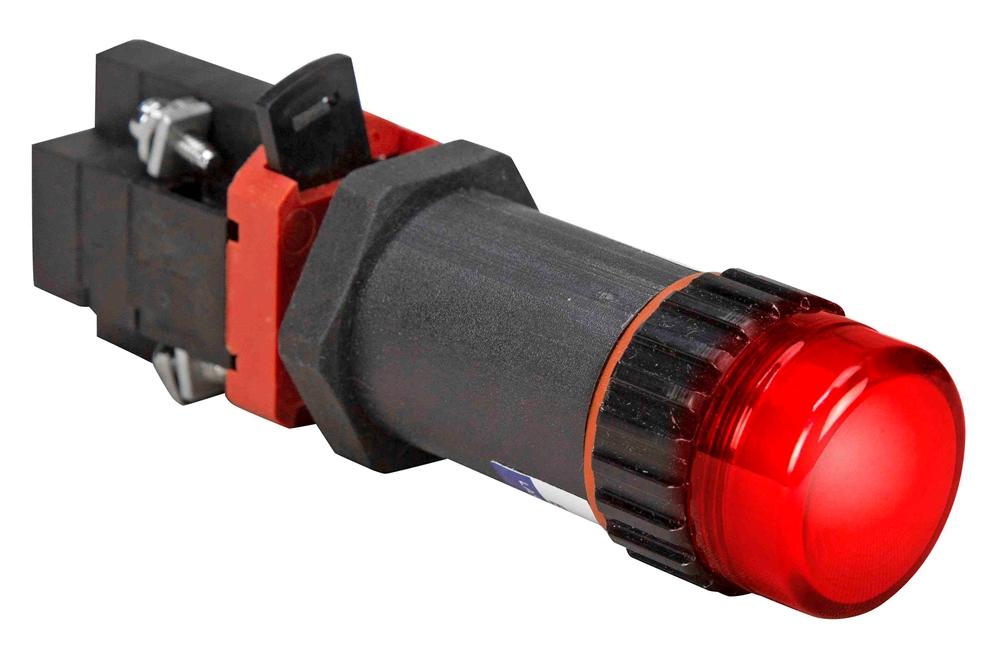

12mA Explosion Proof LED Pilot Light - Class I, II, III - 120V AC/DC, Extended Barrel - Red - TB - N4X


Sale price$305.99


Specifications / Additional Information
EPCS-PL-LED-120V-R-XL Extended LED Pilot Light Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, International  Class I, Divisions 1&2 Groups B,C,D
Unit Type: Explosion Proof Pilot Light Class II, Divisions 1&2 Groups E,F,G
Dimensions: 4.2" x 1.8" x 1.8" Class III
Weight: 0.25 lbs ATEX/IECEx Rated
Voltage Rating: 120V AC/DC Ex II 2G Ex db IIC Gb
Frequency: 50/60 Hz Ex II 2D Ex tb IIIC Db
Watts: 1.5W NEMA 4X
Amp Rating: 12mA IP66
LED Lifespan: 50,000+ Hours
Light Color: Red (Clear)
Thread Length: 2.24" (55mm)
Design: Extended Barrel
Ambient Operating Temp: -50°C to +60°C
Materials: Aluminum and Stainless Steel Toll Free: 1-800-369-6671
Mount: Surface/Panel
Wiring: Terminal Blocks
Body: 3/4"-14 NPSM Threaded
' Product Overview '
The EPCS-PL-LED-120V-R-XL from Larson Electronics is an Explosion Proof LED Pilot Light that is suitable for preventing the ignition of external, flammable atmospheres in combustible sites. This 120V AC/DC unit features a extended barrel, threaded design for installation in thick panels. The explosion proof device comes with terminal blocks for wiring connections. The EPCS-PL-LED-120V-R-XL is rated for Class I, II and III, as well as ATEX/IECEx rated facilities. This extended-barrel unit operates with 120V AC/DC at 12mA. During use, the LED pilot light provides red (clear) output. This NEMA 4X rated device features a 3/4"-14 NPSM threaded body. For protection in hazardous locations, the explosion proof pilot light is constructed of aluminum and stainless steel. The IP66 rated unit features terminal blocks for wiring connections. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Mounting: This pilot light is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
