|EPCS-PL-LED-240V-B-XS Extended LED Pilot Light||Ratings/Approvals|
|Listing: NRTL Listed for United States, Canada, Europe, International||Class I, Divisions 1&2 Groups B,C,D|
|Unit Type: Explosion Proof Pilot Light||Class II, Divisions 1&2 Groups E,F,G|
|Dimensions: 4.2" x 1.8" x 1.8"||Class III|
|Weight: 0.25 lbs||ATEX/IECEx Rated|
|Voltage Rating: 220-240V AC/DC||Ex II 2G Ex db IIC Gb|
|Frequency: 50/60 Hz||Ex II 2D Ex tb IIIC Db|
|Watts: 1.5W||NEMA 4X|
|Amp Rating: 12mA||IP66|
|LED Lifespan: 50,000+ Hours|
|Light Color: Blue (Clear)|
|Thread Length: 0.94" (25mm)|
|Design: Short Barrel|
|Ambient Operating Temp: -50°C to +60°C|
|Materials: Aluminum and Stainless Steel||Toll Free: 1-800-369-6671|
|Wiring: Terminal Blocks|
|Body: 3/4"-14 NPSM Threaded|

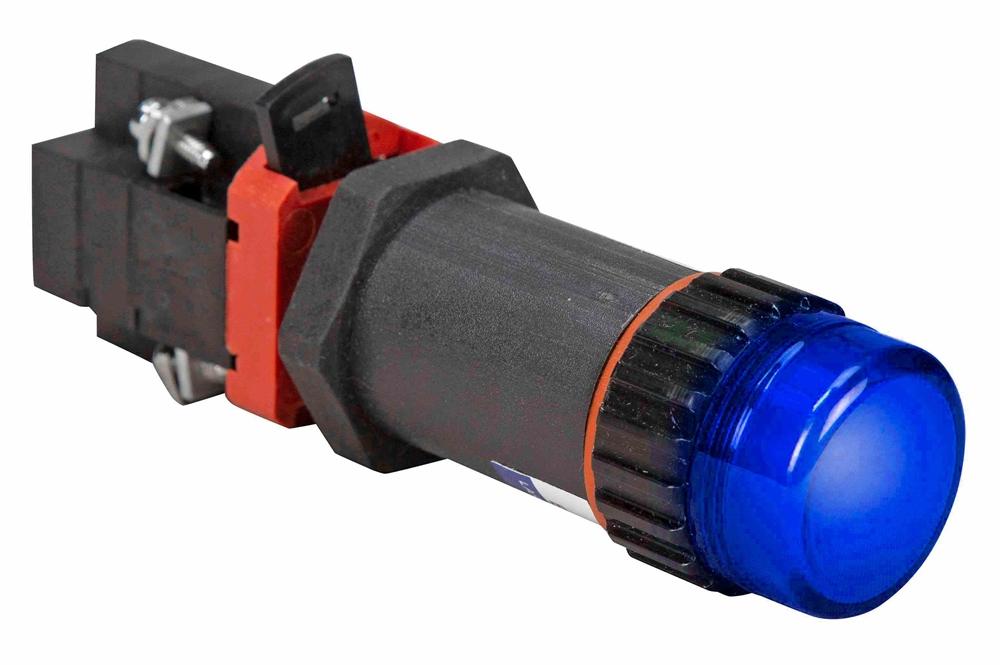

|The EPCS-PL-LED-240V-B-XS from Larson Electronics is an Explosion Proof LED Pilot Light that is suitable for preventing the ignition of external, flammable atmospheres in combustible sites. This 220-240V AC/DC unit features a short barrel, threaded design for installation in thick panels. The explosion proof device comes with terminal blocks for wiring connections. The EPCS-PL-LED-240V-B-XS is rated for Class I, II and III, as well as ATEX/IECEx rated facilities. This short-barrel unit operates with 220-240V AC/DC at 12mA. During use, the LED pilot light provides blue (clear) output. This NEMA 4X rated device features a 3/4"-14 NPSM threaded body. For protection in hazardous locations, the explosion proof pilot light is constructed of aluminum and stainless steel. The IP66 rated unit features terminal blocks for wiring connections. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Mounting: This pilot light is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.|
