Explosion Proof 2-Position Selector Switch w/ LED Pilot Light - Class I, II, III - Key Operated - NEMA

LARSON ELECTRONICSSKU: PL3-EPCS-PL.R-2PSW.KS
filler

Price:
Sale price$2,578.99

Description

Specifications / Additional Information
EPCS-PL.R-2PSW.KS Explosion Proof 2-Position Selector Switch Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Divisions 1 & 2, Groups C, D
Unit Type: Explosion Proof Key Operated Switch w/ Pilot Light Class II, Division 1, Groups E, F & G
Dimensions: - Class III
Weight: - NEMA 7 (C, D), 9 (E, F, G)
Voltage: 240V, 120V or 24V
Selector Switch Type: 2-Position, Maintained
Selector Switch Action: Key Operated, Rotary
Pilot Light: LED
Rated Current: 10 Amps
Material: Copper Free Aluminum Alloy
Mount: Surface
Configuration: Feed Thru or Dead End
Hub Size: 1/2" or 3/4"
' Product Overview '

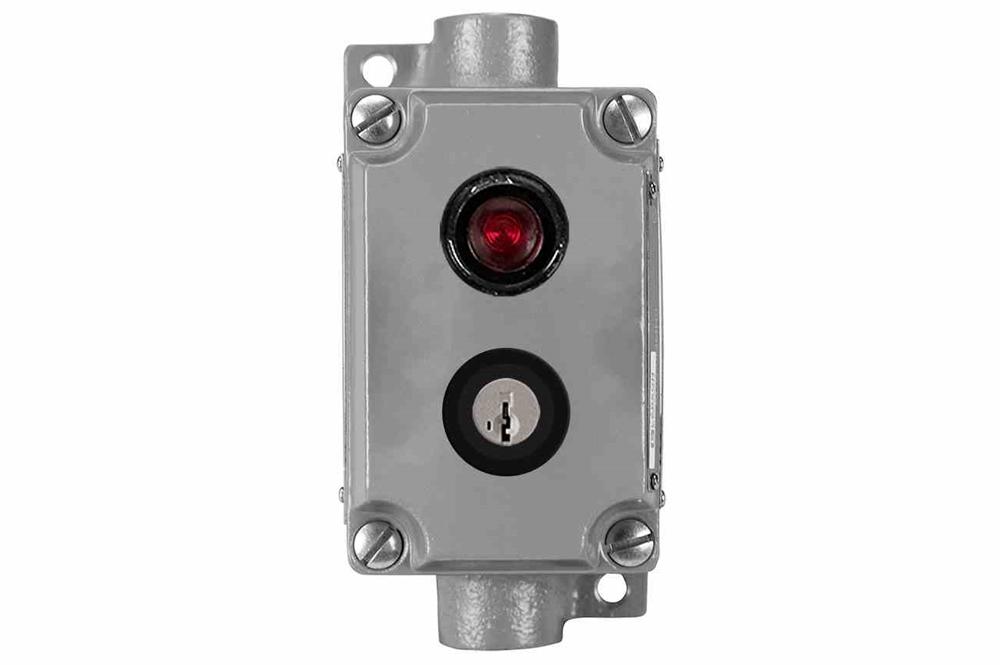

The Larson Electronics EPCS-PL.R-2PSW.KS Explosion Proof 2-Position Selector Switch is suitable for use in Class I, II and III rated combustible sites. This weatherproof unit features an LED pilot light. The NEMA-rated device is constructed of copper-free aluminum and can be mounted on flat surfaces. The EPCS-PL.R-2PSW.KS is recommended for motor or equipment control in flammable facilities. The 10-amp rated unit supports one 2-position switch with maintained operation. Compatible with 240V, 120V or 24V, this rotary device is key operated and features an LED pilot light. The NEMA-rated device is constructed of copper-free aluminum alloy. The EPCS-PL.R-2PSW.KS comes with stainless steel captive screws for the cover assembly. Hubs: The explosion proof switch is offered with a feed thru or dead end configuration for completing wiring connections. Hub size options include: 1/2" NPT or 3/4" NPT. Mount: The EPCS-PL.R-2PSW.KS is compatible with surface mounting applications. Applications: Starters, remote control of motors, chemical processing plants, food processing facilities, oil refineries and other hazardous locations applicable to the unit's classified ratings.
