Explosion Proof Device Box Enclosure - Class I, II, III - (3) Openings - NEMA
Explosion Proof Device Box Enclosure - Class I, II, III - (3) Openings - NEMA
| EPD-CSB-DB-C-3X Explosion Proof Enclosure NEMA Rated | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Class I, Divisions 1 & 2, Groups C & D |
| Unit Type: Explosion Proof Device Box | Class I, Zones 1 & 2, Groups llB, llA |
| Dimensions: 13" x 4-3/8†x 3-1/4" | Class II, Divisions 1 & 2, Groups E, F, & G |
| Weight: - | Class III |
| Operator Holes: (3) | NEMA 7(C,D) 9(E,F,G) |
| Contact Blocks: Heavy Duty; 600V AC Maximum |  |
| Ambient Operating Temperature: -20°C to 40 °C | |
| Materials: Copper-free Aluminum | |
| Ground Screw: Internal | |
| Mount: Wall; (4) Mounting Holes | |
| Conduit Openings: - | |
| Housing Color: Gray | |

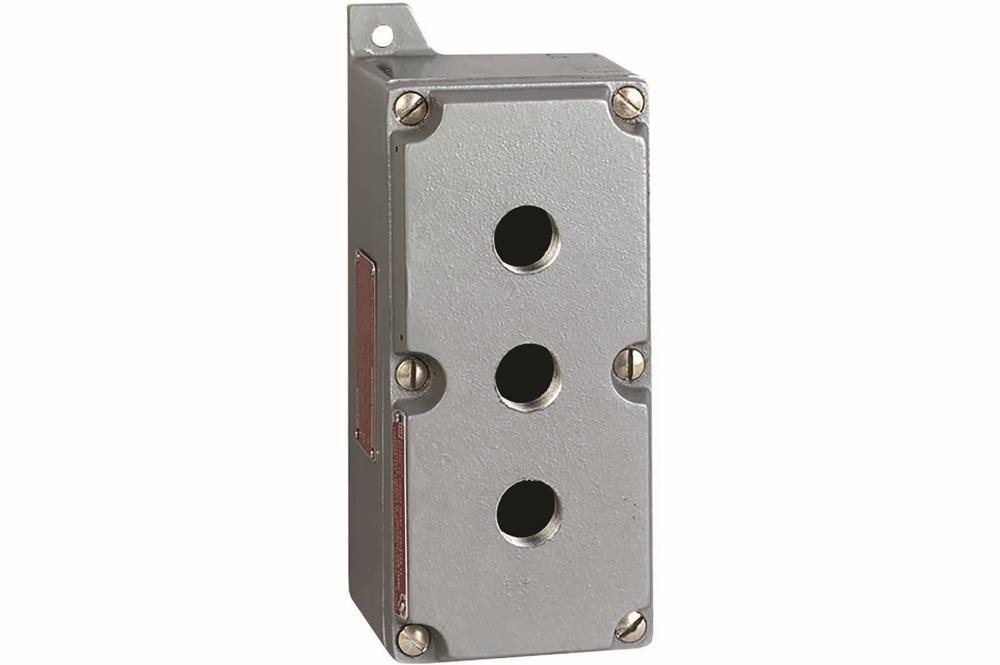

| The EPD-CSB-DB-C-3X from Larson Electronics is an Explosion Proof Device Box Enclosure that protects a wide range of compact equipment in Class I, II and III rated combustible facilities. This unit features three operator holes at the front of the enclosure. Constructed of copper-free aluminum, this NEMA-rated device can be mounted on walls using four mounting holes at the back of the enclosure. The EPD-CSB-DB-C-3X is a durable explosion proof enclosure designed for hazardous locations. This device box contains three operator holes for customer-provided equipment, such as lamps and switches. Contact blocks are rated at 600V AC maximum. The EPD-CSB-DB-C-3X is constructed of copper-free aluminum and contains an internal ground screw. The NEMA-rated control station is compatible with wall-mounting configurations, via four mounting holes located at the back of the enclosure. Customer can drill and tap conduit openings at the back and all four sides of the unit. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.  |
