Explosion Proof Device Box - Class I, II, III - Vertical, Double Gang - Feed Thru - (2) 3/4" NPT Hubs

LARSON ELECTRONICSSKU: PL3-EPD-DB-2GH-FT-0.75
filler

Price:
Sale price$730.99

Description

Specifications / Additional Information
EPD-DB-2GH-FT-0.75 Explosion Proof Device Box Features/Ratings
Listing: NRTL Listed for United States and Canada Class I, Division 1 & 2 Groups C & D
Dimensions: 10-3/8€ x 3-5/8€ x 2-1/2€ Class I, Zones 1 & 2 Groups IIB & IIA
Weight: 5 lbs Class II, Division 1 & 2 Groups E, F & G
Design: Double Gang, Vertical Class III, Divisions 1 & 2
Materials: Copper-free Aluminum Alloy NEMA 7 (C, D) 9 (E, F, G)
Mount: Wall
Configuration: Feed Through
Hub Size: 3/4" NPT
Hub Locations: One on Both Top and Bottom



' Product Overview '

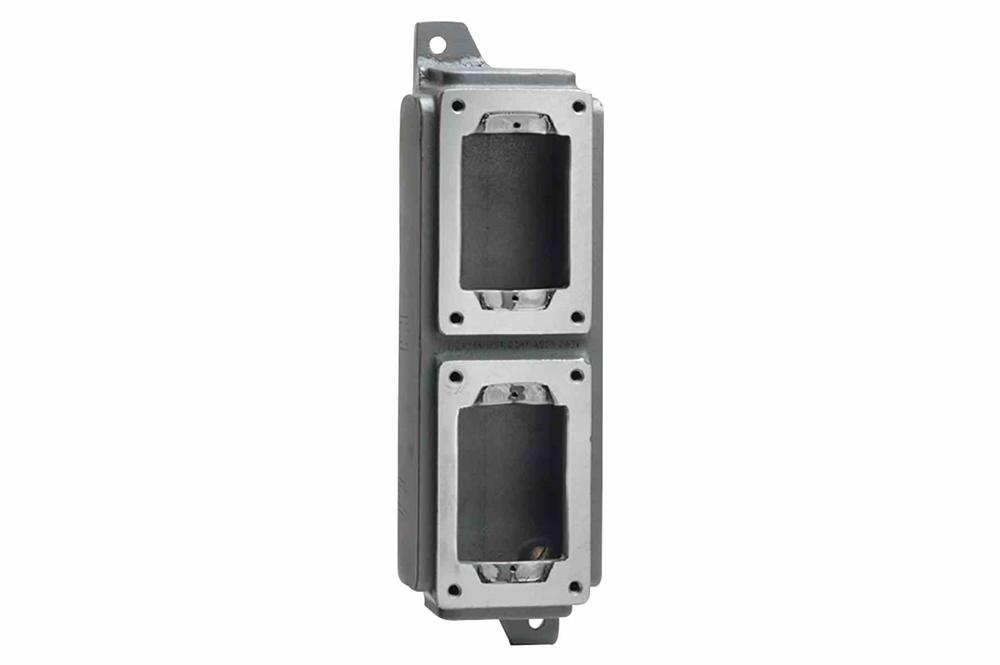

The Larson Electronics EPD-DB-2GH-FT-0.75 is an explosion proof device box that provides explosion proof protection for devices used in hazardous locations. This explosion proof box is Class I, Divisions 1 & 2, Groups C, D, Class I Zones 1 & 2, Groups IIB & IIA, Class II, Divisions 1 & 2 Groups E, F & G and Class III Divisions 1 & 2 rated for hazardous locations. The EPD-DB-2GH-FT-0.75 explosion proof device box offers protection from explosive hazards and is suitable for use in environments where combustible dusts and particulates may be present. The double-gang box is constructed of durable copper-free aluminum alloy and can be easily mounted via two mounting tabs found at two corners of the box. Equipped with a feed-thru configuration, there are two, 3/4" NPT hubs at the top and bottom of the unit. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
