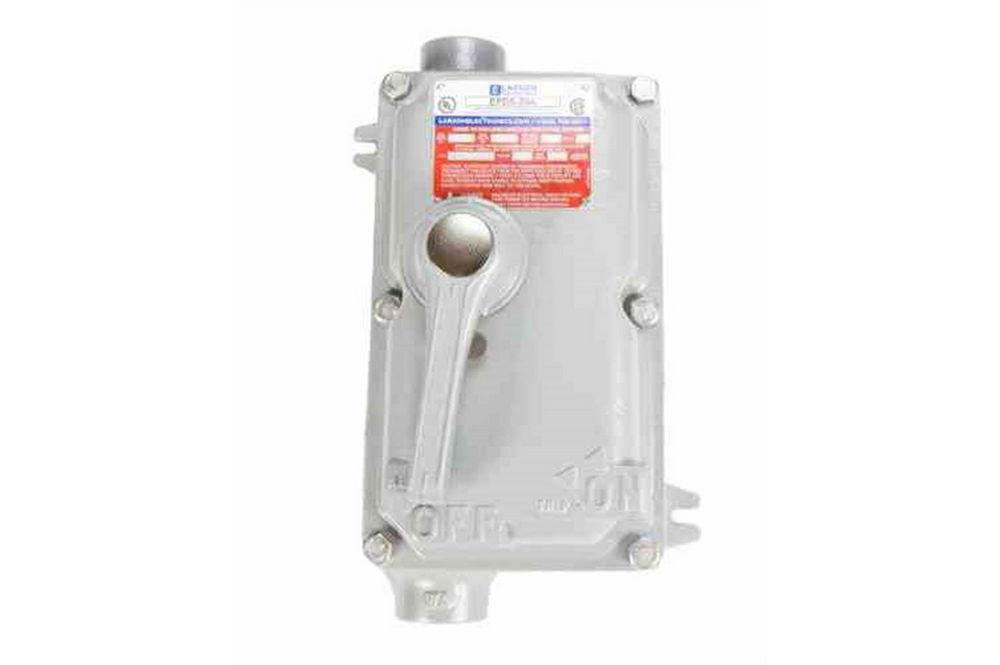

Explosion Proof Disconnect Switch & Breaker - C1D1&2 - C2D1&2 - 1-Pole - (2) 1" Cast Hubs

LARSON ELECTRONICSSKU: PL3-EPDS-30A
filler

Price:
Sale price$2,908.99

Description

Specifications / Additional Information
EPDS-30A Explosion Proof Disconnect Switch / Breaker Features/Ratings
Listing: United States & Canada Certified for NEC and CEC Standards
Dimensions: 6" L x 10.25" H x 6.88" D Class I Division 1 & 2 Groups C & D
Weight: 10.5 lbs Class I Zones 1 & 2 Groups llB & llA
Configuration: 1-Pole Class II Division 1 & 2 Groups E, F & G
Voltage: 120-277V AC or 12-125V DC Class III
Materials: Cast Aluminum NEMA 3, 3R, 4, 7 (C, D) 9 (E, F, G)
Hardware Materials: Stainless Steel
Mounting: Surface Mount
Hub Sizes: 1" NPT
Hub Qty: 2
Hub Locations: One on Both Top and Bottom
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The Larson Electronics EPDS-30A explosion proof disconnect switch/breaker provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure that provides overcurrent and short circuit protection for service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. This explosion proof disconnect switch and breaker features an EHD frame with a 1-Pole configuration. The EPDS-30A operates on a maximum of 277V AC or 125V DC and features two cast 1" conduit hubs; one on the top and one on the bottom. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPDS-30A explosion proof disconnect switch/breaker is made of cast aluminum and features a rectangular bolted cover design for uniform and attractive installations. Cover bolts on this unit are made from stainless steel. During operation, the external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is suitable for both indoor and outdoor locations, and is trip-free from the external handle mechanism. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
