Larson Explosion Proof 25' Extension Cord - Double Gang - 20 Amp Continuous Service - 25' 12/3 SOOW

Larson ElectronicsSKU: PL3-EPEXC-25-2X20A-12.3
filler

Price:
Sale price$4,807.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

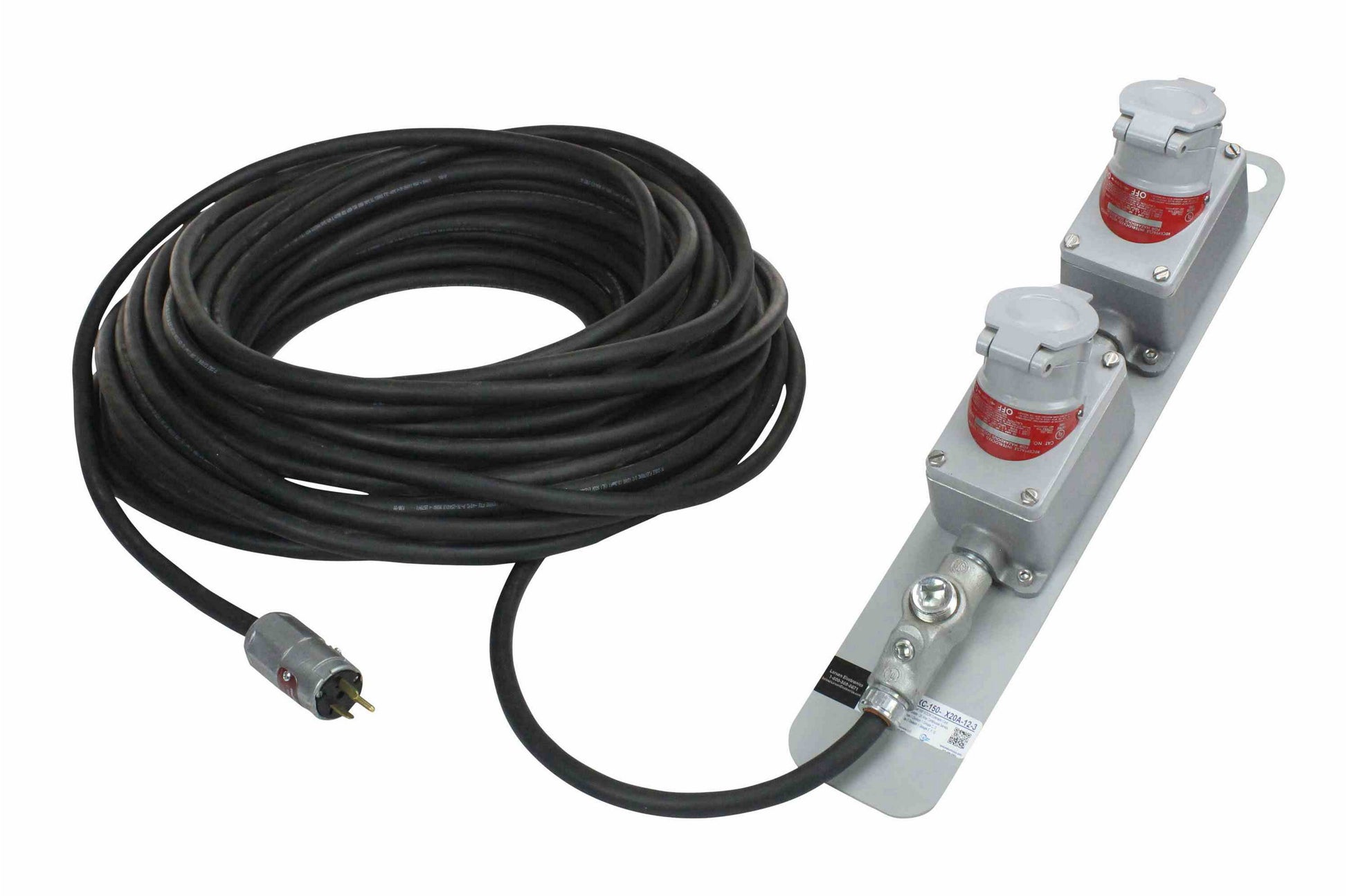

The Larson Electronics EPEXC-25-2X20A-12.3 Explosion Proof extension cord allows operators to safely extend the range of their explosion proof light or equipment cords within the boundaries of the hazardous work area. These units are constructed of 25 feet of 12/3 SOOW explosion proof cord rated at 20 amps of continuous service. The cord is chemical and abrasion resistant and comes with an explosion proof receptacle installed on one end and a general area use industrial cord cap installed on the other end.
The two 20 amp power receptacles are constructed of non sparking aluminum and finished with an epoxy powder coating while the housing is constructed of triple coated malleable iron for durability and added corrosion resistance. The internal receptacle plug contacts are constructed of brass and designed to maintain constant pressure along their entire length for superior connectivity. The plug receptacle is deeply recessed to prevent accidental contacts and designed for twist lock plug insertion to provide secure connections. A neoprene seal fitted inside the connector receptacle seals against the plug when inserted to provide positive sealing against water ingress. A spring loaded receptacle door provides an automatic weather-tight seal when the plug is removed. In standard installations within the hazardous location area, threaded rigid pipe is brought to the outlet and the outlet is affixes to a mounting surface.
The plugs on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. To ensure the highest safety, operators should make connections outside of the hazardous area.
These explosion proof extension cords are preconfigured in 125V (left) or 250V (right). Each unit is equipped with a 20 amp explosion proof cord cap and rated for 20 amps of continual service. The outlets are a twistlock design. The deep recessed contacts in the receptacle housing prevents ordinary and wet location plugs from activating the explosion proof outlets.
125V 5-20P Explosion Proof Straight Blade Plug
250V 6-20P Explosion Proof Straight Blade Plug
125V 5-15/20 Explosion Proof Outlet
Outlet accepts 15A and 20A Explosion Proof Plugs
Outlet accepts 6-15P and 6-20P Explosion Proof Plugs
Inter-Compatibility:
The included explosion proof plug and receptacle are cross-interchangeable with Crouse Hind™ part# ENPENP5151 plugs and receptacles and Hubble-Killiark part# UGP-15231 ACCEPTOR plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness.
Wiring and Plug:
This explosion proof extension cord is equipped with 25 foot of 12/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include explosion proof 5-20P 20 amp straight blade plug for 110-125V explosion proof outlets or explosion proof 6-20P 20 amp straight blade plug for 220-250V explosion proof outlets.
Please note: This is a stock configuration. Other plugs and outlets are available, including pin and sleeve style. Please send requirements to
Contact info@purilite.ca
if this unit does not meets your Specifications.
Suggested Applications:
Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.

Specifications
Amp Rating: 20 amp Continuous Service

Cord Length: 25 Feet
Configuration: 2 Pole 3 Wire2 Pole 3 Wire
Receptacle Specs:
Configuration: 2 Pole 3 Wire2 Pole 3 Wire
Voltage: 125V or 250V
Materials:  Copper Free Aluminum
Mating Plugs: ****EPP-15A, EPP-20-A****
Finish: Epoxy Powder Coat
Cord Cap: 5-20P, 6-20P - Explosion Proof
