Larson Explosion Proof Extension Cord - 50' 12/3 SOOW Cord w/ EP Plug and Outlet - Inline Switch

Larson ElectronicsSKU: PL3-EPEXC-50-12.3-ISL
filler

Price:
Sale price$4,303.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

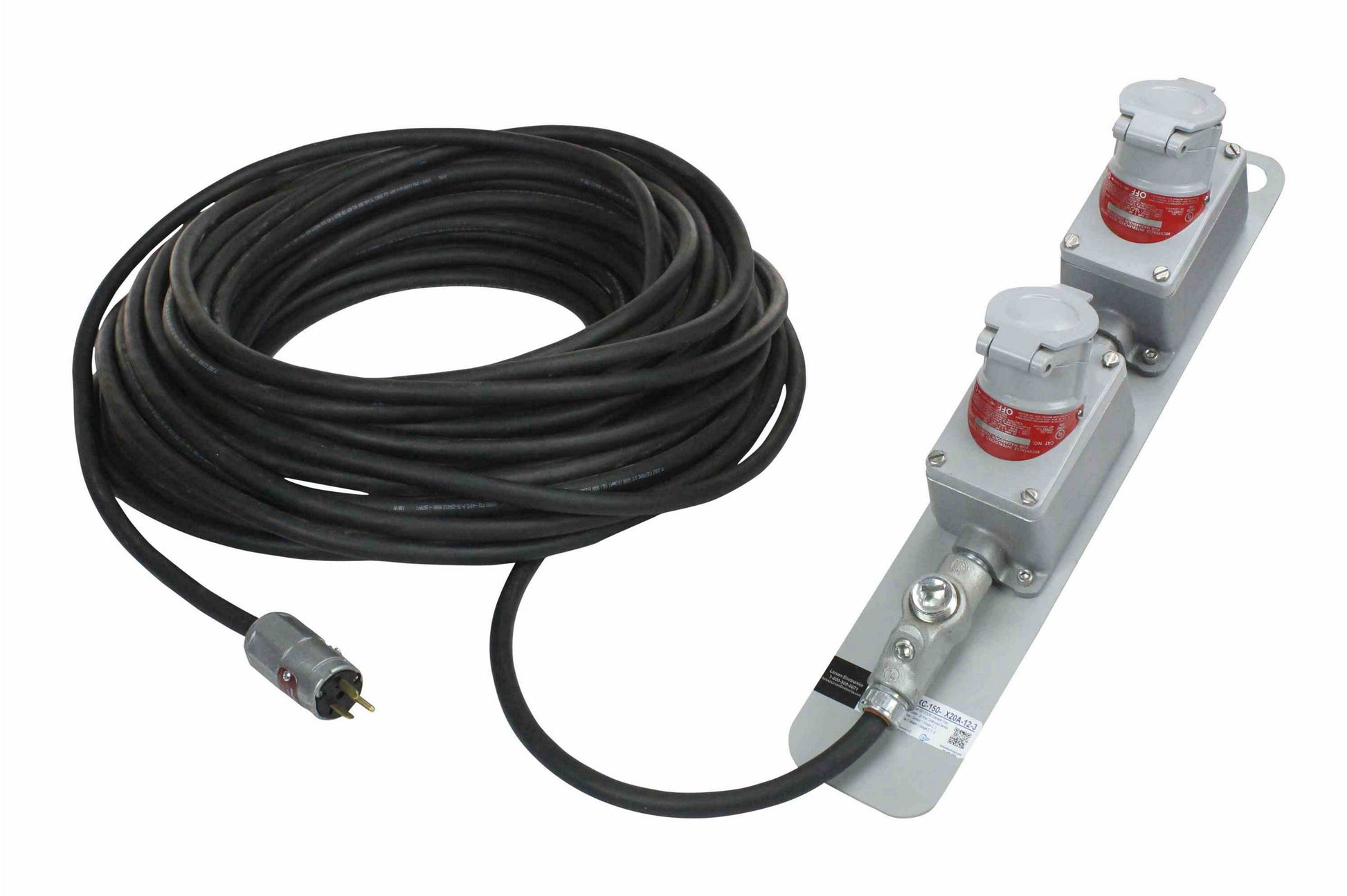

The Larson Electronics EPEXC-50-12.3-ISL 50` Explosion Proof extension cord allows operators to safely extend the range of their explosion proof light or equipment cords beyond the boundaries of the hazardous work area. This unit is constructed of 50 feet of 12/3 SOOW cable and is rated at 20 amps of continuous service.
The cord is chemical and abrasion resistant and comes with an explosion proof, 20 amp receptacle, and inline on/off switch installed on one end, and an explosion proof 20 amp plug installed on the other end. We also offer an extra matching 20 amp pin and sleeve plug for operators to attach to their equipment which allows them to avoid any issues with plug/receptacle-equipment compatibility with this cord. The plug on this cord can only be used in T style outlets and will not work in standard electrical outlets.
We offer this unit in a 125V or 250V configuration. Each receptacle`s contacts are deep recessed to avoid accidental contact and will accept standard non explosion proof plugs that are NEMA 5-20R, or 6-20R compatible although explosion proof plugs must be used to preserve explosion proof approval in hazardous environments. Ordinary location plugs will NOT activate this cord`s explosion proof receptacles.
These explosion proof extension cords are preconfigured in 125V (left) or 250V (right). Each unit is equipped with a 20 amp explosion proof cord cap and rated for 20 amps of continual service. The outlets are a twistlock design. The deep recessed contacts in the receptacle housing prevents ordinary and wet location plugs from activating the explosion proof outlets.
125V 5-20P Explosion Proof Straight Blade Plug
250V 6-20P Explosion Proof Straight Blade Plug
125V 5-15/20 Explosion Proof Outlet
Outlet accepts 15A and 20A Explosion Proof Plugs
Outlet accepts 6-15P and 6-20P Explosion Proof Plugs
The plugs on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. Explosion proof lights, blowers and fans typically do not contain their own on and off switches and are plugged in some distance from the hazardous work area, forcing operators to walk some distance out of the work area to turn this equipment on or off. This unit includes an inline switch which allows operators to leave the cords plugged in and switch equipment on or off within the hazardous work area. This switch also allows operators to safely connect and disconnect equipment downline of the switch simply by turning off the switch before changing connections. To remove all risk and retain the highest level of protection, operators should make all connections outside of the hazardous work area.
Inter-Compatibility:
These cords use T style plugs and will work with non-explosion proof standard receptacles and plugs (NEMA 5-15R, 5-20R, or 6-20R) but will not work with standard 120V wall outlets. The included plugs and receptacle are cross-interchangeable with Crouse Hind™ part# ENP5201 plugs and receptacles and Hubble-Killiark part# UGP-20231 ACCEPTOR plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness.
Suggested Applications:
Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Grinders, Wet areas or Locations Where Combustible Dust is Present.

Specifications
Amp Rating: 20 amp Continuous Service

Dimensions: Cord length-50 Feet  Plug-2.78"-L 1.75"-W 3"-W X 5.69"-D X6.13"-H 3"-W X 4.69"-D X 5.38"-H
Configuration: 2 Pole 3 Wire 2 Pole 3 Wire Front Mounted Switch
Suitable Plug Cable Diameter: .538” to .639”

Wiring: 50` 12/3 SOOW Cable Terminated w/ (1) 20 Amp Receptacle and In-Line Switch - (1) 5-15P Explosion Proof Straight Blade Plug
Voltage: 125 Volts or 250 Volts
Receptacle Specs: 1 Inline Receptacle
Configuration: 2 Pole 3 Wire 2 Pole 3 Wire Front Mounted Switch

Materials: Copper Free Aluminum Malleable Iron - Copper Free Aluminum
Dimensions: Cord length-50 Feet  Plug-2.78"-L 1.75"-W 3"-W X 5.69"-D X6.13"-H 3"-W X 4.69"-D X 5.38"-H
Mating Plugs: ****EPP-15A, EPP-20-A****
Finish: Epoxy Powder Coat Triple-Coat—(1) zinc electroplate, (2) chromate, (3) epoxy powder coat

Switch Specs:
Configuration: 2 Pole 3 Wire 2 Pole 3 Wire Front Mounted Switch

Materials: Copper Free Aluminum Malleable Iron - Copper Free Aluminum
Dimensions: Cord length-50 Feet  Plug-2.78"-L 1.75"-W 3"-W X 5.69"-D X6.13"-H 3"-W X 4.69"-D X 5.38"-H
Finish: Epoxy Powder Coat Triple-Coat—(1) zinc electroplate, (2) chromate, (3) epoxy powder coat
