Explosion Proof 6 Foot Extension Cord with Inline Switch - 15 amp continuous service

LARSON ELECTRONICSSKU: PL3-EPEXC-6-ILS
filler

Price:
Sale price$2,237.99

Description

Specifications / Additional Information
EPEXC-6-ILS Explosion Proof Extension Cord Plug / Outlet Certifications
Amp Rating:15 amp Continuous Service Class I Div 1 Groups C and D
Dimensions: Cord length-6 Feet Plug-2.78"-L 1.75"-W Class II Div 1 Groups F and G
Configuration: 2 Pole 3 Wire
Suitable Plug Cable Diameter: .538” to .639”
Wiring: 6` 14/3 SOOW Cable Terminated w/ (1) 20 Amp Receptacle and In-Line Switch - (1) 5-15P Explosion Proof Straight Blade Plug
Voltage: 125 Volts
Receptacle Specs:1 In-Line Receptacle
Configuration: 2 Pole 3 Wire
Materials: Copper Free Aluminum
Dimensions: 3"-W X 5.69"-D X6.13"-H
Mating Plugs: ****, ****
Finish: Epoxy Powder Coat
Switch Specs:
Configuration: Front Mounted Switch Toll Free: 1-800-369-6671
Materials: Malleable Iron - Copper Free Aluminum Intl: 1-214-616-6180
Dimensions: 3"-W X 4.69"-D X 5.38"-H Fax: 1-903-498-3364
Finish: Triple-Coat—(1) zinc electroplate, (2) chromate, (3) epoxy powder coat E-mail:
' Product Overview '

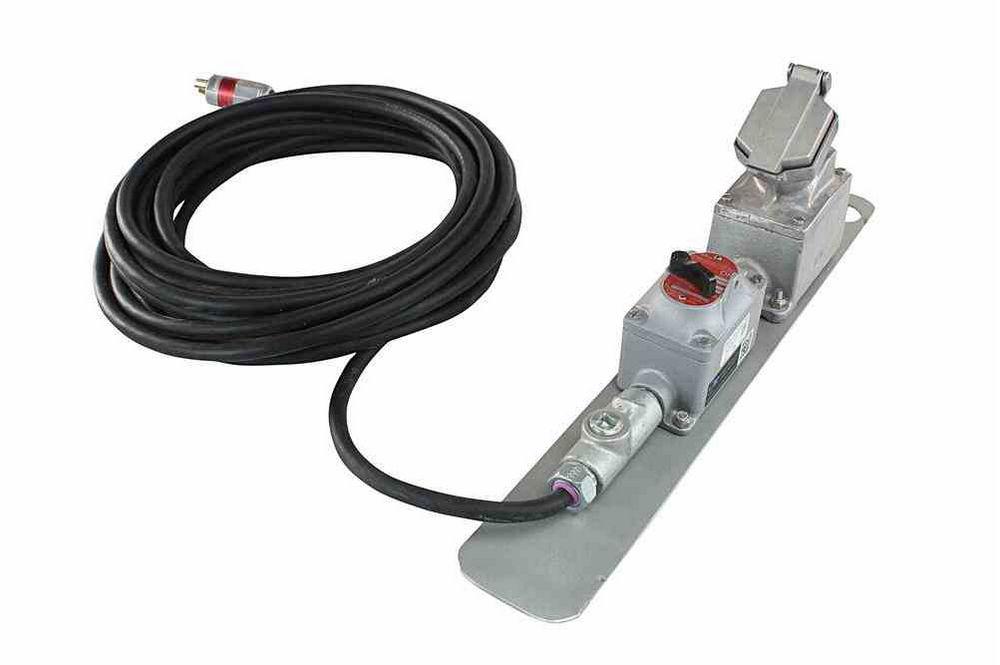

Made in the USA The Larson Electronics EPEXC-6-ILS Explosion Proof extension cord with inline switch allows operators to safely extend the range of their explosion proof light or equipment cords beyond the boundaries of the hazardous work area. These units are constructed of 6 feet of 14/3 SOOW explosion proof cord and are rated at 15 amps of continuous service. The cord is chemical and abrasion resistant and comes with a Class I Division 1 explosion proof receptacle and switch installed on one end and a Class I Division 1 explosion proof plug installed on the other end. We also include an extra matching plug for operators to attach to their equipment which allows them to avoid any issues with plug and receptacle equipment compatibility with this cord.
Click Photos to Enlarge
5-15P Explosion Proof Straight Blade Plug 125V 5-15/20 Explosion Proof Outlet Outlet accepts 5-15P and 5-20P Explosion Proof Plugs
The plugs on these units are of a twist lock design. In order for a secure and working connection to take place, the operator must insert the plug and twist until it locks into place. This ensures a safe seal is made before any sparks from electrical contact can take place. Explosion proof lights, blowers and fans typically do not contain their own on and off switches and are plugged in some distance from the hazardous work area, forcing operators to walk some distance out of the work area to turn this equipment on or off. This unit includes an inline switch which allows operators to leave the cords plugged in and switch equipment on or off within the hazardous work area. This switch also allows operators to safely connect and disconnect equipment downline of the switch simply by turning off the switch before changing connections. To remove all risk and retain the highest level of protection, operators should make all connections outside of the hazardous work area. Inter-Compatibility: These cords will work with non-explosion proof standard receptacles (NEMA 5-15R, 5-20R, or 6-20R). The included plugs and receptacle are cross-interchangeable with Crouse Hind™ part# ENPENP5151 plugs and receptacles and Hubble-Killiark part# UGP-15231 ACCEPTOR® plugs and receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure cross compatibility correctness. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Explosion Proof Light Fixtures, Wet areas or Locations Where Combustible Dust is Present.
