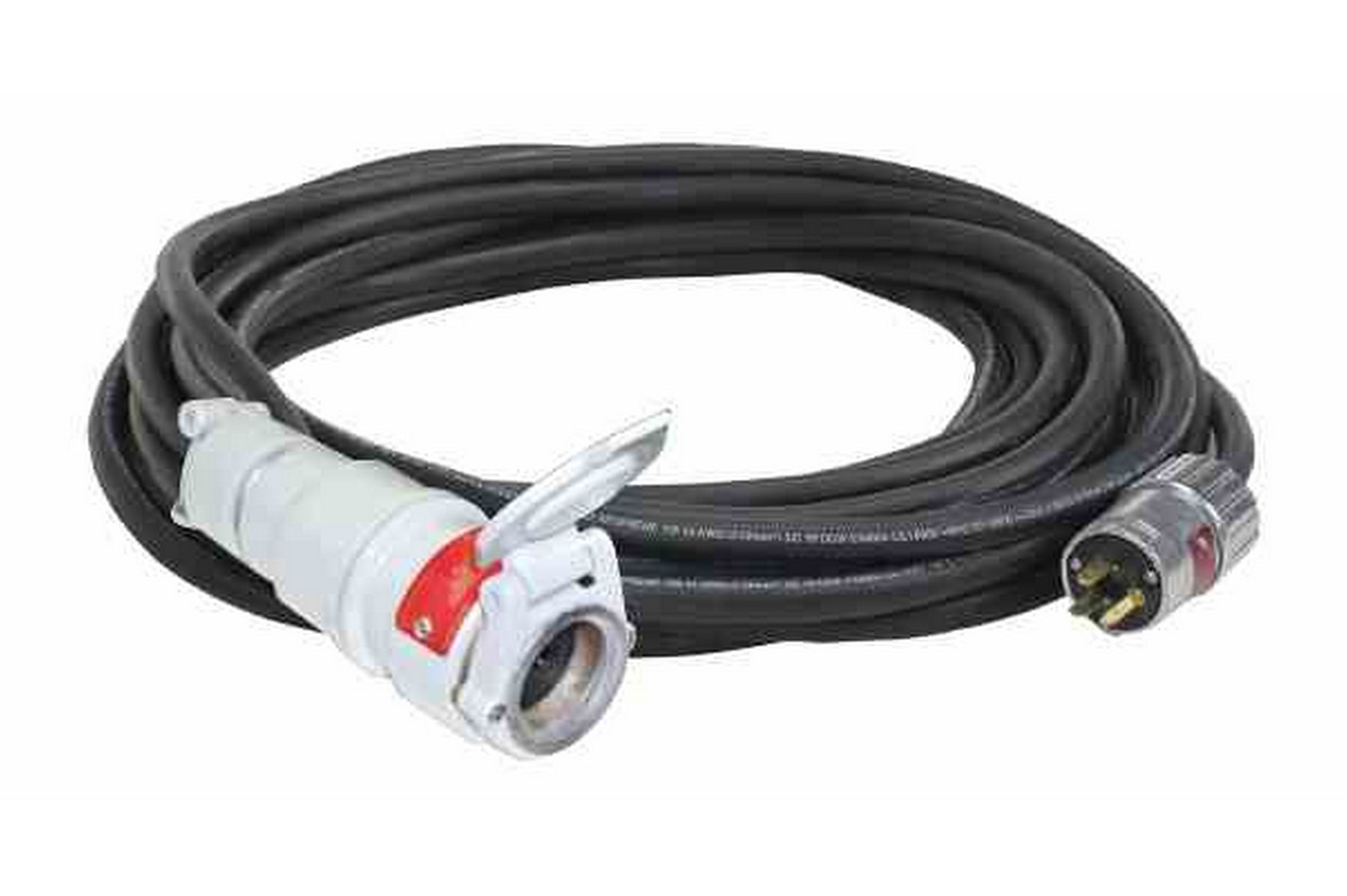

Larson Portable Explosion Proof Receptacle - Class I, Div. I - 20 Amps - Inline GFCI - 40' 12/3 SOOW

Larson ElectronicsSKU: PL3-EPEXC-P20A-GFCI-40

Sale price$5,371.99


PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The Larson Electronics EPEXC-P20A-GFCI-40 explosion proof power outlet provides ground fault protection for portable electrical devices and equipment in locations where equipment is susceptible to wet and corrosive environments.
This 20 amp rated Portable Explosion Proof Receptacle provides required ground fault protection and is deal for operators seeking a high quality, wet area rated power receptacle suitable for use in industrial and manufacturing applications. This unit`s power receptacle is constructed of copper free aluminum and meets all UL and CSA requirements for ground protection. The units receptacle is factory sealed and any arcing is safely contained with the interior of the receptacle. The receptacle contacts are deep recessed to avoid accidental contact and will accept standard non explosion proof plugs that are NEMA 5-20R, or 6-20R compatible although explosion proof plugs must be used to preserve explosion proof approval in hazardous environments. Ordinary location plugs will NOT activate this explosion proof receptacle. The receptacle is finished with an epoxy powder coat. This unit is designed to withstand wet and corrosive conditions such as those found in docks and shipyards and comes with a spring loaded receptacle door to prevent ingress of water and contaminants when the unit is not in use.
The EPEXC-P20A-GFCI-40 ground fault protection power receptacle is constructed of non sparking aluminum and finished with an epoxy powder coating and provides open neutral protection to maximize safety for plant personnel. The internal receptacle plug contacts are constructed of brass and designed to maintain constant pressure along their entire length for superior connectivity. The 20 amp plug receptacle is deeply recessed to prevent accidental contacts and designed for twist lock plug insertion to provide secure connections. A neoprene seal fitted inside the connector receptacle seals against the plug when inserted to provide positive sealing against water ingress. A spring loaded receptacle door provides an automatic weather-tight seal when the plug is removed.
An LED pilot light provides verification of power to the receptacle and smooth operating test and reset buttons allow easy verification of proper operation. This portable receptacle includes 40 foot of 12/3 SOOW (chemical, abrasion resistant cord for wet/outdoor use) cord, a 20 amp Class I Division I plug and a convenient carrying/hanging handle. This outlet is a mate for the Larson Electronics
explosion proof plugs and is compatible with all the Larson Electronics explosion proof lights we make with an explosion proof plug.
Circuit breaking protection:
Provides required portable ground fault protection and meets all UL and CSA requirements for ground fault protection in hazardous locations.
These units are compatible with Crouse Hind™ plugs under catalogue number "ENP5151" and Hubble-Killark Acceptor plugs under catalogue number "UGP-20231,UGP-20232." Due to possible manufacturer changes we cannot guarantee interchangability although we have made every effort to ensure cross compatibility correctness.
Suggested Applications:
Areas Where Ignitable Vapors Or Gases May Be Present, Manufacturing, Industrial, Commercial, Docks, Shipyards, Shipping Ports and other similar ship to shore applications as well as any application requiring a wet area suitable and highly durable source of secure power connection.
1. Specially designed receptacle contains arcs within the unit.
Brass contacts provide constant pressure and superior conductivity.
Neoprene seal compressed by plug prevents water ingress into receptacle when in use.
6. Rated to handle loads up to 20 Amps..

Unit Dimensions: 6.25"-W X 5.92"-D .12.90"-L
Receptacle Current Rating: 20 Amp
Configuration: 3 Pole 2 Wire
Number of Poles: 3
Conduit Openings: N/A
Mating Plugs: ****EPP-15A, EPP-20-A****
Grounding: Open Neutral Protection
Unit Materials:   Receptacle- Copper Free Aluminum (4/10 of 1% max.)
Finish: Epoxy Powder Coat
Insulating Blocks: Fiber Glass Reinforced Polyester
