48" Explosion Proof Fan - 7000 CFM - 1.5 HP - 115/230V 1-phase - Class I, Group D/Class II, Groups F&G

LARSON ELECTRONICSSKU: PL3-EPF-HPSM-48-1.5HP-1P
filler

Price:
Sale price$24,362.00

Description

Specifications / Additional Information
EPF-HPSM-48-1.5HP-1P Explosion Proof High Volume Ventilation Fan Ratings/Features
Listing: NRTL Listed for United States Class I, Divisions 1 & 2, Group D
Type: High Pressure High Volume Ventilation Fan Class II, Divisions 1 & 2, Groups F & G
Propeller Dimensions: 48" Diameter Spark-Resistant Propeller
Propeller Material: Spark-Resistant Cast Aluminum Up To 7000 CFM Air Movement
Weight: - Made in the USA
Voltage: 115/230V, 1-phase
Motor: 1.5 HP Fully Enclosed Explosion Proof
Rotations Per Minutes (RPM): -
Peak CFM (@ 0" SP): 7000 Toll Free: 1-800-369-6671
Max Sound Levels @ 5`: - Intl: 1-214-616-6180
Wiring: Hard-Wire
Mounting: Permanent Mount
' Product Overview '

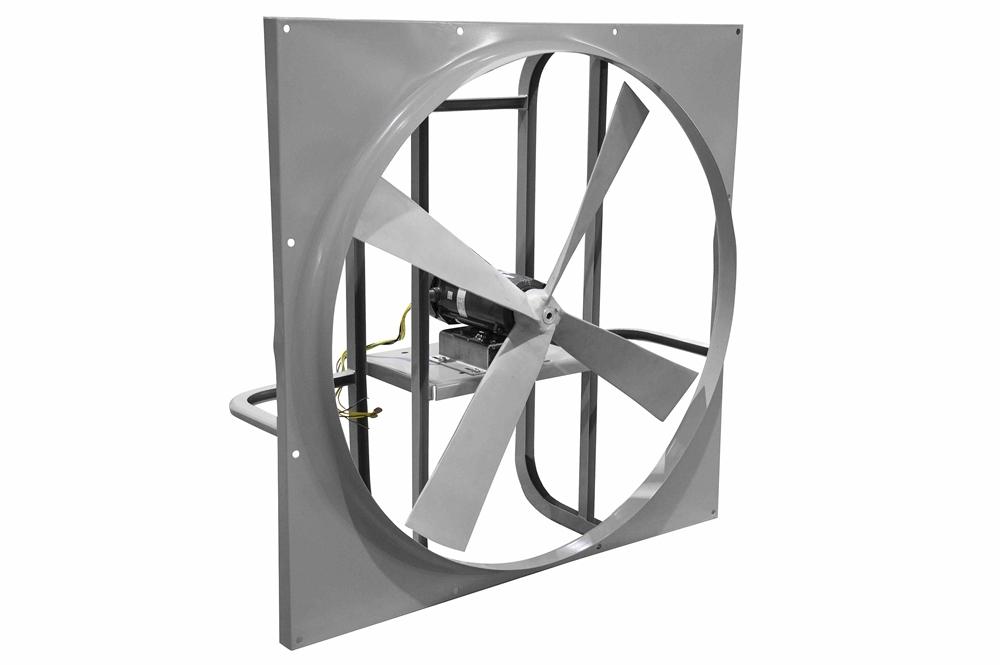

Made in the USA The EPF-HPSM-48-1.5HP-1P from Larson Electronics is a high pressure, high volume explosion proof ventilation fan that operates on 115/230V AC voltage. This high volume explosion proof ventilation fan features a 48" diameter spark resistant cast aluminum blade that moves air at a rate of up to 7,000 cubic feet per minute (CFM) for superior ventilation and air movement. The EPF-HPSM-48-1.5HP-1P is powered by a fully enclosed and explosion proof 1.5 horsepower motor. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS PRODUCT* The EPF-HPSM-48-1.5HP-1P explosion proof fan is rated for Class I, Group D and Class II, Groups F & G hazardous environments. The 48" diameter propeller on this explosion proof high pressure ventilation fan is constructed from cast aluminum to resist sparking further increasing the safety of the hazardous environment in which the fan is being utilized. This single-phase explosion proof ventilation fan has a 1.5 horsepower fully enclosed motor and offers 7,000 CFM during use. Voltage: The EPF-HPSM-48-1.5HP-1P explosion proof ventilation fan operates on single-phase 115/230V AC. Wiring: The EPF-HPSM-48-1.5HP-1P is a hard-wired ventilation fan that should be installed according to national, state and local electrical and mechanical codes. Applications: Class I Group D and Class II Groups F & G hazardous areas that require ventilation including but not limited to the following: clean rooms, marijuana extraction rooms, laboratory hoods, oil refineries, grain mills, chemical plants, welding shops, chemical storage areas and battery changing areas.
