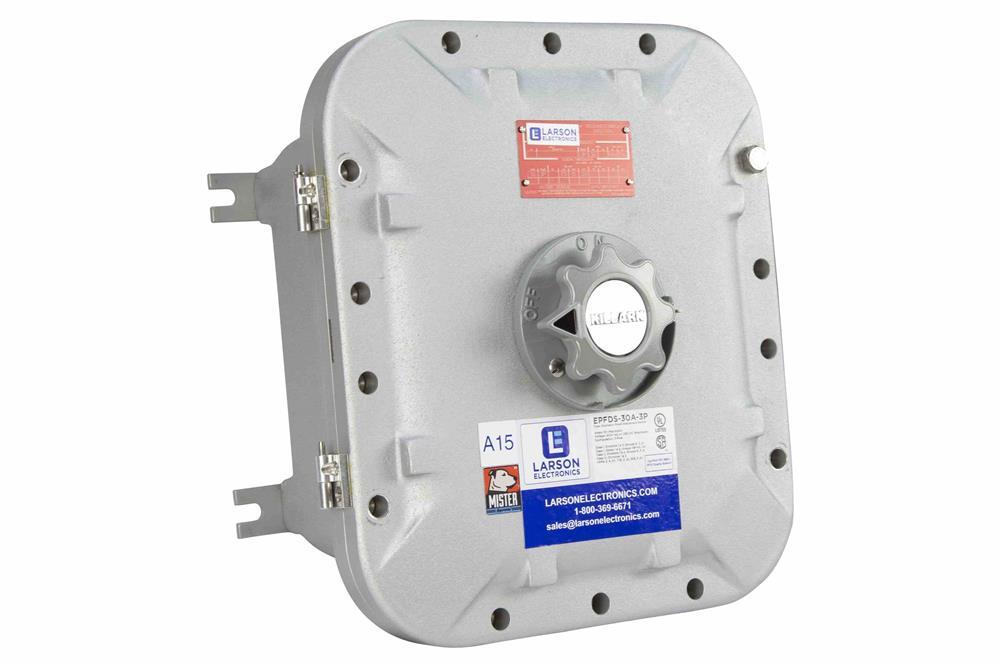

12A Explosion Proof Fused Disconnect- Class I,II,III - Fast Acting Fuse - (3) 12A 600V (4) Cast Hubs

LARSON ELECTRONICSSKU: PL3-EPFDS-12A-3P-3X12A.600V-FA
filler

Price:
Sale price$6,223.99

Description

Specifications / Additional Information
EPFSD-12A-3P-3X12A.600V-FA Explosion Proof Disconnect Switch / Breaker Features/Ratings
Unit Type: Explosion Proof Disconnect Switch (Fused) Class I, Division 1&2 Groups C,D
Dimensions: - Class I, Zones 1&2 Groups llB,llA
Weight: 10.5 lbs Class II, Division 1&2 Groups E,F,G
Voltage: 600V AC or 125V DC (Maximum) Class III
Configuration: 3-Pole NEMA 7 (C,D) 9 (E,F,G)
Amps: 12A
Fuse Type: Fast Acting Fuse
Fuses: (3) 12A 3P [600V]
Materials: Cast Aluminum
Hardware Materials: Stainless Steel
Mounting: Surface Mount Toll Free: 1-800-369-6671
Hub Qty: 4 Intl: 1-214-616-6180
Hub Sizes/Location: (2) 2" NPT (North + South Side), (2) 0.5" NPT (North + South Side)
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPFSD-12A-3P-3X12A.600V-FA Explosion Proof Fused Disconnect is designed for use in Class I, II and III environments. Equipped with fast-acting fuses, this 3-pole unit contains three 12-amp 600V fuses and four NPT hubs. The explosion proof disconnect offers instant response to surges and electrical spikes, making it ideal for resistive circuits in flammable work sites. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFSD-12A-3P-3X12A.600V-FA ensures active protection of electrical systems in combustible facilities. Designed to operate on 600V AC or 125V DC (maximum), this fused unit contains three 12-amp 3-pole 600V fast-acting fuses. These explosion proof disconnects are sensitive to electrical pulses, which provide peace of mind for operators working with sensitive equipment, such as laptops and electronics. Choosing between a time-delay fuse and a fast-acting fuse highly depends on the type of system or device requiring protection, as both protective methods are effective (one is not superior over the other). The explosion proof disconnect switch/breaker is made of cast aluminum and features a rectangular bolted cover design for uniform and attractive installations. The cover bolts are made from stainless steel. The external on/off lever can be locked into the "off" position with room for up to three padlocks for superior security. The internal circuit breaker handle mechanism is a sliding plate type mounted to the cover. The circuit breaker is trip free of the external handle mechanism. Hubs: For completing electrical connections, four NPT hubs are provided on the enclosure. Two cast 2" conduit hubs are located at the north side and south side of the unit (one 2" NPT hub per side); and two cast 0.5" NPT hubs can be found at the north side and south side of the disconnect (one 0.5" NPT hub per side). Mounting: Operators can mount the explosion proof disconnect on flat surfaces. Applications: Sensitive equipment, electronics, LED lighting systems, computers, petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
