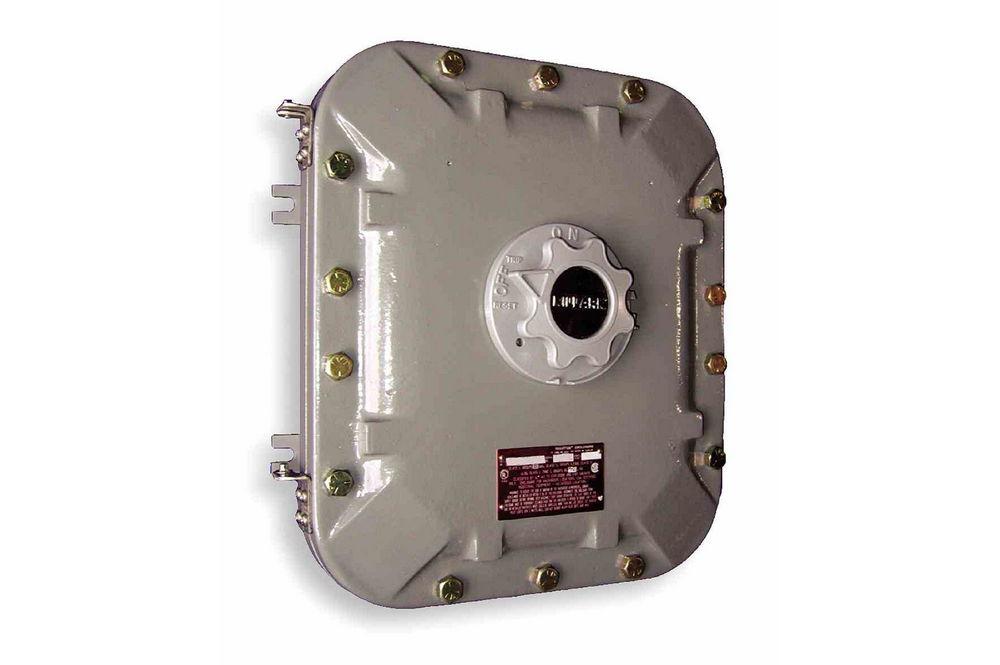

30A Explosion Proof Fused Disconnect - Fast Acting Fuse - (3) 30A 250V - (2) 1" NPT Hubs - N4X

LARSON ELECTRONICSSKU: PL3-EPFDS-V2-30A-3P-3X30A.250V-FA
filler

Price:
Sale price$12,921.99

Description

Specifications / Additional Information
EPFDS-V2-30A-3P-3X30A.250V-FA Explosion Proof Disconnect Switch / Breaker Ratings
Unit Type: Explosion Proof Disconnect Switch (Fused) Class I, Divisions 1&2 Groups B,C,D
Dimensions: 8" x 10" x 6" Class I, Zones 1&2 Groups IIB+H2,IIA
Weight: - Class II, Divisions 1&2 Groups E,F,G
Rated Voltage: 250V AC Class III
Configuration: 3-Pole Type 4, 4X
Fuse Type: Fast Acting Fuse Ex II 2 G Ex db IIB+H2 T6
Fuses: (3) 30A 3P [250V] Ex II 2 D Ex tb IIIC T85°C IP66
Cover Type: Flat Aluminum Plate Ta -50°C to + 70°C
Materials: Copper-free Aluminum, Stainless Steel (External Hardware) ATEX & IEC Ex
Mounting: Surface Mount via Mounting Pan
Hub Sizes: (2) 1" NPT
Conduit: Operator Provided
Color: Gray Toll Free: 1-800-369-6671
  Intl: 1-214-616-6180


*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPFDS-V2-30A-3P-3X30A.250V-FA Explosion Proof Fused Disconnect is designed for use in Class I, II and III environments. Equipped with fast-acting fuses, this 3-pole unit contains three, 30-amp 250V fuses and two, 1" NPT hubs. The explosion proof disconnect offers instant response to surges and electrical spikes, making it ideal for resistive circuits in flammable work sites. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPFDS-V2-30A-3P-3X30A.250V-FA ensures active protection of electrical systems in combustible facilities. This fused unit contains three, 30-amp 3-pole 250V fast-acting fuses. These explosion proof disconnects are sensitive to electrical pulses, which provide peace of mind for operators working with sensitive equipment, such as laptops and electronics. Choosing between a time-delay fuse and a fast-acting fuse highly depends on the type of system or device requiring protection, as both protective methods are effective (one is not superior over the other). This explosion proof disconnect switch/breaker is made of copper-free aluminum with stainless steel external hardware and features a flat aluminum plate (bolted) cover for uniform and attractive installations. Hubs: For completing electrical connections, two 1" NPT hubs are provided on the enclosure. Mounting: Operators can mount the explosion proof disconnect on flat surfaces, which is facilitated by a mounting pan. Applications: Sensitive equipment, electronics, LED lighting systems, computers, petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
