|EPH-FH-CD-T3B-3KW-240V.1P Hazardous Location Fan||Ratings/Features|
|Unit Type: Portable Hazardous Location Forced Fan Heater||Class I, Div 1 & 2 Groups C, D|
|Dimensions: 22.5" x 17.75" x 21" (Fan w/o Cart)||Class II, Div 1 & 2 Groups E, F, G|
|Weight: 260 lbs||NEMA 7|
|Motor Voltage: 240V AC||Manual Reset|
|Control Voltage: 24V||Skid/cart Mount|
|Phase: 1PH||Anti-static Wheels|
|Watts: 3,000W||Forklift Pockets|
|Air Throw: 24`|
|Standard Components: Disconnect Switch, Pilot Light, Thermostat, Male/female Plug|
|Temperature Rating/Rise: T3B/16.5°F|
|Materials: Aluminum, Stainless Steel|
|Finish: Powder Coated Epoxy Paint Finish|
|Mount: Skid/cart Mount w/ Forklift Pockets, Anti-static Wheels|
|Cord Cap: Pin/sleeve|

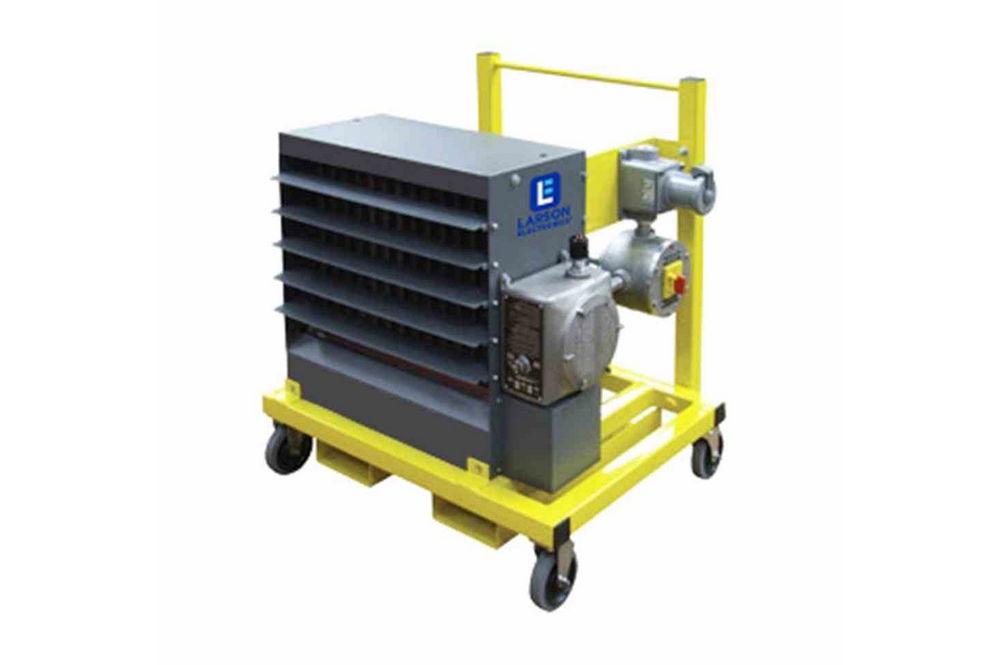

|The Larson Electronics EPH-FH-CD-T3B-3KW-240V.1P Portable Hazardous Location Fan provides active heating in hazardous locations and cold-temperature work sites. This 3,000-watt forced fan heater is compatible with 240V single phase and features an airflow rate of 580 CFM (24` air throw). Operators can transport and deploy the portable unit around the facility using a skid/cart mount. Standard components include the following: disconnect switch, pilot light, thermostat and male/female plug. The EPH-FH-CD-T3B-3KW-240V.1P is suitable for maintaining adequate temperatures in Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 work sites. This 3,000-watt portable fan forced heater operates on 240V single phase with 24V control voltage. The 14.8-amp rated unit supports an airflow rate of 580 CFM, capable of throwing air as far as 24 feet. This T3B temperature-rated fan features guard shields to protect internal, moving parts. This hazardous location fan forced heater is constructed of 14 gauge steel and aluminum with stainless steel/aluminum pressure relief valves. Versatile louvers allow operators to control the direction of air leaving the fan in real-time. For protection in indoor and outdoor work sites, the unit is housed in a NEMA 7 enclosure. This portable forced fan heater comes with the following standard components: disconnect switch, pilot light, thermostat and male/female plug. Mounting: The EPH-FH-CD-T3B-3KW-240V.1P is mounted on a skid/cart for on-the-go applications. This component features forklift pockets for seamless lifting and transportation. To prevent the release of static discharge, the cart is equipped with anti-static wheels. A pin/sleeve cord cap is available for operators to complete electrical connections when in use. Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more.|
