Unit Type: Hazardous Location Forced Fan Type Heater
Class I, Div 1 & 2 Groups C, D
Dimensions: 22.5" x 17.75" x 21"
Class II, Div 1 & 2 Groups E, F, G
Weight: 193 lbs
6,000 Cycles of Service
Motor Voltage: 480V AC
Control Voltage: 24V
Air Throw: 40`
Temperature Rating/Rise: T3A/16.5°F
Materials: Aluminum, Stainless Steel
Finish: Powder Coated Epoxy Paint Finish
Recommended Mounting Height: 10`

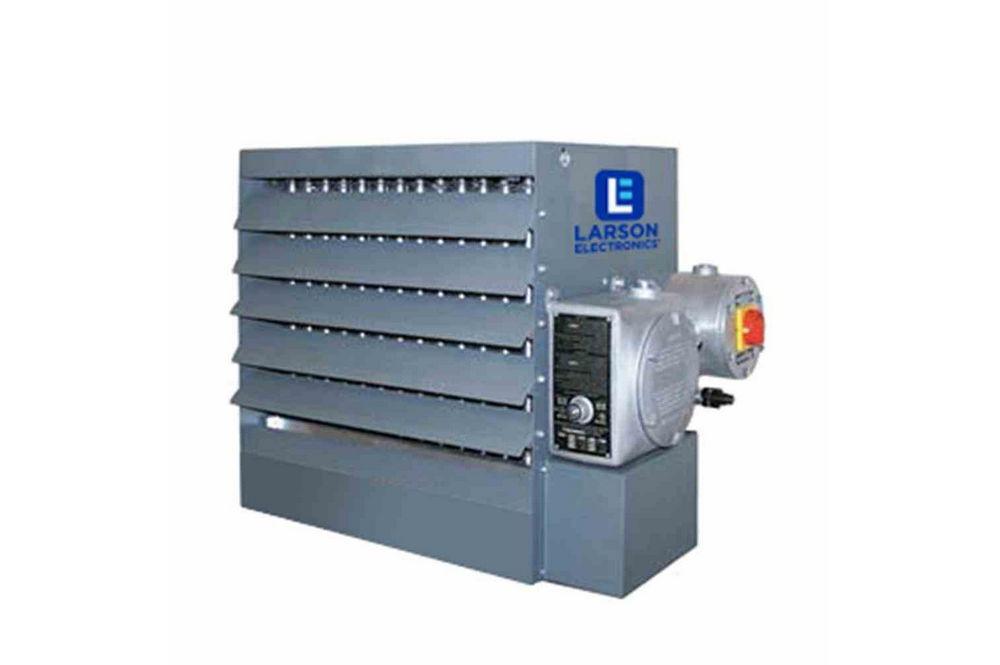

The Larson Electronics EPH-FH-T3B-10KW-480.3P Hazardous Location Fan provides active heating in hazardous locations and cold-temperature work sites. This 10,000-watt forced fan heater is compatible with 480V three phase and features an airflow rate of 1500 CFM (40` air throw).
The EPH-FH-T3B-10KW-480.3P is suitable for maintaining adequate temperatures in Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 work sites. This 10,000-watt fan forced heater operates on 480V three phase with 24V control voltage. The 12.7-amp rated unit supports an airflow rate of 1500 CFM, capable of throwing air as far as 40 feet. This T3A temperature-rated fan features guard shields to protect internal, moving parts.
This hazardous location fan forced heater is constructed of 14 gauge steel and aluminum with stainless steel/aluminum pressure relief valves. The unit is rated for 6,000 cycles of service. Versatile louvers allow operators to control the direction of air leaving the fan in real-time. For protection from freeze damage (up to -45° C), the unit utilizes a Ethylene Glycol to water mixture as a heat transfer fluid inside the heater core.
Mounting: The recommended mounting height for this hazardous location unit is 10 feet.
Applications: Heating, manufacturing plants, chemical processing, cold-temperature facilities, farming operations, agricultural sites, flour processing, grain silos and more.
