Explosion Proof Hand Lamp with Explosion Proof Plug - 150' SOOW Cord -Incandescent Lamp - 120VAC

LARSON ELECTRONICSSKU: PL3-EPL-120-150-EPP
filler

Price:
Sale price$1,726.00

Description

Specifications / Additional Information
EPL-120-150-EPP Explosion Proof Hand Lamp Ratings/Approvals
UL Listing: United States Class I, Division 1, Groups C & D (100 Watt)
Dimensions: 16.5"L x 5" Diameter Class II, Division 1, Groups F & G (60 Watt)
Total Watts: 100 or 60 Watts Conforms to UL standard 781
Voltage: 120-277 V AC, 50/60 Hz CSA C22.2 No. 12 and CSAC22.2 No. 137
Weight: 25 lb
Mounting: Hook
Wiring: 150` 16/3 SOOW Cord w/ Explosion Proof Cord Cap
Cord Cap Options: 5-15P or 5-20P
Lamp Type: Incandescent
Ambient Temp: 40°C Maximum
Operating Temp: 160°C (T3C) Class 1 & 2
' Product Overview '

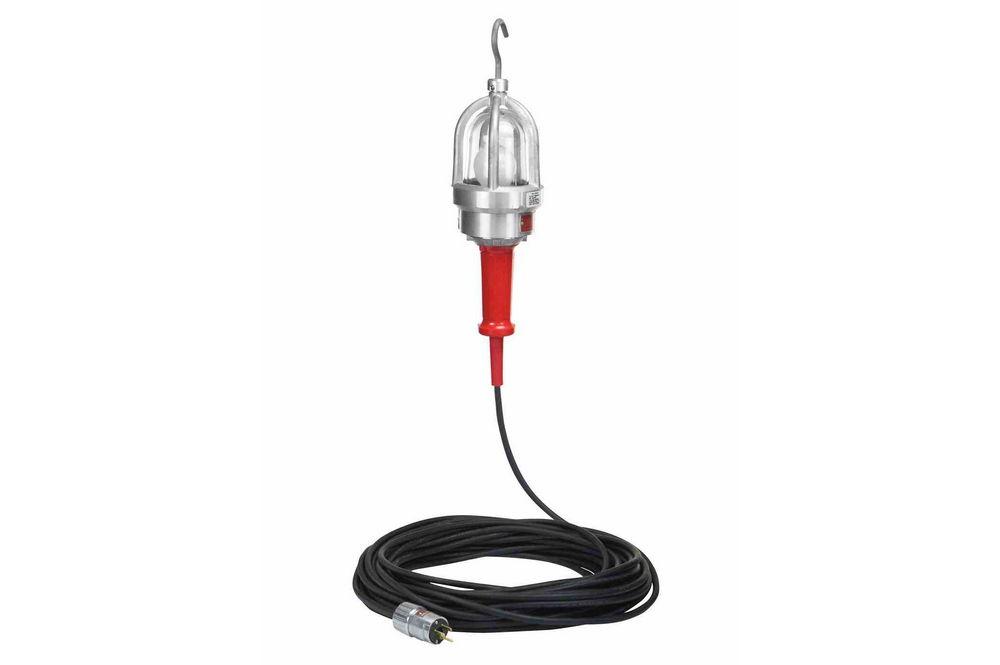

Made in the USA The EPL-120-150-EPP from Larson Electronics is an Explosion Proof Hand Lamp that is UL Listed Class I Division 1 Groups C & D and is ideal for general work activities in hazardous locations requiring explosion proof protection. This explosion proof work light from Larson Electronics comes complete with 150 feet of explosion proof cord and a choice of explosion proof cord caps.The EPL-120-150-EPP drop light housing is constructed of aluminum with a rubber bumper guard designed to provide an effective lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class I Division 1 approved when equipped with a 100 watt bulb and Class II Division 1 approved when equipped with a 60 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-120-100
Click Photos to Enlarge Click Photos to Enlarge
This 60 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (60 watt) are present. This unit is rated Class I Division 1, Class II Division 1 and comes complete with 150` of SOOW 16/3 AWG cord ending in a choice of explosion proof cord cap which allows connecting the lamp within the hazardous location.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug
Wiring & Plug: This explosion proof hand lamp is equipped with 150 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, or a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur. This explosion proof hand light operates on standard 120 Volts. This unit is available with either a 100 watt bulb for Class I Division 1 operation (Gases Vapors) or a 60 watt bulb for Class II Division 1 operations (Dusts). Choose your bulb type below when ordering.
