Explosion Proof Drop Light (Hand Lamp) with Inline Transformer - 50ft - 120 volts input to 12 volt

LARSON ELECTRONICSSKU: PL3-EPL-120X12-50
filler

Price:
Sale price$1,865.99

Description

Specifications / Additional Information
EPL-120X12-50 U.L./ CSA Ratings
UL Listing: United States Class 1, Division 1 Groups C, D (100 watt)
Dimensions: L-16.5  "   Dia-5" Class 2, Division 1 Groups F, G (75 watt)
Ambient temperature : Ambient temp 40C maximum Conforms to UL standard 781
Total Watts: 100 or 75 watts CSA C22.2 No. 12 and CSA C22.2 No. 137
Voltage: Stnd-120-277VVAC stepped down to 12 Volts
Operating Temp: 160 degrees C (T3C) Class 1 & 2
Mounting: Hook
Wiring: 60` (50+10) SOOW Cord; Inline 120 - 12VAC Transformer
Lamp Type: Incandescent

' Product Overview '

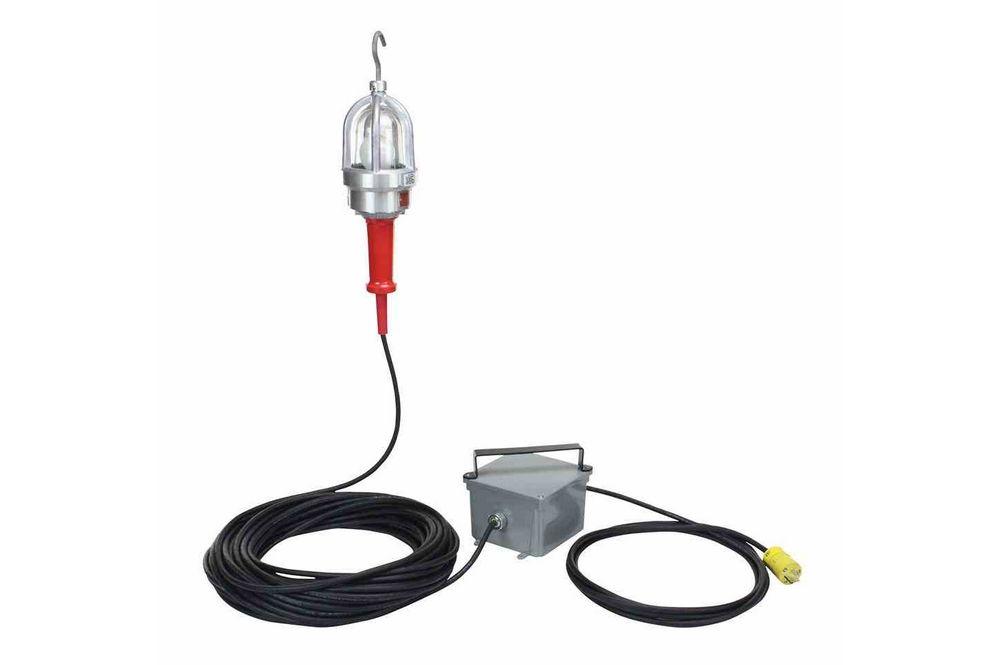

Made in the USA The Larson Electronics EPL-120X12-50 Explosion Proof Drop Light / Hand Lamp is UL Listed Class 1 Division 1 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This explosion proof work light from Larson Electronics comes complete with 50 feet of black explosion proof cord leading to an inline transformer that steps down 120-277VAC to 12 Volts for powering the lamp, with an additional 10 feet of cable out of the transformer to the plug. The EPL-120X12-50 drop light housing is designed to provide an effective low voltage lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 75 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-120X12-100
Click Photos to Enlarge Click Photos to Enlarge
This 75 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (75 watt) are present. This unit is rated Class I, Division 1, Class II Division 1 and comes complete with 50€™ of SOOW 16/3 AWG cord ending in a straight blade plug. This explosion proof hand light operates on standard 120 Volts AC Hz and steps this voltage down to 12 Volts via an included inline transformer. This transformer  plugs into standard wall outlets and is encased in a watertight boot. The bulb in this drop light is operates on 12 Volts and designed specifically for low voltage operation.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 75 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class I Div 1 & Class II Div 1 7. 120-277 Volt dropped to 12 Volt Operation 8. SOOW cable. 9. Hook for Convenient Placement. Watertight Inline Transformer Non-sparking aluminum housing Low Voltage Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
