Explosion Proof Drop Light (Hand Lamp) with inline transformer - 120V or 240V to 12VAC or 24VAC

LARSON ELECTRONICSSKU: PL3-EPL-120X1224VAC-100
filler

Price:
Sale price$1,951.99

Description

Specifications / Additional Information
EPL-120X12VAC-100 NTRL Listings
UL Listing: United States Class 1, Division 1 Groups C, D (100 watt)
Dimensions: L-16.5  "   Dia-5" Class 2, Division 1 Groups F, G (60 watt)
Total Watts: 100 or 60 watts
Voltage: Stnd-120/24VAC stepped down to 12 or 24 VAC or VDC
Mounting: Hook
Wiring: 100` SOOW Cord; Inline Transformer
Lamp Type:: Incandescent
Cord Cap: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
' Product Overview '

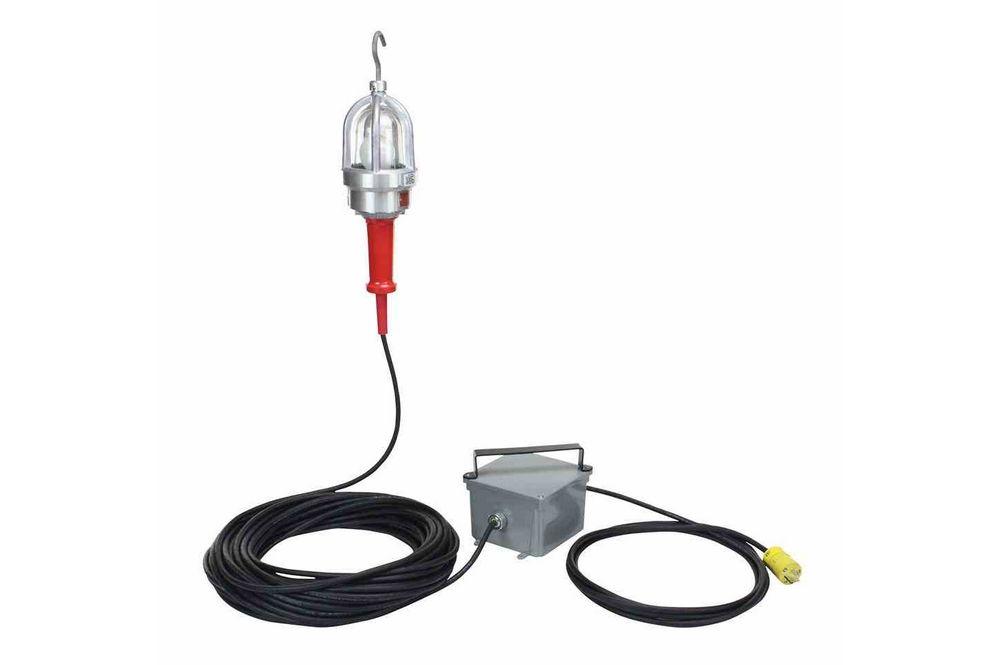

Made in Texas The Larson Electronics EPL-120X1224VAC-100  Explosion Proof Drop Light / Hand Lamp is UL Listed Class 1 Division 1 Groups C and D - and is ideal for general work task lighting in hazardous locations requiring explosion proof protection. This explosion proof work light from Larson Electronics comes complete with 100 feet of explosion proof cord and an inline transformer that steps down 120/240VAC to 12VAC or 24VAC for powering the lamp. The EPL-120X1224VAC-100 drop light housing is designed to provide an effective low voltage lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class 1, Division 1 approved when equipped with a 100 watt bulb and Class 2 Division 1 approved when equipped with a 60 watt bulb. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-120X12VAC-100
Click Photos to Enlarge Click Photos to Enlarge
This 60 watt or 100 watt incandescent light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (60 watt) are present. This unit is rated Class 1, Division 1, Class 2 Division 1. Voltage: The encapsulated transformer equipped with this unit is offered in 120V or 240V input, and step it down to 24V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring: The explosion proof drop light is configured to operate on high voltage stepped down to low voltage via an inline transformer. The encapsulated AC to DC transformer steps 120/240V AC down to 12V or 24V. This transformer has 100` of 16/3 oil and chemical resistant SOOW cable on the output side that connects the vapor proof LED light to the stepdown transformer, and 10` of 16/3 SOOW cable on the input side of terminated in an industrial grade cord cap. The inline transformer must be plugged in outside of the hazardous location.  Plug: Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Please note: The encapsulated transformer must remain outside the hazardous location. This explosion proof hand light operates on standard 120/240 Volts AC 60Hz and steps this voltage down to 12VAC or 24VAC via an included inline transformer. This transformer plugs into standard wall outlets and is encased in a Nema box. The bulb in this drop light operates on 12 VAC or 24 VAC and is designed specifically for low voltage operation.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 60 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 120/240 Volt dropped to 12 or 24 Volt Operation 8. SOOW cable. 9. Hook for Convenient Placement. Watertight Inline Transformer Non-sparking aluminum housing Low Voltage Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
