300W Explosion Proof LED Tank Light - Portable Wheelbarrow Cart - 42,000 Lumens - C1D2 Cord Cap

LARSON ELECTRONICSSKU: PL3-EPL-16C-2X150LED-RT-40M-EPP.CE16A
filler

Price:
Sale price$7,342.99

Description

Specifications / Additional Information
EPL-16C-2X150LED-RT-40M-EPP.CE16A Explosion Proof Tank Light Ratings/Approvals
Listing: NRTL Listed for United States & Canada Class I, Divisions 1 & 2, Groups C and D
Lamp Type: Cree LED Class II, Divisions 1 & 2, Groups E,F,G
Cart Dimensions: 58.73"L x 19.3"W x 17.86"H Class III, Divisions 1 & 2
Head Dimensions: 6"L x 40"W x 18.68"H Certified to UL 844 Ed. 13
Weight: 95 lbs Certified to UL 1598
Voltage: 120-277V AC 50/60Hz Certified to C22.2 No. 137 Rev 2009
Total Watts: 300 Watts Certified to C22.2 No. 250.0
Total Lumens: 42,000 T5 Temperature Rating
Luminous Efficacy: 140 Lm/W LEL Approved
Beam Lux: 8500 @ 1 Meter 1250 @ 3 Meters Paint Spray Booth Approved
Lamp Life: 60,000+ Hours IEC 60529 Tested
Color Temp: 5000K, 4000K or 3000K IP67 Rated Waterproof
Color Rendering Index: >75 CRI LEL Approved
Beam Angle: 60° or 125° Multiple Driver Banks
Lighting Configuration: Flood Pattern 80% Lumen Retention after 60,000 Hours
Power Efficiency: >95% Factory Sealed Light Fixture
Power Factor: 0.992 Class I, Div 2 Explosion Proof Plug
Amperage: 2.5A @ 120V, 1.26 @ 240V, 1.08 @ 277V 40 meters 16/3 SOOW Cord
Ambient Operating Temp Range: -50°C to +65°C Wheeled Cart w/ Removable Light Head
Operating Temp Rating: T5
Lamp Housing Material: Copper Free Cast Aluminum
Cart Material: Non-Sparking Aluminum Tubing w/ Rubber Casters
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Non-Sparking Wheeled Aluminum Cart
Wiring: 40 meters 16/3 SOOW Cable w/ Explosion Proof Cord Cap
Cord Cap: 16A HLP-EX-16A-2P3W, C1D2
Cord Cap Voltage Options: 125V or 250V
' Product Overview '

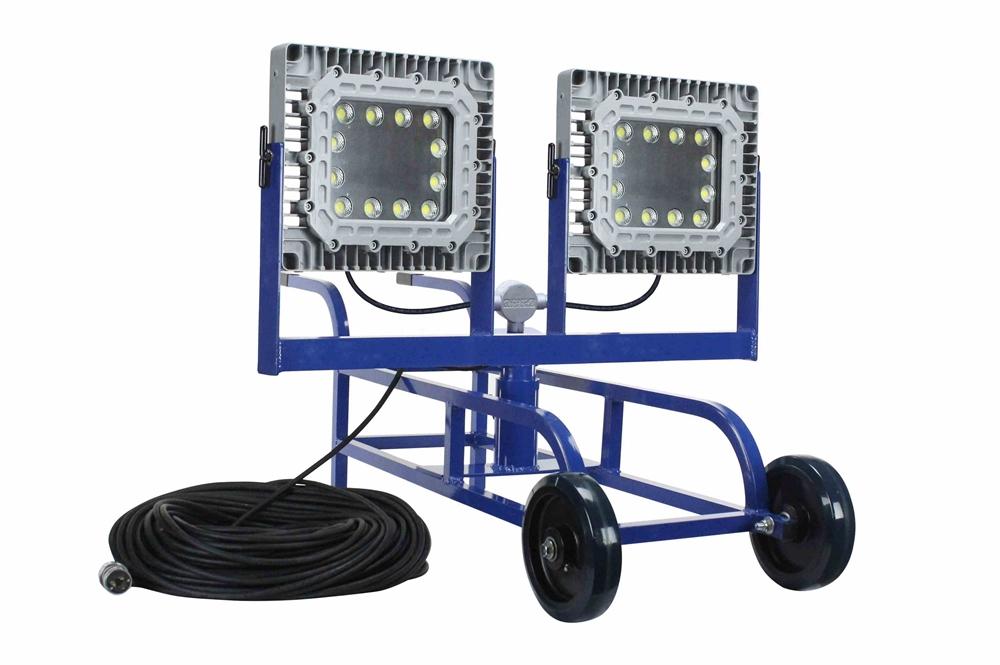

The EPL-16C-2X150LED-RT-40M-EPP.CE16A from Larson Electronics is an Explosion Proof Portable Tank Light that is rated Class I, Divisions 1 & 2 Groups C & D and Class II, Divisions 1 & 2. This unit uses Cree LEDs to produce 42,000 lumens of light while drawing only 300 watts. The system comes with a 16-amp Class I, Division 2 rated cord cap, which is offered in 125V or 250V voltages. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS LIGHT CART* The EPL-16C-2X150LED-RT-40M-EPP.CE16A is a cart mounted explosion proof LED light that provides 9,500 square feet of work area coverage with 42,000 lumens of light output. This portable LED cart light has a removable light head assembly which allows the unit to fit through the standard sized manholes or entry passages commonly found in the petrochemical and marine industries. Often simply referred to as a "tank light", this unit is considered universal due to its ability to be passed through any conventional manhole such as those found in petrochemical containers and ship storage tanks. This portable LED tank light is comprised of an adjustable LED light head mounted atop a wheelbarrow style cart fabricated from non-sparking powder coated aluminum and includes solid wheels allow the operator to tilt the unit up and simply roll the entire assembly to a new location. The LED light head produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and further adds to this units desirability as a portable tank lighting solution. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and rotated horizontally, then locked into position. This portable LED light cart is comprised of a removable LED light head T assembly mounted atop a solid rubber wheeled cart fabricated from non sparking aluminum. Transferring the unit through manholes consists of simply removing the light head from the cart, passing the light head and cart through the manhole separately, and then reassembling the unit once inside. Included with this LED light cart is 40 meters of SOOW cord which combined with the 360° of rotation of the T head and 90° of tilt offered by the LED light heads provides an effective alternative to often cumbersome explosion proof string lights. The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twenty-four individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle 140° Beam Angle
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. The LED light heads on this tank cart contains twelve 12.5 watt LEDs producing 140 lumens each. These LEDs are arranged in rows and paired with high purity optics to produce 42,000 lumens and a flood beam while only drawing 2.5 amps on 120V, making these units ideal for use as highly efficient yet powerful work and area lights. The EPL-16C-2X150LED-RT-40M-EPP.CE16A explosion proof LED light cart is an ideal and direct replacement for fragile and hot running 400 watt metal halide cart mounted floodlights. Voltage: The LED assembly is universal voltage capable and can be operated with 100-277V AC, 50/60Hz. Wiring: This LED floodlight is equipped with 40 meters of 16/3 SOOW oil, chemical, abrasive, and water resistant cable terminated in a Class I, Division 2 rated cord cap, which is combined with adjustability offered by the LED light heads and provides ample length for tower placement and optimal coverage of the workspace. The 16-amp cord cap is IP66 rated and can be used in Class I, Division 2 rated environments (the explosion proof LED light is Class I, Division 1 rated). This cord cap is offered in 125V or 250V. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. This LED light produces 35,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor portable work lights. This LED light tower retains 80% of its lumen output after 60,000 hours of use, far longer than metal halide or halogen work lamps. The LED light head assembly on this unit is small enough to allow it to fit through most standard size manholes and entry points. The T head light assembly can also be removed from the cart, the entire assembly passed through a manhole, and reassembled once inside. The easy to collapse design of this Class I, Division 1 LED work light allows Larson Electronics to avoid pallet freight charges when shipping and deliver these units via UPS next day air service, which in turn improves delivery time and reduces the cost to buyers. Further adding to the versatility and convenience of this LED light cart are 25 peel off Mylar overspray lamp protectors that ship with the unit. The protectors provide lamp protection from dirt or debris and can be removed, cleaned and replaced, lessening the need for tedious lamp cleaning or replacements. The LED light heads is T5 temperature rated and the LED light heads retains 80% of its lumen output after 60,000 hours of use, far longer than incandescent or fluorescent lamps. The light head can be removed and used separately from the cart for added convenience.
