Explosion Proof Drop Light (Hand Lamp) w/ Inline Transformer - 220VAC 50/60Hz Stepped Down to 12VDC

LARSON ELECTRONICSSKU: PL3-EPL-220X12-25
filler

Price:
Sale price$2,059.99

Description

Specifications / Additional Information
EPL-220X12-25 Explosion Proof Drop Light / Hand Lamp Ratings/Approvals
Lamp Type: Incandescent Class I, Division 1 Groups C, D (100 watt)
Listing: United States & Canada Class II, Division 1 Groups F, G (60 watt)
Dimensions: 16.5"L x 5" Diameter Conforms to UL standard 781
Weight: 15 lbs CSA C22.2 No. 12 and CSA C22.2 No. 137
Input Voltage: 220V AC @ 50 Hz or 60 Hz
Output Voltage: 12V DC
Total Watts: 60W, 75W or 100W - Depending on the Wattage Selection
Amperage: 3.67A w/ 60W Bulb, 2.93A w/ 75W Bulb, 2.2A w/ 100W Bulb
Ambient Operating Temperature: -20°C to + 40°
Operating Temperature: 160°C (T3C) Class 1 & 2
Housing Material: Stainless Steel Mesh Guard, Rubberized Handle
Lens Material: Tempered Glass Globe
Mounting: Stainless Steel Hook
Wiring: 25` 16/3 SOOW Cord, Inline Transformer with 10` 16/3 SOOW Cord
Cord Cap: General Area Cord Cap
Cord Cap Options: 6-15 Straight, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Warranty: Yes - 5 Years*

' Product Overview '

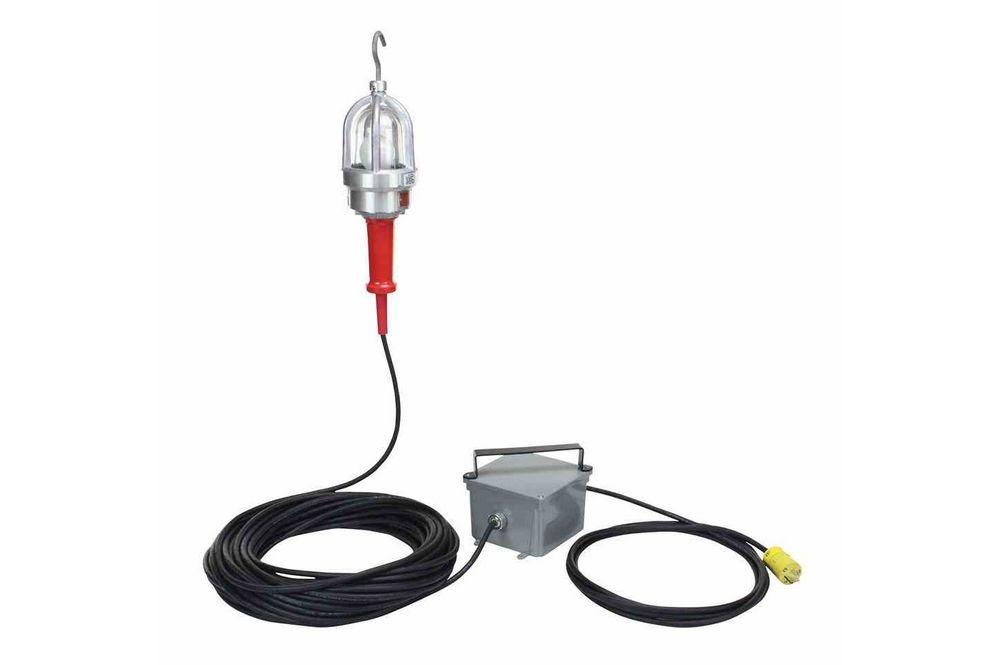

Made in the USA The EPL-220X12-25 from Larson Electronics is an Explosion Proof Drop Light / Hand Lamp that is available in three different wattages including 60W, 75W or 100W. The 100W version is approved for Class I Division 1 Groups C & D while the 60W and 75W versions are approved for Class II Division 1 Groups F & G hazardous areas. This explosion proof work light from Larson Electronics comes complete with 25 feet of 16/3 explosion proof cord leading to an inline transformer that steps down 220V AC at 50 Hz or 220V 60 Hz (operates on both 50HZ and 60HZ) to 12 Volts for powering the lamp, an additional 10 feet of cord leading to the wall plug, for a total of 35 feet of cable. The EPL-220X12-25 drop light housing is designed to provide an effective low voltage lighting solution for operators requiring a versatile source of illumination. This hazardous location hand lamp is Class I Division 1 approved when equipped with a 100 watt bulb and Class II Division 1 approved when equipped with a 60 watt or 75 watt bulb. Make bulb selection when ordering below. This explosion proof drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
Dark 40` Container Illuminated with EPL-220X12-100
Click Photos to Enlarge Click Photos to Enlarge
This 75 or 100 watt drop light is suitable for use in areas where petrochemical vapors (100 watt) and various dusts (60 watt or 75 watt) are present. This unit is rated Class I Division 1 Groups C & D with a 100 watt bulb and Class 2 Division 1 Groups F & G with a 60 watt or 75 watt bulb. Choose bulb wattage below when ordering. This explosion proof drop light operates on 220 Volts AC at 50 Hz or 60 Hz and steps this voltage down to 12 Volts via an included inline transformer. This transformer plugs into standard wall outlets and is encapsulated in a waterproof enclosure. The bulb in this drop light is operates on 12 Volts and designed specifically for low voltage operation.
Click Photos to Enlarge
L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof drop light / hand lamp is equipped with 25 feet of 16/3 chemical and abrasion resistant SOOW cord leading to the inline encapsulated transformer, with 10` of line-in 16/3 SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. *PLEASE NOTE: WHILE THE DROP LIGHT ITSELF IS EXPLOSION PROOF, THE CORD CAP IS NOT EXPLOSION PROOF AND MUST BE CONNECTED TO POWER IN A NON-HAZARDOUS AREA.*
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 60, 75 or 100 Watt Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Red and Gray paint finish. 6. UL Class I Div 1 (100W Bulb) Class II Div 1 (60W or 75W Bulb) 7. 220 Volt AC @ 50/60Hz dropped to 12 Volt DC Operation 8. SOOW cable. 9. Hook for Convenient Placement. Watertight Inline Transformer Non-sparking aluminum housing Low Voltage Aluminum lamp guard Lamp shield prevent shattering Plugs into standard outlets Swivel hook for hanging and hands free operation Explosion proof cord
