156W Explosion Proof Portable LED 360 Degree Flood Low Profile Light System - 2ft - Tank Cleaning


Sale price$11,343.99


Specifications / Additional Information
EPL-360-3XLP24-LED-V2-100 360° Flood Light System Ratings/Approvals
Lamp Type: LED Class I, Division 1&2, Groups B, C, D T5
Listing: United States, Canada, Europe, Asia Class II, Division 1&2 Groups E,F,G T5
Dimensions: 22.52"L x 19.5"W x 41"H Class III, Division 1&2 T5
Weight: 67 Lbs ATEX 2G Ex d IIB+H2 T5 Gb
Voltage: Universal 100-277 VAC, 50/60Hz or 11-25V AC/DC ATEX 1D Ex tb IIIC T5 Da
Total Watts: 156W IECEx Ex d IIB+H2 T5 Gb
Lumens: 20,280 IECEx Ex tb IIIC T5 Da
Luminous Efficacy: 130 Lm/W Certified to UL 844 Ed. 13
Lamp Life: 60,000+ Hours Certified to UL 1598
Color Temp: 5000K, 4500K, 3000K Certified to UL 8750
Color Rendering Index: >75 CRI Certified to C22.2 No. 137 Rev 2009
Beam Angle: 360° Certified to C22.2 No. 250.0
Power Efficiency: >95% Certified to C22.2 No. 250.13
Power Factor:  0.992 Certified to EN 60079-0:2012
Amperage: 1.3A @ 120V, 0.65 @ 240V Certified to EN 60079-1:2007
Ambient Operating Temp Range:-50°C to +65°C Certified to EN 60079-31:2009
Operating Temp Rating: T5 Certified to IEC 80079-34:2011
Lamp Housing Material: Copper Free Cast Aluminum Paint Spray Booth Approved
Lens Material: Hardened Borosilicate Glass Factory Sealed Light Fixture
Frame Material: Non Sparking Aluminum Made in the USA
Finish: Powder Coated Blue
Mounting: Triangular Aluminum Base Stand, Top Pickeye
Wiring: 100` 16/3 SOOW Cord w/ Explosion Proof Straight Blade Plug
Cord Cap: 5-15P, 5-20P or 6-20P - Explosion Proof
Warranty: YES - 5 Years*
' Product Overview '

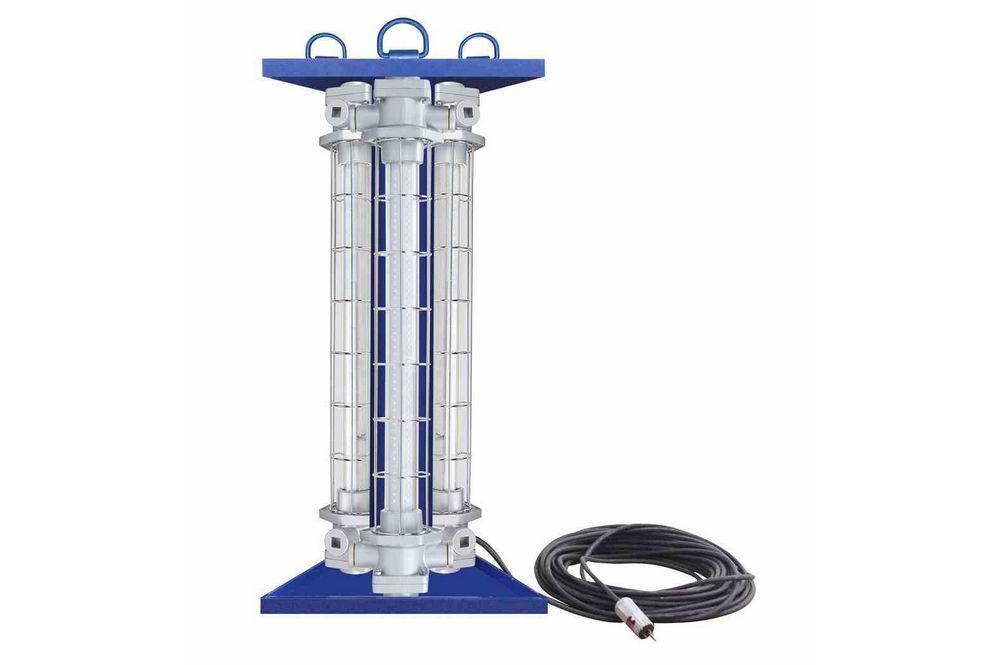

Made in Texas The EPL-360-3XLP24-LED-V2-100 Portable Explosion Proof LED Flood Lighting system from Larson Electronics is rated Class I Division 1 & 2 and Class II Division 1 & 2 and produces 20,280 lumens of light with 360° coverage while drawing only 156 watts. The EPL-360-3XLP24-LED-V2-100 has a low-profile frame, is equipped with wire guards to protect the unit from possible damage and has 100` of 16/3 SOOW cable terminated in an explosion proof cord cap. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** The EPL-360-3XLP24-LED-V2-100 explosion proof LED flood light system provides 360° work area coverage with 20,280 lumens of light output. This portable LED light features a slim powder coated frame constructed from non sparking aluminum, three D-ring handles on top to provide operators with an easy grip during transportation and produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas, hazardous locations and small areas where flammable vapors, gases and dusts may be present. This flood light system can be positioned in its upright position to provide an intense flood beam covering 360° around the system or suspended in its upright or laid down on its side positions to provide lighting within tanks and enclosed work areas. The triangle frame design provides stability for the flood system in when mounted in either position. A pickeye located on the top of the frame allows operators to lower the flood light system into tanks through manway entries. This fixture can be further customize with locking casters to increase mobility within the work environment. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
LED Modules: Each LED module in the EPL-360-3XLP24-LED-V2-100 draws 52 watts and produces 6,760 lumens for a total of 156 watts and 20,280 total lumens. The EPL-360-3XLP24-LED-V2-100 has a color temperature of 5000K which produces colors and details much more accurately than high pressure sodium or mercury vapor lamps. The copper free aluminum alloy lamp body is powder coated for added durability and resistance to corrosion. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 100,000 hour rated lifespan with 80% lumen retention. Included with this LED light is 100 feet of 16/3 SOOW cord terminated in an explosion proof cord cap.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring & Plug: This explosion proof LED light is equipped with 100 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight blade plug for use with 120V explosion proof outlets, a 5-20 20 amp straight blade plug for use with 120V explosion proof outlets, or a 6-20 20 amp straight blade plug for use with 220-240V explosion proof outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications, proper voltage must be applied to the outlet or damage to the light fixture will occur.
Click Photo to Enlarge
Top mounted pickeye allows operatores easily move this unit from location to location, as well as aid in lowering into tanks through manway entry ways For an additional cost, locking casters can be added to this unit.
This unit is multi-voltage capable and configured to operate on 120-277 volts 50/60 Hz. This lamp is T5 temperature rated and the LED light head retains 80% of its lumen output after 100,000 hours of use, far longer than incandescent or fluorescent lamps. The compact design and 360° beam coverage makes this unit ideal for tank cleaning and MRO applications.
Made in USA Quality Superior LED Benefits
1. Approved Class I Div 2 Class 2 Div I-2 2. Led lamp head requires no lamping. 3. Low Profile Base Mount constructed of copper free aluminum. 4. No ballast box. No ballast to replace. 5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Three LED light heads. 7. 5000K Color Temperature 8. 20,280 Lumens produced from only 156 watts. 9. Mercury free shock proof LED lamp light heads. 10. Polycarbonate lenses protect the LED lamp assemblies from dust, debris, and overspray 11. Top mounted pick eye allows for easy positioning of this unit 1. 100,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off - No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
