Larson Explosion Proof Fluorescent Lights - Paint Booths, Rigs - 4', 3 Lamp Fixture - Bi-Axial Bulb Design

Larson ElectronicsSKU: PL3-EPL-48-1.5L-BX
filler

Price:
Sale price$2,623.99

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in the USA

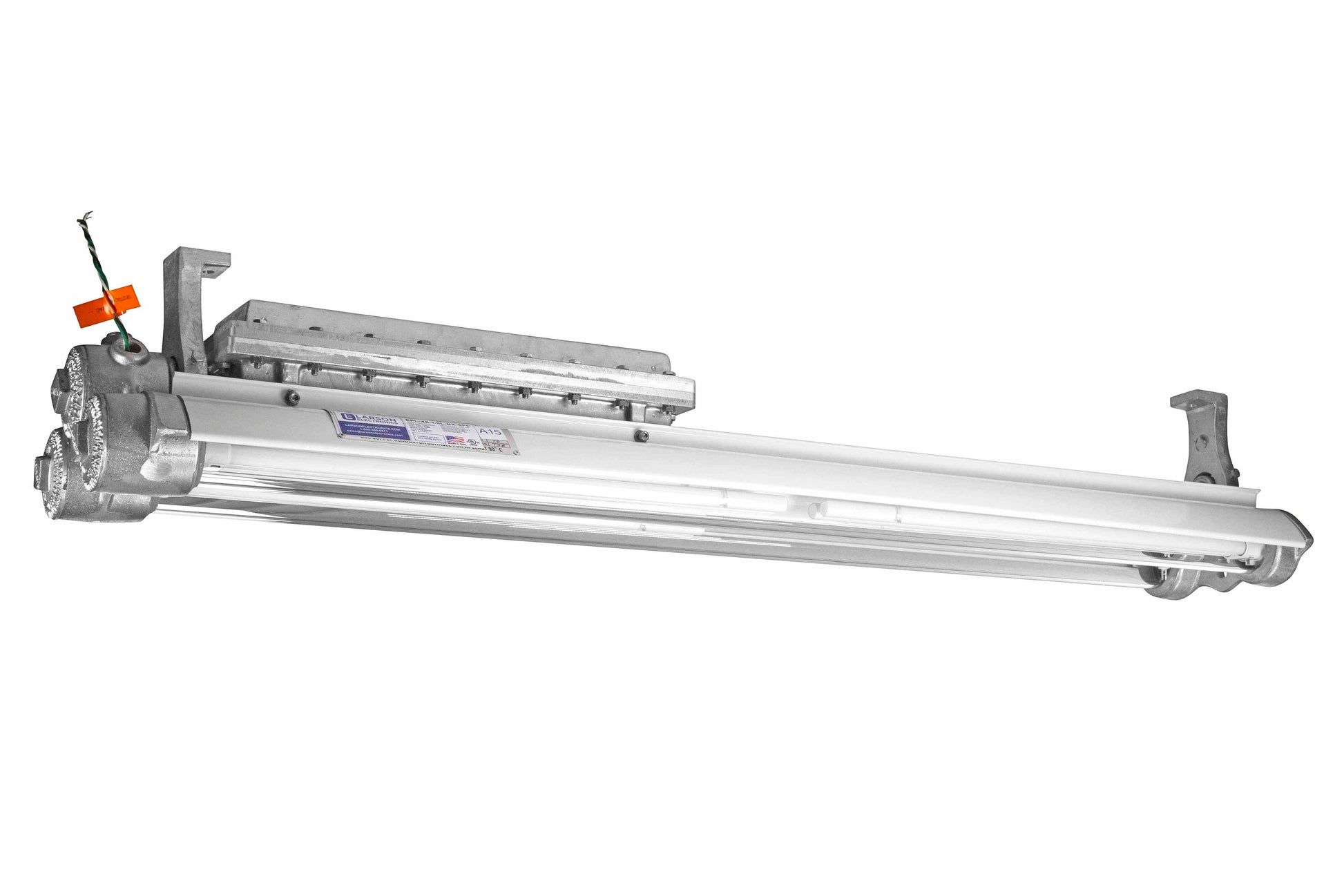

The Larson Electronics EPL-48-1.5L-BX Explosion Proof Three Bi-Axial Bulb Fluorescent Light Fixture is NRTL Listed for United States and Canada, rated Class I Divisions 1 & 2 and Class II Divisions 1 & 2 carries a T6 temperature rating and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.
The EPL-48-1.5L-BX fixture is a 4 foot long, 3 lamp, Class I Divisions 1 & 2 and Class II Divisions 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with three Bi-Axial 40 watt compact fluorescent bulbs which produce a combined 120 watts of illumination. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The EPL-48-1.5L-BX provides operators in hazardous locations with an effective explosion proof lighting solution that provides more light than similar two bulb units.



This Biaxial Lamp fixture is multi-voltage capable and can operate on voltages ranging through 100/120 Volts 60 HZ, 220 Volt 50 HZ, 240 Volt 60 HZ, and 277 Volts 60 HZ with 347 Volt and 480 Volt versions available upon request.
Mounting Options:
Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown enlarged below. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Additional mounting configurations can be customized to meet the requirements on the application. Please contact us for special mounting configurations.
Adjustable Surface Mount Brackets:
Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg.
Suspension Mounting:
Pendant mount fixtures hang from the ceiling and are suspended by rigid pipe. Each fixture features a 1/2" NPT junction box on one end, and a 1/2" NPT adjustable L-bracket on the other end of the fixture. Operators bring rigid pipe down to the threaded mounting hubs. Wiring is fed down through the rigid pipe to the junction box and tied in to the fixture`s lead wires, completing the electrical connection. The adjustable L-shape mounting bracket provides support for the opposite end of the fixture.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Made in USA Quality
1. Each unit dialectically tested.

Specifications
NRTL Listed for United States & Canada
United States & Canada NRTL Listed for
Lamp Type: Fluorescent
Dimensions: W-11.25" L-52" H-8.5 "
Weight: 58 Lbs
Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz
Optional Voltages: 347 Volt and 480 Volt
Total Watts: 120 watts
Total Lumens 10,500
Luminous Efficacy: 88 Lm/W
LED Lamp Life Expectancy: 20,000+ Hours
Color Temp: 4000K
Beam Angle: 150°
Ambient Operating Temp Range: -30°C to +70°C
Operating Temp Range: -30°C to +70°CT6 rated
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 Inch Threaded
Warranty: YES-5 Years*
U.L Approval: U.S Certificate Canada Certificate
