|EPL-AE.EX-MJ-CD-100W-12V-R1-TRN ATEX Rated Incandescent Lamp||Ratings/Approvals|
|Listing: NRTL Certified for Europe and International||Approved for Zone 1 and Zone 2|
|Lamp Technology: Incandescent (Lamp Included)||Approved for Zone 21 and Zone 22|
|Dimensions: -||Ex tb …¢C T195„ƒ Db|
|Weight: 21.53 lbs||Ex …¡ 2 GD Ex de …¡ C T* Gb|
|Voltage: 12V AC, 50/60 Hz||Temp Rating -40„ƒ‰Ta‰40„ƒ/55„ƒ|
|Total Watts: 100W||NRTL Certified to IEC 60079|
|Lumens: 1400||NRTL Certified to EN 60079|
|Beam Angle: 360°||CE Certified|
|Lamp Base: E27||IP66 Weatherproof|
|Amps: 8.34A @ 12V|
|Ambient Operating Temp Range: -40„ƒ to+40„ƒ/+55„ƒ|
|Housing Material: Die-cast Aluminum Alloy w/ Epoxy Resin Powder Finish|
|Lens Material: Borosilicate Toughened Glass|
|Mounting: Trunnion Mount|
|Terminal: L1, N|
|Hubs: (1) M25 x 1.5 w/ Molded Plastic Cable Gland, (1) M25 w/ Stopping Plug|

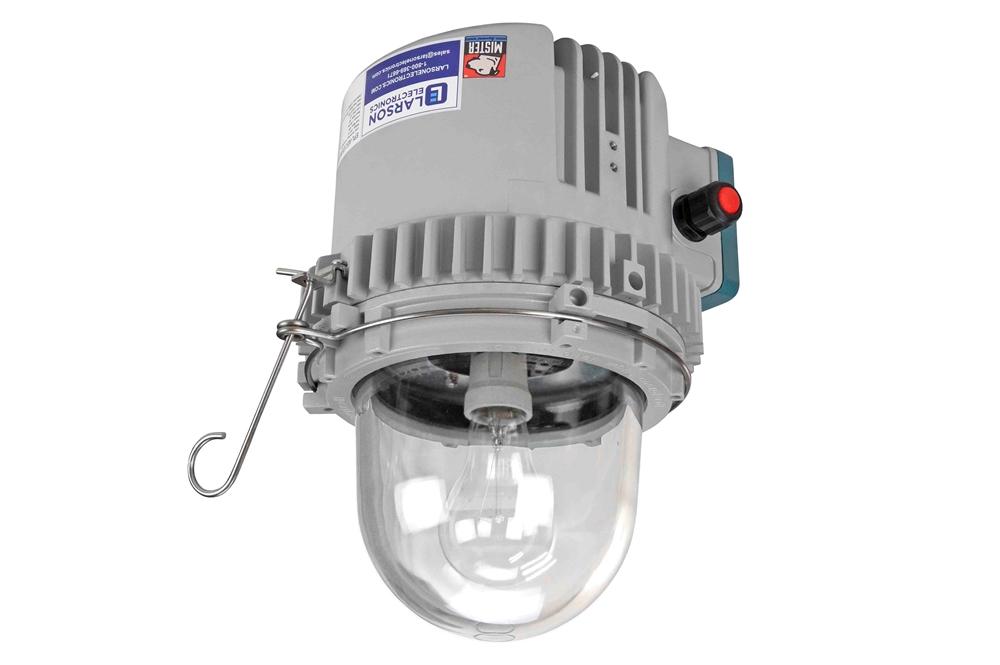

|The EPL-AE.EX-MJ-CD-100W-12V-R1-TRN Explosion Proof Incandescent Fixture from Larson Electronics is a powerful lamp for ATEX-rated environments. This 100-watt fixture is compatible with 12V AC, 50/60Hz and offers 360 degrees of illumination. Constructed of die-cast aluminum alloy with an epoxy resin powder finish, the explosion proof light is compatible with trunnion mounting applications. The lamp is included with the fixture. The EPL-AE.EX-MJ-CD-100W-12V-R1-TRN is an ATEX-rated Incandescent fixture for explosive work sites. Equipped with a corrosion-resistant housing, this unit operates on 12V AC, 50/60 Hz. The 100-watt light features a 360-degree beam angle that is highly visible during use. This explosion proof luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Equipped with a borosilicate toughened glass lens, the unit features an E27 lamp holder and is ATEX rated for Zones 1, 2, 21 and 22. Wiring: Cable entries are facilitated by one M25 x 1.5 hub (molded plastic cable gland and stopping plug). Terminal connections include: L1, N. A side-mounted junction box is available for seamless field installations. Mounting: This Incandescent fixture is suitable for trunnion mount applications. After installation, operators can adjust the light head for proper light placement over the target area. Suggested Applications: Hazardous locations, explosive work sites, confined spaces, chemical processing, food manufacturing and more.|
