100W Explosion Proof HPS Lamp - 230V 50/60Hz Ballast - Trunnion Mount - ATEX/IECEx - Lamp Not Included

LARSON ELECTRONICSSKU: PL3-EPL-AE.EX-MJ-HPS-100W-230V-R1-TRN
filler

Price:
Sale price$1,407.99

Description

Specifications / Additional Information
EPL-AE.EX-MJ-HPS-100W-230V-R1-TRN ATEX Rated HPS Lamp Ratings/Approvals
Listing: NRTL Certified for Europe and International Approved for Zone 1 and Zone 2
Lamp Technology: High Pressure Sodium (Lamp Not Included) Approved for Zone 21 and Zone 22
Dimensions: - Ex tb …¢C T195„ƒ Db
Weight: 21.53 lbs Ex …¡ 2 GD Ex de …¡ C T* Gb
Voltage: 230V AC, 50/60 Hz Temp Rating -40„ƒ‰Ta‰40„ƒ/55„ƒ
Total Watts: 100W NRTL Certified to IEC 60079
Lumens: 12500 NRTL Certified to EN 60079
Beam Angle: 360° CE Certified
Lamp Base: E27 IP66 Weatherproof
Amps: 0.55A @ 230V
Ambient Operating Temp Range: -40„ƒ to+40„ƒ/+55„ƒ
Housing Material: Die-cast Aluminum Alloy w/ Epoxy Resin Powder Finish
Lens Material: Borosilicate Toughened Glass
Mounting: Trunnion Mount
Terminal: L1, N
Hubs: (1) M25 x 1.5 w/ Molded Plastic Cable Gland, (1) M25 w/ Stopping Plug
' Product Overview '

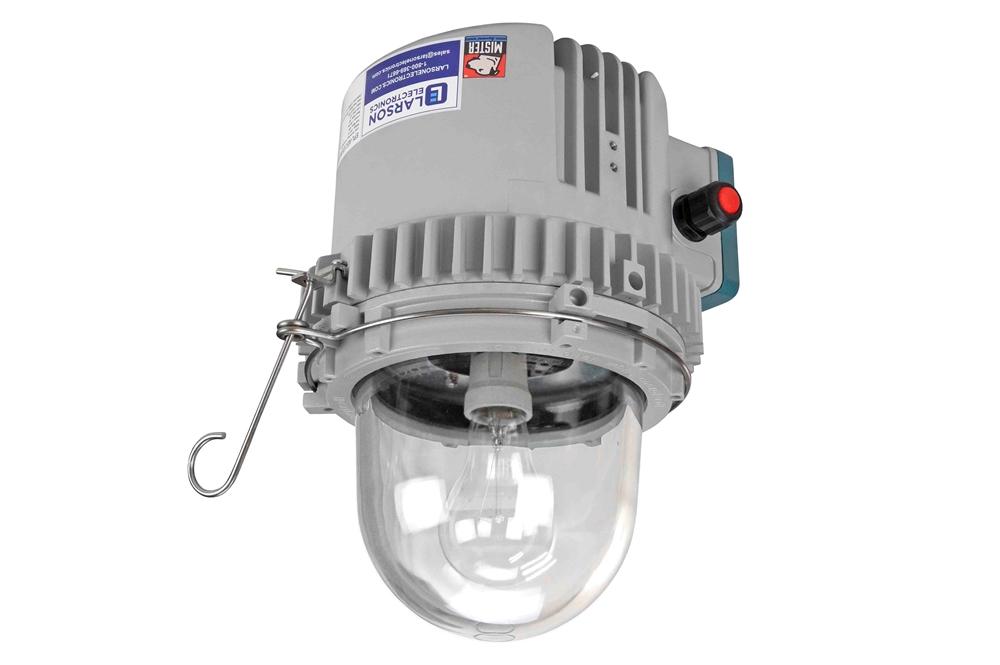

The EPL-AE.EX-MJ-HPS-100W-230V-R1-TRN Explosion Proof High Pressure Sodium Fixture from Larson Electronics is a powerful lamp for ATEX-rated environments. This 100-watt fixture is compatible with 230V AC, 50/60Hz and offers 360 degrees of illumination. Constructed of die-cast aluminum alloy with an epoxy resin powder finish, the explosion proof light is compatible with trunnion mounting applications. The lamp is not included with the fixture. The EPL-AE.EX-MJ-HPS-100W-230V-R1-TRN is an ATEX-rated high-pressure sodium fixture for explosive work sites. Equipped with a corrosion-resistant housing, this unit operates on 230V AC, 50/60 Hz. The 100-watt light features a 360-degree beam angle that is highly visible during use. This explosion proof luminary is constructed of die-cast aluminum alloy with an epoxy resin powder finish. Equipped with a borosilicate toughened glass lens, the unit features an E27 lamp holder and is ATEX rated for Zones 1, 2, 21 and 22. Wiring: Cable entries are facilitated by one M25 x 1.5 hub (molded plastic cable gland and stopping plug). Terminal connections include: L1, N. A side-mounted junction box is available for seamless field installations. Mounting: This HPS fixture is suitable for trunnion mount applications. After installation, operators can adjust the light head for proper light placement over the target area. Suggested Applications: Hazardous locations, explosive work sites, confined spaces, chemical processing, food manufacturing and more.
