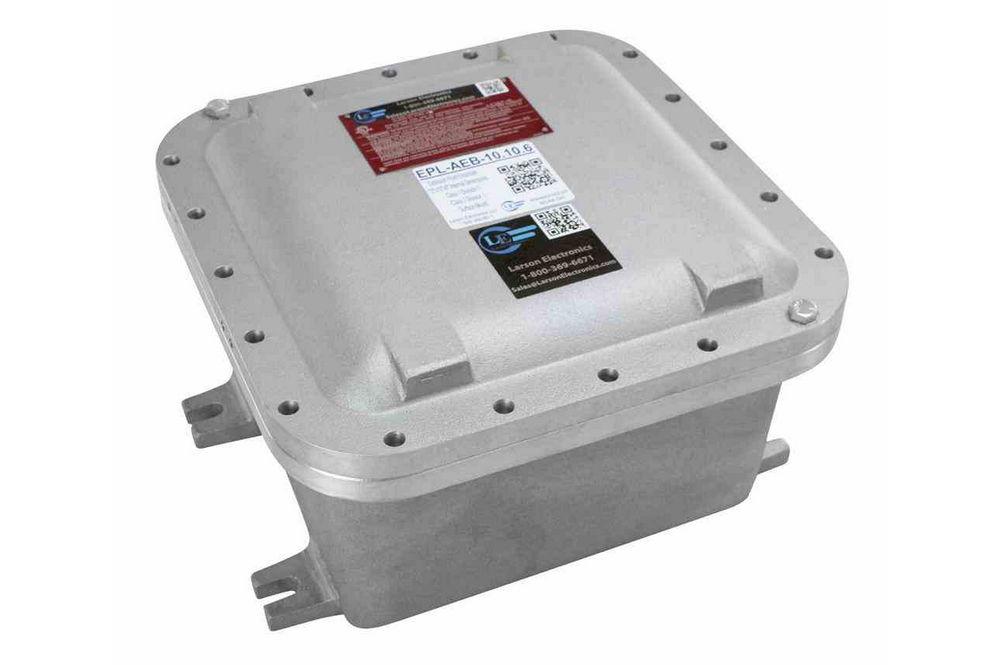

Explosion Proof Enclosure - 10"x10"x6" Internal Dims - C1D1 - (4) External NPT Hubs - Surface Mount

LARSON ELECTRONICSSKU: PL3-EPL-AEB-12.12.8-2X2S-1X1W-1X1E
filler

Price:
Sale price$11,163.99

Description

Specifications / Additional Information
EPL-AEB-12.12.8-2X2S-1X1W-1X1E Explosion Proof Enclosure Ratings
External Dimensions: 15.25" x 8.90" x 15.25" Class I, Divisions 1&2 Groups B,C,D
Internal Dimensions: 12€-L x 12€-W x 8€-H Class I, Zones 1&2 Groups IIB+H2,IIA
Pan Dimensions: 9" x 9" Class II, Divisions 1&2 Groups E,F,G
Available Dimensions for Devices: 10" x 10" x 6.20" Class III
Weight: 92 lbs NEMA 3, 4, 4X
Maximum Conduit Size:  3" CENELEC/ATEX/IEC Ex
Maximum Operators on Lid: 3 Rows of 3 = 9 Ex d IIB + H2 T5 or T6
Mounting Leg Height: 0.25" Ex tD A21 IP66
Mounting Dimensions (Horizontal) Height: 4.94" Tamb = + 60°C
Mounting Dimensions (Horizontal) Width: 4.94"
Mounting Dimensions (Vertical) Height: 12.94"
Mounting Dimensions (Vertical) Width: 12.94"
Cover Type: Bolted
Materials: Copper-free Aluminum
Mounting: Surface Mount
Internal Mounting Pan Total Taps: 4
Internal Mounting Pan Tap Locations: (4) @ Each Corner
Hinges: N/A
Total External Hubs: 4
External Hub Sizes: (2) 2" NPT, (2) 1" NPT
External Hub Locations: (2) 2" NPT @ South Side, (1) 1" NPT @ East Side, (1) 1" NPT @ West Side Toll Free: 1-800-369-6671
Color: Grey
Shipping Dimensions: 48"-L x 48"-W x 23.25"-H
Shipping Weight: 147 lbs
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPL-AEB-12.12.8-2X2S-1X1W-1X1E Explosion Proof Enclosure provides operators with a Class I and II, Divisions 1 and 2 copper-free aluminum enclosure designed to hold electrical equipment up to 10" by 10" by 6.20" in size. Equipped with an internal mounting pan, this NEMA 4X rated explosion proof device is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-12.12.8-2X2S-1X1W-1X1E explosion proof enclosure is made of copper-free aluminum and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 10" in length by 10" in width by 6.20" in height. This unit caters to a maximum of 9 operators on the lid (3 rows of 3 = 9) and a maximum conduit size of 3". Equipped with a bolted cover, the grey explosion proof enclosure is compatible with surface-mount applications. This explosion proof device is designed for Class I, Divisions 1 & 2 (Groups B,C,D); Class I, Zones 1 & 2 (Groups IIB+H2,IIA); Class II, Divisions 1 & 2 (Groups E,F,G) and Class III rated combustible sites. The NEMA 4X rating makes the unit suitable for both indoor and outdoor applications, as well as ensures protection from water, dust, moisture, dirt and external ice formation. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Hubs: The EPL-AEB-12.12.8-2X2S-1X1W-1X1E contains a total of four external NPT hubs. Two 2" NPT hubs are located on the south side, one 1" NPT is located on the east side and one 1" NPT hub is located on the west side of the explosion proof enclosure. Inside the unit, operators are provided access to four taps on the internal mounting pan. Four 3/8" NPT taps can be found at each corner of the internal back plate. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting Systems, Oil and Gas, Marine Sites, Textile, Food Processing, Chemical Storage, Wet areas or Locations Where Combustible Dust is Present. At Larson Electronics, we can build enclosures to your specifications. Our craftsmen can custom build any lighting system and/or accessories to fit the unique demands of your operation. A commitment to honesty, quality, and dependability has made Larson Electronics a leader in the lighting and electronics business since 1973. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
