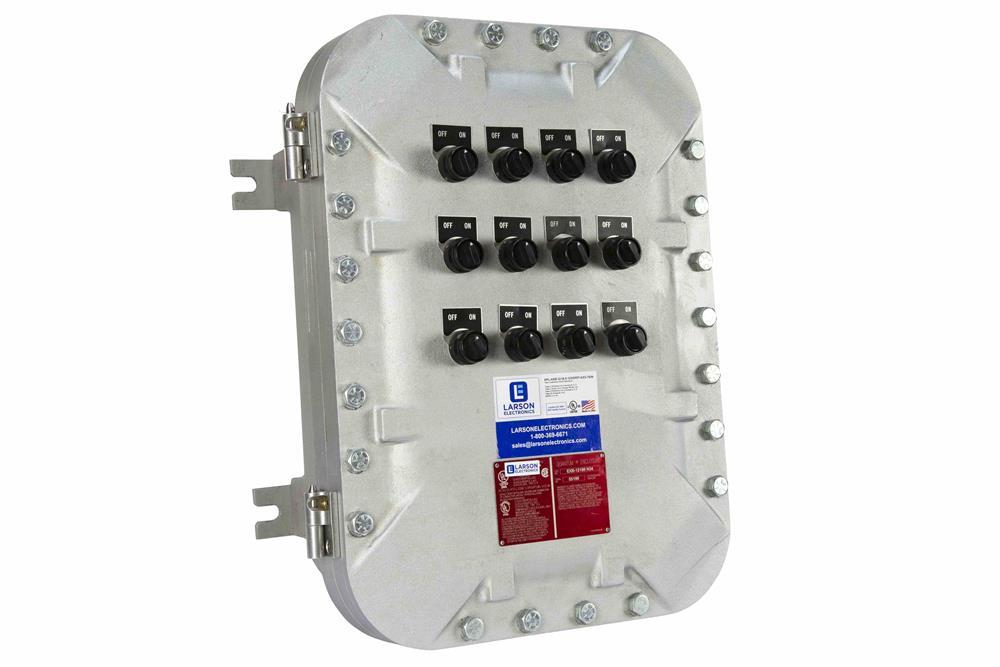

Explosion Proof Switchbox - 12" x 18" x 6" Int. Dimensions - C1D1 - Surface Mount - (12) Switches

LARSON ELECTRONICSSKU: PL3-EPL-AEB-12.18.6-12XSPST-6X0.75IN
filler

Price:
Sale price$29,362.00

Description

Specifications / Additional Information
EPL-AEB-12.18.6-12XSPST-6X0.75IN Explosion Proof Switch Box Ratings/Approvals
Type: Explosion Proof Switchbox Class I Divisions 1 & 2 Groups B, C & D
Internal Dimensions: 12.00"L x 18.00"W x 6.00"H Class I Zones 1 & 2 Groups IIB & IIA
Weight: ~110 lbs Class II Divisions 1 & 2 Groups E, F & G
Hubs: (6) 3/4" NPT Hubs Class III
Hub Locations: (2) on South Side, (2) on East Side & (2) on West Side NEMA 3, 4, 4X, 7 (B, C, D) 9 (E, F, G)
Switches: (12) Single Throw, Single Pole (SPST) Switches
Switch Amp Ratings: 10A @ 125V; 5A @ 250V
Mounting: Surface Mount
Toll Free: 1-800-369-6671
Intl: 1-214-616-6180
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The EPL-AEB-12.18.6-12XSPST-6X0.75IN from Larson Electronics is an Explosion Proof Switchbox that provides operators with a Class I and II, Divisions 1 and 2 cast aluminum switchbox provides twelve single throw, single pole (SPST) switches to energize NEMA starters and is designed to hold electrical equipment up to 12" by 18" by 6" in size. This explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-12.18.6-12XSPST-6X0.75IN explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 12" in length by 18" in width by 6" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Mounting is provided by four ears, two per side of the enclosure. The EPL-AEB-12.18.6-12XSPST-6X0.75IN is also equipped with six 3/4" NPT hubs. The hub locations are as follows: two (2) on the south side, two (2) on the east side and two (2) on the west side. Switches: The EPL-AEB-12.18.6-12XSPST-6X0.75IN includes twelve single throw, single pole (SPST) switches that are designed to allow operators to energize NEMA starters within hazardous locations. Each switch is clearly labeled for both on and off. The switches are rated for 10 amps at 125V and 5 amps at 250V.
