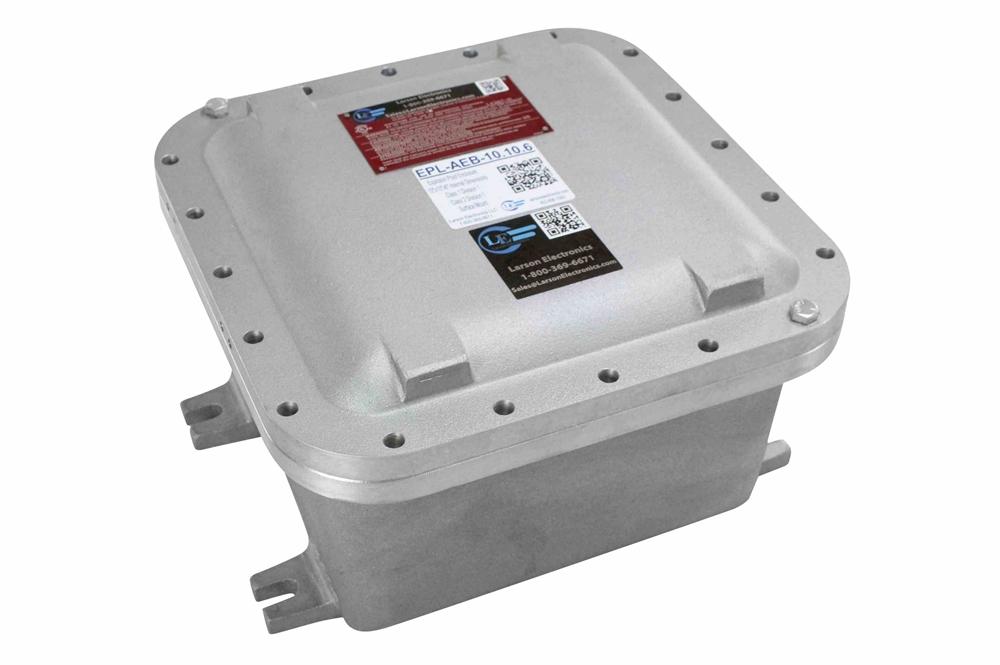

Explosion Proof Enclosure - 14" x 14" x 6" Int. Dims. - C1D1 - (8) Hubs - Surface Mount

LARSON ELECTRONICSSKU: PL3-EPL-AEB-14.14.6-MOD1
filler

Price:
Sale price$14,204.00

Description

Specifications / Additional Information
EPL-AEB-14.14.6-MOD1 Explosion Proof Enclosure - N4X Features/Ratings
Internal Dimensions: 14"L x 14"W x 6"H Class I, Division 1 & 2
External Dimensions: 19.25"L x 19.25"W x 9.4"H Class II, Division 1 & 2
Weight: 65 lbs
Materials: Cast Aluminum, Stainless Steel
Mounting: Surface Mount
Hub Sizes: (2) 2" NPT, (4) 1" NPT, (2) 3/4" NPT
Hub Qty: (8)
Hub Locations: (1) 3/4" NPT @ North Side (Left Side), (1) 2" NPT @ North Side (Right Side), (1) 3/4" NPT @ South Side (Left Side), (1) 2" NPT @ South Side (Right Side), (4) 1" NPT @ West Side
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in the USA The Larson Electronics EPL-AEB-14.14.6-MOD1 explosion proof enclosure provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 14" by 14" by 6" in size. Tapped with eight NPT hubs, this explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-14.14.6-MOD1 explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 14" in length by 14" in width by 6" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. A total of eight NPT hubs are available for conduit entries into the enclosure. The hub sizes and locations are as follows: one 3/4" NPT @ North Side (Left Side), one 2" NPT @ North Side (Right Side), one 3/4" NPT @ South Side (Left Side), one 2" NPT @ South Side (Right Side) and four 1" NPT @ West Side. Mounting is provided by four ears, two per side of the enclosure.
