Explosion Proof Enclosure w/ 13"x13" Viewing Window - Class I, II, III - 18"x24"x8" Intl Dims - N4X

LARSON ELECTRONICSSKU: PL3-EPL-AEB-18.24.8-VW-13X13
filler

Price:
Sale price$22,130.99

Description

Specifications / Additional Information
EPL-AEB-18.24.8-VW-13X13 Explosion Proof Enclosure Features/Ratings
Listing: United States - Canada Listed for NEC and CEC
Internal Dimensions: 18"L x 24"W x 8"H Class I, Divisions 1 & 2, Groups B, C, D
External Dimensions: 22 7/8"L x 28 7/8"W x 12 13/16"H Class II, Divisions 1 & 2, Groups E, F, G
Pan Dimensions: 16 1/2"L x 22 1/2"W Class III
Available Depth for Devices: 9 7/16" NEMA Type 4, 7, 9
Viewing Window Dimensions: 13"H x 13"L IP66
Weight: - UL 50 Certified
Maximum Conduit Size: - UL 1203 Certified
Maximum Operators on Lid: 24 (6 rows of 4) - Standard; 150 (19 rows of 13) - Miniature CSA C22.2 No 25 & 30 Certified
Total Hub Quantity: 0
Lid (Top) Hubs: 0
North Side Hubs: 0
South Side Hubs: 0
East Side Hubs: 0
West Side Hubs: 0
Bottom (Back/Base) Hubs: 0
Conduit: Operator Provided
Operating Window: N/A
Hinges Included: No
Hinges Material: N/A
Internal Mounting Pan Included: N/A
Internal Mounting Pan Taps: N/A
Internal Mounting Pan Material: N/A
Internal Mounting Pan Dimensions: N/A
Internal Grounding Lug: N/A
Breather Plug: N/A
Drain Plug: N/A
Ambient Operating Temp Range: -
Operating Temp Rating: -
Enclosure Material: Copper Free Cast 359 Aluminum Alloy (less than 3/10 of 1%)
Hardware Material: Zinc Plated/Coated Steel
Enclosure Finish: Natural Aluminum; Custom Available
Mounting: Surface Cast-on Mounting Feet
Mounting Leg Height: -
Mounting Dimensions: 18 3/8" x 21 3/4" Toll Free: 1-800-369-6671
Mounting Bolt Size: 1/8"
Shipping Weight: 239 lbs
Shipping Dimensions: 48"L x 48"W x 20"H
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

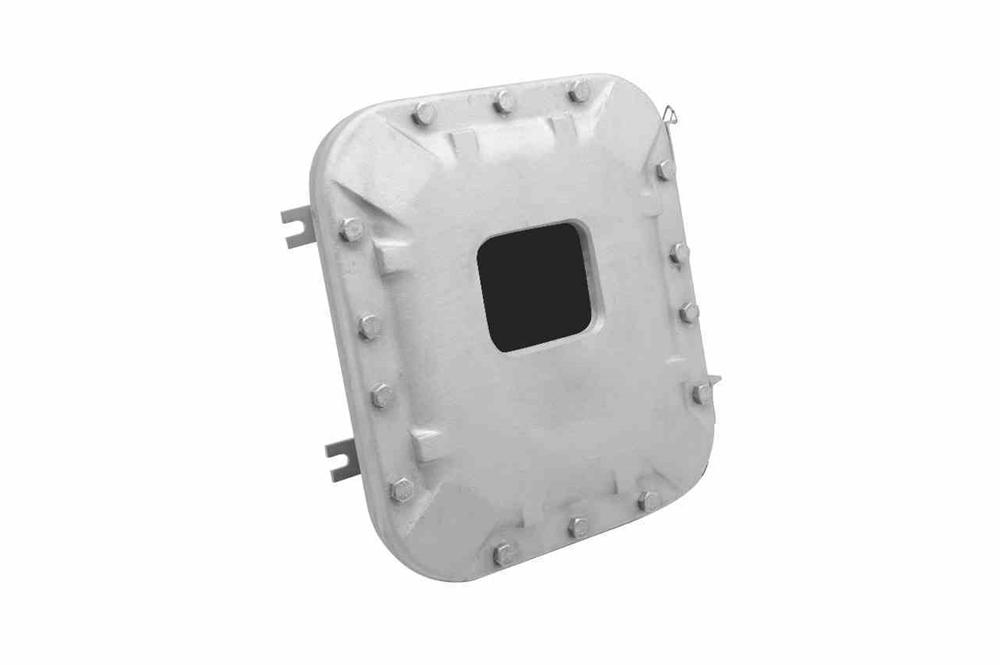

The EPL-AEB-18.24.8-VW-13X13 from Larson Electronics is an Explosion Proof Enclosure that provides operators with a Class I and II, Divisions 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 18" by 24" by 8" in size. This explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. The EPL-AEB-18.24.8-VW-13X13 is also equipped with a 13" x 13" viewing window on the lid that allows operators to see enclosed devices. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-18.24.8-VW-13X13 explosion proof enclosure is made of cast aluminum alloy, equipped with steel bolts and includes a weatherproof gasket for a NEMA 4 protection rating. This hazardous location device enclosure box is NEMA Type 4, 7 and 9 rated. The internal cavity of this flameproof enclosure measures 18" in length by 24" in width by 8" in height. A backplate is available for this unit at an extra cost. Message for more information or call us today at 800-369-6671. This explosion proof enclosure is designed to house a wide range of compact electronics, control stations, meters, relays, starters, circuit breakers, terminal blocks and industrial equipment, for safe use in combustible work sites. Other applications include systems requiring junction, pull and/or splice boxes.
Click Photos to Enlarge
Click To Enlarge Click To Enlarge
Larson Electronics can customize each unit with drilled and tapped operator hubs and/or conduit hubs per customer request. Please view the above and below images for orientation. When looking at the top cover (labeled Lid), all four sides are labeled for the orientation when looking at the Lid. All hubs are CNC machined for precision. Please see below specifications table for included taps and dimensional drawing for exact locations.
Click To Enlarge Click To Enlarge
Construction: Each unit in the EPL-AED series is certified to NEC standards for United States and CEC Canada. We offer an ATEX/IEC Ex model for global applications (ATEX-EPL-AED series). These explosion proof enclosures are NEMA 4 rated, for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4X equipment can be equipped upon request. NEMA 4X models include all stainless steel external hardware. Operator lid hinges can be fitted on the enclosure for regular opening and closing. Breather plugs, drain plugs, and grounding lugs can be added at customer request. Customization: Larson Electronics can customize this explosion proof enclosure for compatibility with existing systems, assemblies, work flows and processes or assist in designing units for new installation. We can add indicator lights, windows, hinges, operator handles, push button switches, momentary push button switches, emergency stop push buttons, selector switches, on/off switches, terminal blocks, relays, PLCs, mounting pans and more. Customized labels are also available for each operator in order to meet various requirements. Unless otherwise specified in the specification tables and drawing, each unit comes without factory conduit hub taps. Conduit openings can be tapped on all sides and back of the explosion proof enclosure. Tapping of conduit hubs is facilitated at Larson Electronics using a CNC machine for precise cutting. Larson Electronics offers customization on conduit opening size and locations. Taps include female NPT (National Pipe Thread), female BSPT (British Standard Pipe Thread), and Metric ISO thread. Please contact us for specific requirements. Additional equipment can be provided from factory, including nipples, unions, seal-offs, and operator devices. Suggested Applications: The EPL-AED series of explosion proof enclosures are approved for use within indoor and outdoor environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications. Applications include but not limited to aircraft maintenance, alcohol processing, aerospace, chemical manufacturing, coke processing, cold storage, compressed natural gas (CNG) facilities, cranes, cryogenics, distilleries, food processing, fuel storage, gas processing plants, grain processing, laboratories, liquefied natural gas (LNG) facilities, liquid propane gas (LPG), machine operations, manufacturing, marine vessels, methane production, mining, offshore, oil drilling rigs, oil refineries, paint spray booths, paper processing, petrochemical, petroleum refineries, pharmaceuticals, power plants, production refineries, sand blast cabinets, sewage and septic tanks, shipyards, solvent and cleaning areas, storage facilities, tank farms, tankers, textile, washdown areas, waste treatment plants, and woodworking. .
