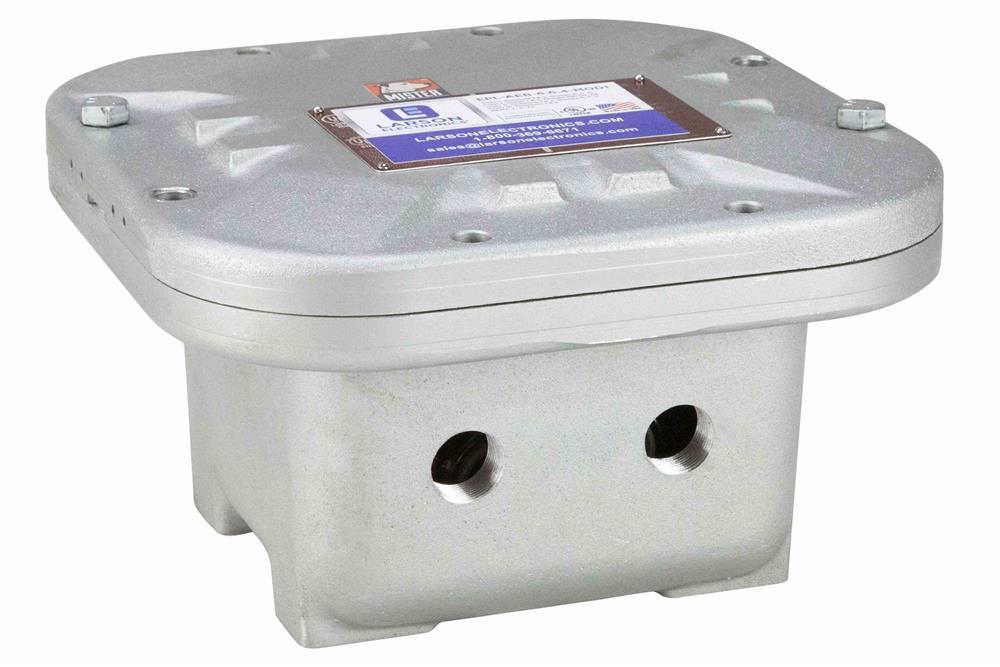

Explosion Proof Enclosure - 6"x6"x4" Internal Dimensions - Surface Mount - (5) M25 Hubs - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-EPL-AEB-6.6.4-MOD1
filler

Price:
Sale price$5,591.99

Description

Specifications / Additional Information
EPL-AEB-6.6.4-MOD1 Explosion Proof Enclosure Ratings
External Dimensions: 10.32" x 10.32" x 6.09" Class I, Divisions 1&2 Groups B,C,D
Internal Dimensions: 6€-L x 6€-W x 4€-H Class I, Zones 1&2 Groups IIB+H2,IIA
Pan Dimensions: 5" x 5" Class II, Divisions 1&2 Groups E,F,G
Available Dimensions for Devices: 5.73" x 5.73" x 4.31" Class III
Weight: 18 lbs NEMA 3, 4, 4X
Maximum Conduit Size: 2" CENELEC/ATEX/IEC Ex
Maximum Operators on Lid: 2 Rows of 2 = 4 Ex d IIB + H2 T5 or T6
Mounting Leg Height: 0.19" Ex tD A21 IP66
Mounting Dimensions (Horizontal): 7.88" Tamb = + 60°C
Mounting Dimensions (Vertical): 4"
Cover Type: Bolted
Materials: Copper-free Aluminum
Mounting: Surface Mount
Backplate: N/A
Total Hubs: 5 Toll Free: 1-800-369-6671
Hub Size: (5) M25
Hub Location: (2) M25 @ North Side, (2) M25 @ West Side, (1) M25 @ South Side
Color: Grey
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
The Larson Electronics EPL-AEB-6.6.4-MOD1 Explosion Proof Enclosure provides operators with a Class I and II, Divisions 1 and 2 copper-free aluminum enclosure designed to hold electrical equipment up to 6" by 6" by 4" in size. This NEMA 4X rated explosion proof device is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-6.6.4-MOD1 explosion proof enclosure is made of copper-free aluminum and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 6" in length by 6" in width by 4" in height. This unit caters to a maximum of 4 operators on the lid (2 rows of 2 = 4) and a maximum conduit size of 2". Equipped with a bolted cover, the grey explosion proof enclosure is compatible with surface-mount applications. This explosion proof device is designed for Class I, Divisions 1 & 2 (Groups B,C,D); Class I, Zones 1 & 2 (Groups IIB+H2,IIA); Class II, Divisions 1 & 2 (Groups E,F,G) and Class III rated combustible sites. The NEMA 4X rating makes the unit suitable for both indoor and outdoor applications, as well as ensures protection from water, dust, moisture, dirt and external ice formation. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Hubs: The EPL-AEB-6.6.4-MOD1 contains a total of five M25 hubs. Two M25 hubs are located on the north side, two M25 hubs are located on the west side and one M25 hub is located on the south side of the explosion proof enclosure. Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting Systems, Oil and Gas, Marine Sites, Textile, Food Processing, Chemical Storage, Wet areas or Locations Where Combustible Dust is Present. At Larson Electronics, we can build enclosures to your specifications. Our craftsmen can custom build any lighting system and/or accessories to fit the unique demands of your operation. A commitment to honesty, quality, and dependability has made Larson Electronics a leader in the lighting and electronics business since 1973. If this model does not meet your needs, please contact us at 1-800-369-6671 or .
