Explosion Proof Enclosure w/ Viewing Window - 6"x6"x4" Int. Dims. - C1D1 - (6) Taps - Surface Mount

LARSON ELECTRONICSSKU: PL3-EPL-AEB-6.6.4-VW.3X1-2X1.5-4X0.75
filler

Price:
Sale price$8,454.00

Description

Specifications / Additional Information
EPL-AEB-6.6.4-VW.3X1-2X1.5-4X0.75 Explosion Proof Enclosure Features/Ratings
Listing: NRTL Listed for United States and Canada Class I, Division 1 Explosion Proof
Internal Dimensions: 6"-L x 6"-W x 4"-H Class II, Division 1 Explosion Proof
Viewing Window Dimensions: 3" x 1"
Weight: 40 lbs Special Orders - Requirements
Mounting: Surface Mount
Hub Sizes: (2) 1.5" NPT and (4) 3/4" NPT Toll Free: 1-800-369-6671
Hub Qty: 6
Hub Locations: (2) 1.5" NPT on East Side, (2) 3/4" NPT on West Side, (1) 3/4" NPT on North Side and (1) 3/4" NPT on South Side
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

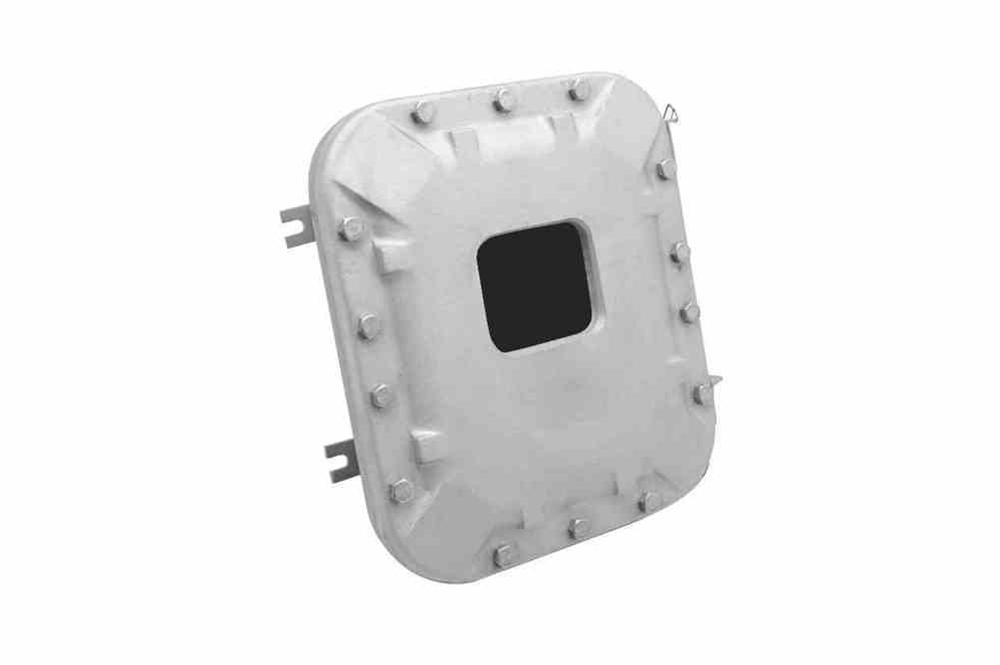

Made in the USA The Larson Electronics EPL-AEB-6.6.4-VW.3X1-2X1.5-4X0.75 explosion proof enclosure provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 6" by 6" by 4" in size. Factory tapped with six NPT holes (two 1.5" NPT hubs and four 3/4" NPT hubs) and equipped with a 3" x 1" viewing window, this explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-6.6.4-VW.3X1-2X1.5-4X0.75 explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 6" in length by 6" in width by 4" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. This unit is equipped with a 3" x 1" viewing window at the cover. Six NPT hubs are factory tapped to allow conduit entry into the enclosure. The hub sizes and locations are as follows: two 1.5" on the east side, two 3/4" on the west side, one 3/4" on the north side and one 3/4" on the south side. Mounting is provided by four ears, two per side of the enclosure.
