Explosion Proof Enclosure - 8" x 12" x 6" Int. Dims. - C1D1 - (2) 2" Taps - Viewing Lens

LARSON ELECTRONICSSKU: PL3-EPL-AEB-8.12.6-VG-2X2NS
filler

Price:
Sale price$8,317.99

Description

Specifications / Additional Information
EPL-AEB-8.12.6-VG-2X2NS Explosion Proof Enclosure Features/Ratings
Internal Dimensions: 8"L x 12"W x 6"H Class I, Division 1 & 2, Explosion Proof
Viewing Lens Dimensions: 3" x 6" Class II, Division 1 & 2, Explosion Proof
Weight: -
Mounting: Surface Mount
Hub Sizes: (2) 2" NPT Toll Free: 1-800-369-6671
Hub Qty: 2 Intl: 1-214-616-6180
Hub Locations: (1) 2" NPT on North Side and (1) 2" NPT on South Side
Conduit: Operator Provided
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

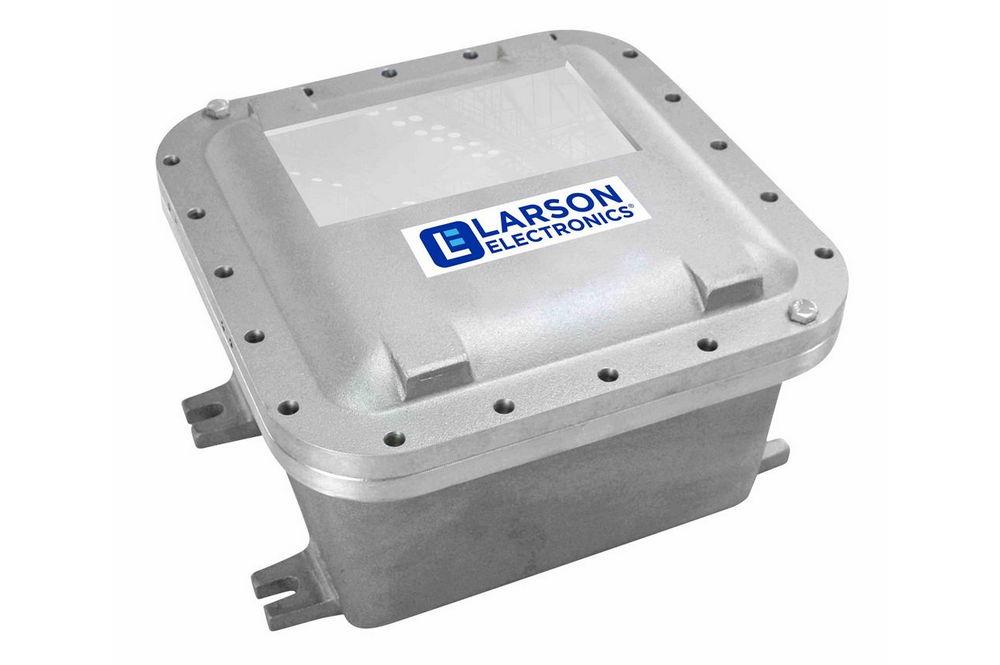

Made in the USA The Larson Electronics EPL-AEB-8.12.6-VG-2X2NS explosion proof enclosure provides operators with a Class I and II, Division 1 and 2 cast aluminum enclosure designed to hold electrical equipment up to 8" by 12" by 6" in size. Factory tapped with two 2" NPT hubs, this explosion proof enclosure is ideal for indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. A 3" x 6" rectangular viewing lens at the cover of the unit allows operators to view digital readings with ease. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEB-8.12.6-VG-2X2NS explosion proof enclosure is made of cast aluminum, is equipped with stainless steel hinge and bolts, and includes a watertight gasket for a NEMA 4X protection rating. The internal cavity of this flameproof enclosure measures 8" in length by 12" in width by 6" in height. A removable backplate for easy mounting of equipment outside of the enclosure can be provided at an additional cost. Two NPT hubs are factory tapped to allow conduit entry into the enclosure. The hub sizes and locations are as follows: one 2" on the north side and one 2"" on the south side. Mounting is provided by four ears, two per side of the enclosure. This explosion proof enclosure features a 3" x 6" rectangular viewing lens at the cover. The clear lens allows operators to view digital readings for devices or meters inside the unit. Applications: Chemical processing, transmitters, agricultural sites, grain storage centers, flow meters, flammable work sites, oil and gas facilities, gas analyzers, food processing plants, manufacturing, warehouses and more.
