|EPL-AEC-5.375-1X0.75S Explosion Proof Device Box Instrument Enclosure - Class I, II, III Div 1 & 2||Ratings/Approvals|
|Listing: NRTL Listed for United States and Canada; ATEX/IECEx Rated||Class I, Divisions 1 & 2, Groups B, C, D|
|Device Type: Explosion Proof Instrument Enclosure||Class I, Zones 1 & 2, Groups IIB+H2, IIA|
|External Dimensions: 9.13" x 9.63" x 7.18"||Class II, Divisions 1 & 2, Groups E, F, G|
|Internal Dimensions: 7.06" x 8.31" x 4.13"||Class III, Divisions 1 & 2|
|Lens Opening: 5.38"||ATEX/IEC Ex|
|Internal Volume: 305 cu. in.||Ex d IIC T6 or T5|
|Weight: 60 lbs.||Ex tD A21 IP66 T80°C or T90°C IP66|
|Material: Copper-free Aluminum||Ta = -20°C to +60°C|
|Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish||NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G)|
|Design: Single Box|
|Hub: (1) 3/4" NPT @ South Side|

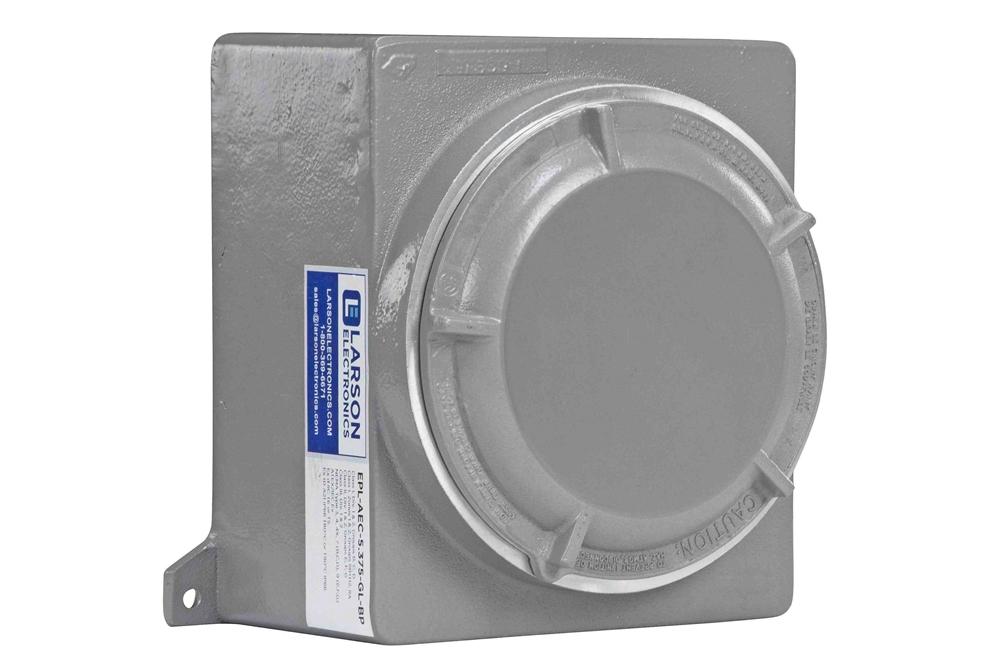

|The EPL-AEC-5.375-1X0.75S from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. Constructed of copper-free aluminum, the explosion proof enclosure may be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. The EPL-AEC-5.375-1X0.75S offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is equipped with a 5.38" opening and 305 cubic inches of volume. The ATEX/IECEX-rated enclosure is constructed of copper-free aluminum. This unit is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Hubs: The EPL-AEC-5.375-1X0.75S contains one 3/4" NPT hub at the south side of the unit. Cast mounting lugs are available for mounting. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.|
