Explosion Proof Device Box Instrument Enclosure - Class I, II, III - ATEX/IECEX Rated

LARSON ELECTRONICSSKU: PL3-EPL-AEC-7.75
filler

Price:
Sale price$3,400.00

Description

Specifications / Additional Information
EPL-AEC-7.75 Explosion Proof Device Box Instrument Enclosure Ratings
Device Type: Explosion Proof Box w/ Cover Listed for United States, Canada, Europe, Asia
External Dimensions: 12.18" x 11" x 11" Class I, Divisions 1&2, Groups B,C,D
Internal Dimensions: 9.5" x 10.5" x 13.56" Class I, Zones 1&2, Groups IIB+H2,IIA
Cover Diameter: 9.63" Class II, Divisions 1&2, Groups E,F,G
Weight: - Class III
Design: Box w/ Blank Cover Type 3, 4, 4X
Volume: 615 cubic in. ATEX/IEC Ex
Material: Copper-free Aluminum Ex d IIC T6 or T5
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish Ex tD A21 IP66 T80°C or T90°C IP66
Mounting: Surface Ta = -20°C to +60°C
Maximum Conduit Size: 3.5"
Color: Gray





' Product Overview '

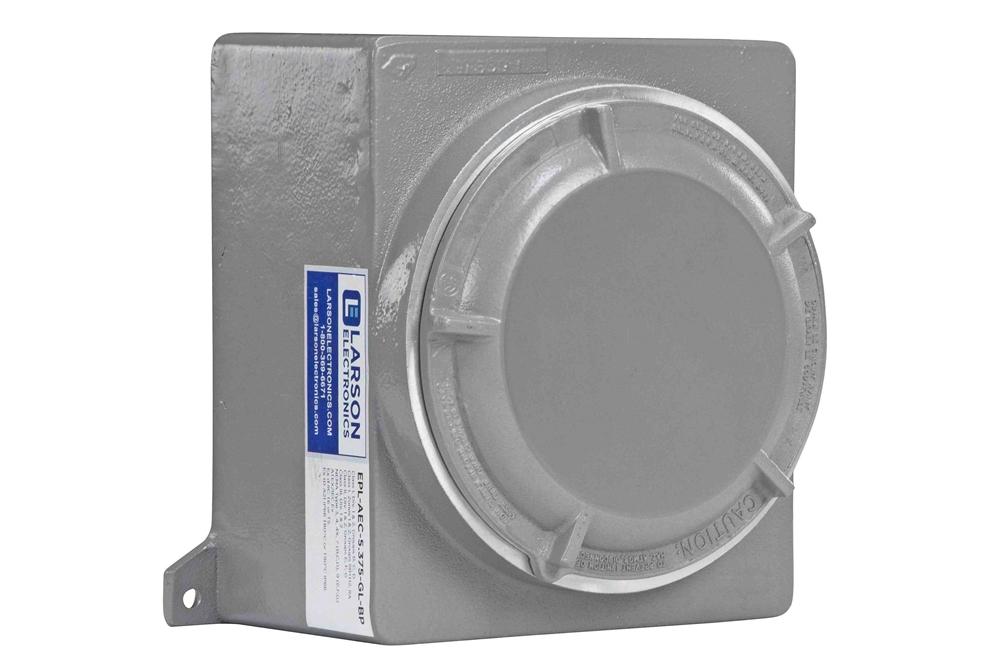

The EPL-AEC-7.75 from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. This unit contains 615 cubic inches of volume and is constructed of copper-free aluminum. The explosion proof enclosure can be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. The EPL-AEC-7.75 offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This explosion proof box contains a blank cover and 615 cubic inches of volume. Constructed of copper-free aluminum, four openings at every corner of the unit are available for surface mounting applications. The explosion proof device box is compatible with conduit sizes up to 3.5". This unit is rated Type 3, 4 and 4X and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.
