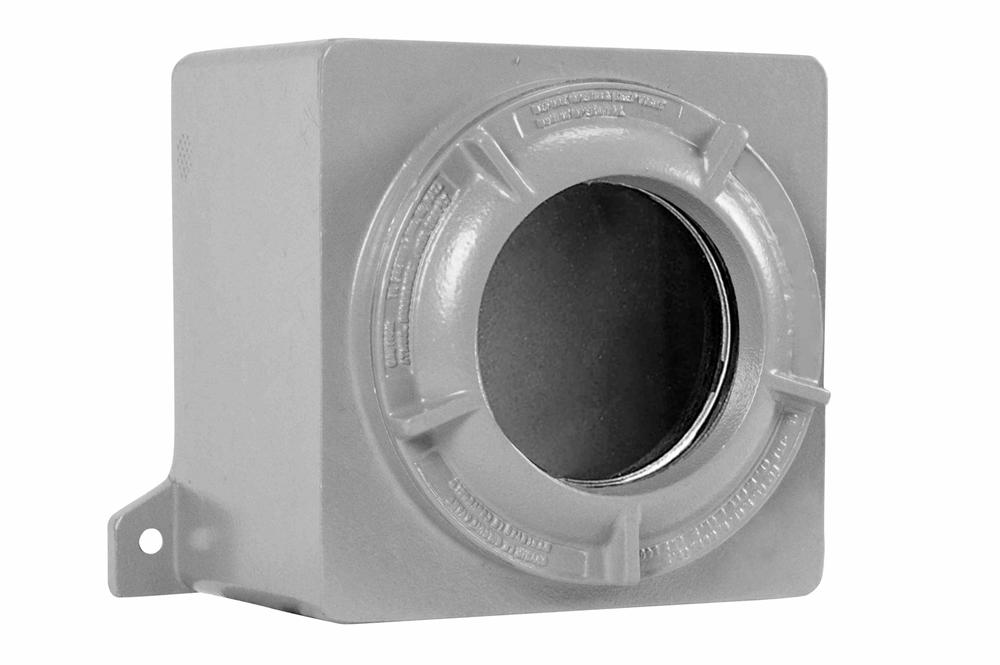

Explosion Proof Device Box Instrument Enclosure - Class I, II, III - ATEX/IECEX - 7.75" Viewing Window - (9) Hubs

LARSON ELECTRONICSSKU: PL3-EPL-AEC-7.75-GL-9X0.5-M1
filler

Price:
Sale price$8,038.00

Description

Specifications / Additional Information
EPL-AEC-7.75-GL-9X0.5-M1 Explosion Proof Device Box Instrument Enclosure Ratings
Listing: NRTL Listed for United States, Canada, Europe, Asia Class I, Divisions 1&2, Groups B,C,D
Device Type: Explosion Proof Box w/ Viewing Window Class I, Zones 1&2, Groups IIB+H2,IIA
External Dimensions: 9.5" x 8.87" x 7.93" Class II, Divisions 1&2, Groups E,F,G
Internal Dimensions: 7.63" x 9.13" x 4.93" Class III
Viewing Window Dimensions: 7.75" Type 3, 4, 4X
Weight: - ATEX/IEC Ex
Design: Box w/ Viewing Window Ex d IIC T6 or T5
Volume: 570 cubic in. Ex tD A21 IP66 T80°C or T90°C IP66
Ambient Operating Temp: -20°C to +60°C Ta = -20°C to +60°C
Temp Rating: T5/T6
Material: Copper-free Aluminum
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish
Internal Back Plate: N/A
External Mounting: Surface
Maximum Conduit Size: 3.5"
Hub Quantity/Size: (9) 1/2" NPT
Hub Location: (3) 1/2" NPT @ West Side, (3) 1/2" NPT @ East Side, (3) 1/2" NPT @ South Side
Color: Gray
' Product Overview '
The EPL-AEC-7.75-GL-9X0.5-M1 from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. This unit contains 570 cubic inches of volume and is constructed of copper-free aluminum. The explosion proof enclosure can be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. The EPL-AEC-7.75-GL-9X0.5-M1 offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This explosion proof box contains a 7.75" viewing window and 570 cubic inches of volume. Constructed of copper-free aluminum, four openings at every corner of the unit are available for surface mounting applications. The explosion proof device box is compatible with conduit sizes up to 3.5". This unit is rated Type 3, 4 and 4X and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Hubs: The explosion proof enclosure contains nine 1/2" NPT hubs. Three 1/2" NPT hubs can be found on the south side, west side and east side of the unit. The hubs on the west and east sides are in a staggered (downward) configuration. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.
