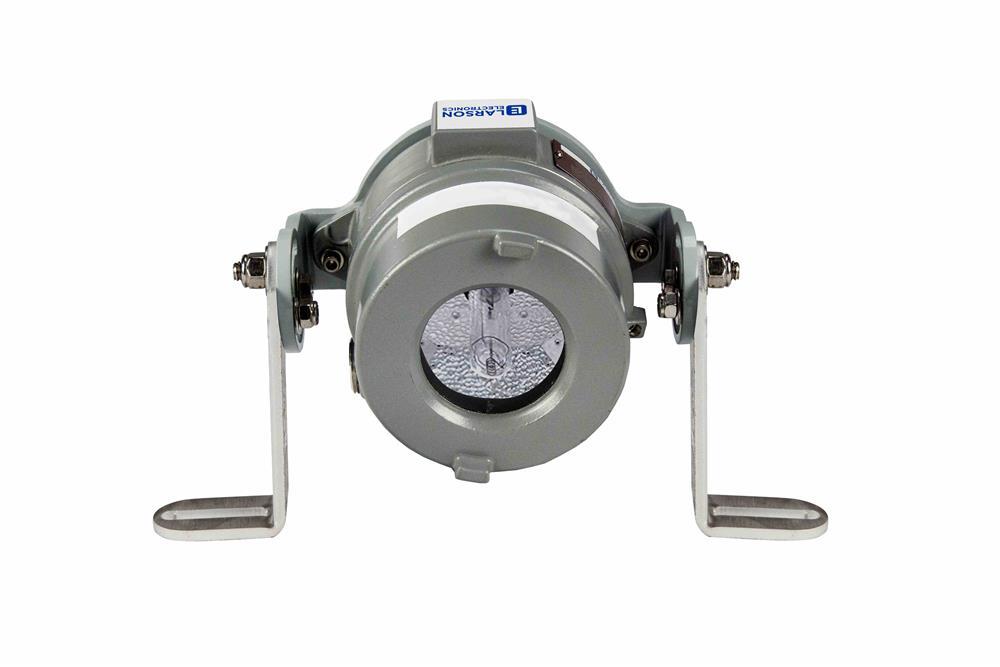

Explosion Proof Lamp Enclosure - Class I, II, III - PGZ18 Socket - Quartz Glass Lens - L Brackets

LARSON ELECTRONICSSKU: PL3-EPL-AED-2X-4IN.GL-2IN-MOD1
filler

Price:
Sale price$3,874.00
 More payment options

Description

Specifications / Additional Information
EPL-AED-2X-4IN.GL-2IN-MOD1 Explosion Proof Lamp Enclosure Ratings/Approvals
Listing: United States, Canada, European Union, International Class I, Division 1&2 Groups A,B,C,D
Device Type: Double-sided Explosion Proof Enclosure for Lamp Class I, Zones 1&2 Groups llB+,H2,llA
External Dimensions: 8.16" x 5.06" Class II, Division 1&2 Groups E,F,G
Lens Opening: 2-5/16" x 3/8" Thick Class III
Weight: 12 lbs Ta = -60°C to +70°C
Lamp Socket: PGZ18 Socket Type 3, 4, 4XF
Lamp Type: 315W Ceramic Metal Halide (Not Included)
Custom Reflector: Internal
External Ballast: Customer Provided
Material: Copper-free Aluminum
Enclosure Finish: Silver Powder Epoxy Paint, Electrostatically Applied
Lens Material: Quartz Glass Lens
Hardware Materials: Zinc-plated Steel w/ Green Dye (Ground Screw), Cadmium-plated Steel (Allen Head Cover Screw)
O-ring Gasket Material: (2) Neoprene Rubber
Mounting: Adjustable L-brackets
Hub Quantity:1
Hub Size: (1) 3/4" NPT
Hub Location: (1) 3/4" NPT
' Product Overview '
The EPL-AED-2X-4IN.GL-2IN-MOD1 from Larson Electronics is an Explosion Proof Lamp Enclosure that houses 315W ceramic metal halide lamps for use in hazardous locations, confined spaces and industrial facilities. This double-sided, threaded unit is equipped with a PGZ18 socket, internal custom reflector and quartz glass lens. Constructed of copper-free aluminum, the system requires an external, customer-provided ballast to complete the assembly. The EPL-AED-2X-4IN.GL-2IN-MOD1 is designed for installation in combustible sites. This double-sided unit is equipped with a PGZ18 socket for 315W ceramic metal halide lamps (lamp not included). A customer-provided external ballast must be installed with the system. An internal, custom reflector inside the enclosure ensures even light distribution over the target area. This C1D1 rated enclosure is constructed of copper-free aluminum finished with powder epoxy paint. Protected by a 3/8" thick quartz glass lens and two neoprene rubber O-ring gaskets, the ground screws are made out of zinc plated steel with green dye, while the Allen head cover screw is constructed of cadmium plated steel. The explosion proof device box is rated NEMA Type 3, 4 and 4X, which is designed to withstand the rigors of demanding environmental and operating conditions, including ingress of moisture, water spray, liquid, oil and dust, while preventing damage from corrosion and external ice formation. Hubs: The EPL-AED-2X-4IN.GL-2IN-MOD1 contains two, 3/4" NPT hubs on the enclosure. One, 3/4" NPT hub is located on the power side and the other 3/4" NPT hub is located on the instrument side. Mounting: This lamp enclosure is is compatible with several mounting requirements and configurations. For surface mounting, the device can be attached directly using a nut, flanged adapter collar or hinged bracket. Dual L-brackets allow robust, angled positioning of the light head.
