12" x 12" x 6" Hazloc Stainless Steel Junction Box - C1D2/ATEX - (2) 1" NPT Hubs - Type 4X - IP66
12" x 12" x 6" Hazloc Stainless Steel Junction Box - C1D2/ATEX - (2) 1" NPT Hubs - Type 4X - IP66
| EPL-AEH-SS-12.12.6-N4X-BP-2X1S ATEX Rated Junction Box | Ratings |
| Internal Dimensions: 10.93"-H x 10.93"-W x 5.74"-D | Class I, Division 2 Groups A,B,C,D |
| External Dimensions: 12"-H x 12"-W x 6"-D | Class I, Zones 1&2 Groups IIA,IIB,IIC |
| Distance Between Mounting Lugs: 10.69" or 13.63" - Depending on Direction of Lug | Class II, Groups E,F,G |
| Weight: 14 lbs | Class III |
| Mechanical Resistance: Impact Energy 7 Nm | Ex e IIC Gb, Ex i IIC Gb |
| Ambient Temp: -20°C to +40°C | Ex tb IIIC Db IP66 |
| Operating Temp: -20°C to +85°C | Ex tb / Zone 21&22 AEx tb IIIC |
| Cover Type: Hinge - Concealed, Removable Pins | T80C /T100C/T130C Db IP66 |
| Body and Cover Material: 316 Stainless Steel | Type 3, 4 & 4X |
| Hub Qty: (2) | EPDM Rubber Seal |
| Hub Location: (2) 1" NPT on South Side | Â |
| Â | |

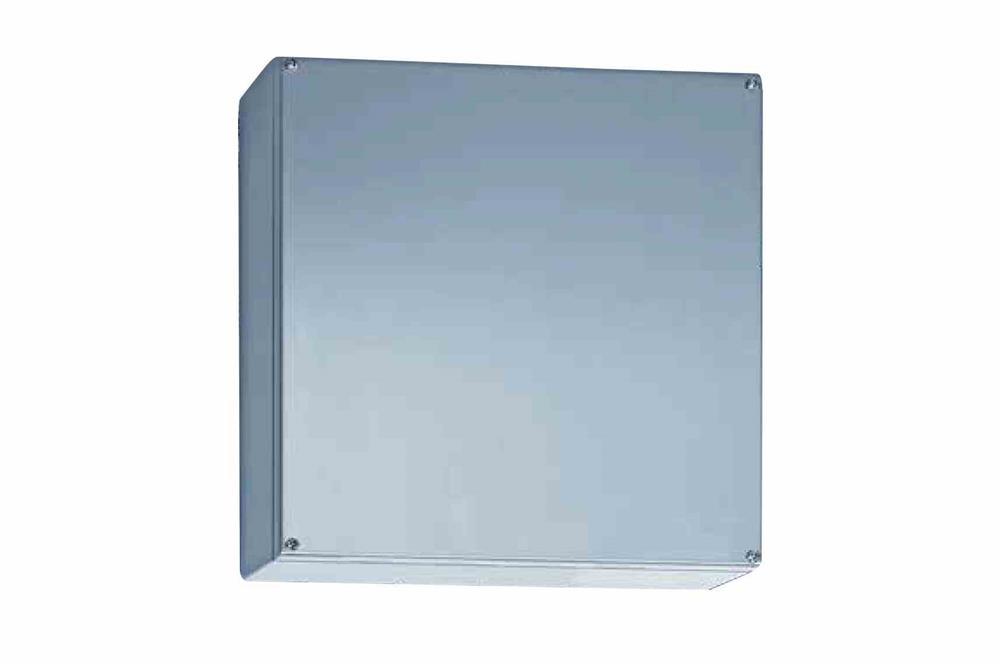

| The EPL-AEH-SS-12.12.6-N4X-BP-2X1S from Larson Electronics is a Hazardous Location Stainless Steel Junction Box that provides operators with a rugged enclosure that is designed to hold and protect equipment in flammable environments. This IP66-rated enclosure is ideal for Class I, Division 2 sites, as well as ATEX-rated environments and indoor or outdoor applications where flammable vapors, gases, or dusts exist or stand the potential to exist. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPL-AEH-SS-12.12.6-N4X-BP-2X1S hazardous location enclosure is made of 316 stainless steel and features an EPDM rubber seal. Equipped with a hinged cover that is concealed and contains removable pins, this Type 4X junction box measures 12" x 12" x 6" (external dimensions). Internal dimension measurements include 10.93" x 10.93" x 5.74". Operators are provided access to bi-directional mounting lugs for easy mounting on walls or surfaces. This unit contains two, 1" NPT hubs located at the south side of the enclosure. Applications: Offshore rigs, sewage and wastewater treatment plants, coal plants, gas facilities and any other sites where a hazardous location or ATEX-rated enclosure is needed. Â |
