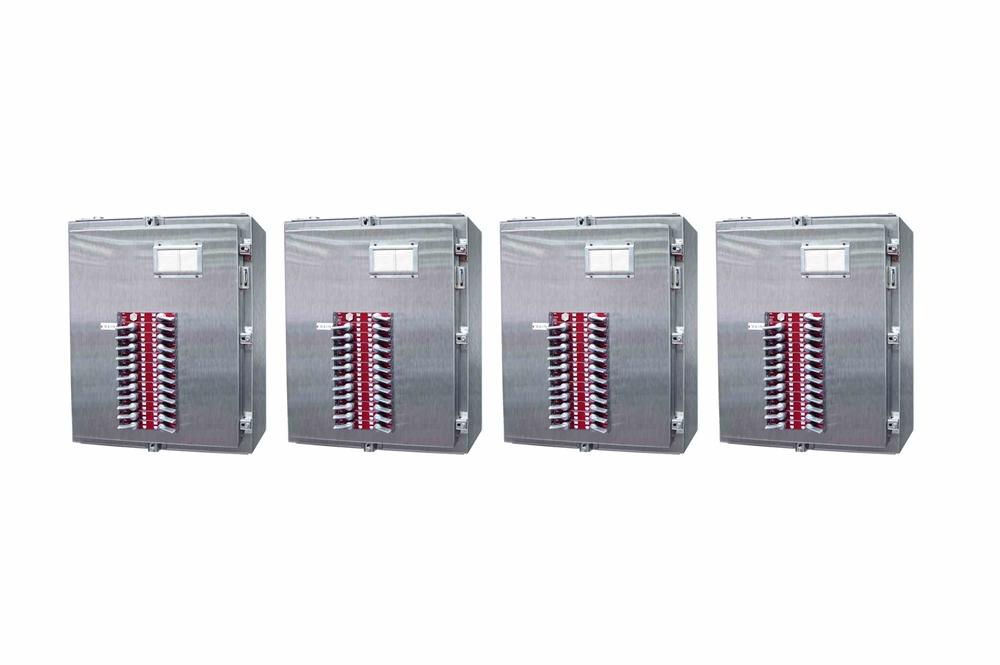

Explosion Proof Panel Kit - C1D2 - 480V - (1) Main Switchboard, (3) MLO Panelboards w/ Breakers - N4X
Explosion Proof Panel Kit - C1D2 - 480V - (1) Main Switchboard, (3) MLO Panelboards w/ Breakers - N4X
| EPL-AEP-1XSB-3XPNL-MOD1 Explosion Proof Panel Kit- NEMA 4X | Summary |
| Listing: United States, Canada | Class I, Division 2, Groups A,B,C,D |
| Unit Type: Explosion Proof Panel Kit | NEMA 4X |
| Dimensions: - | Â |
| Weight: - | Â |
| Voltage: 480V AC | Â |
| Main Switchboard: 3000A w/ (3) 1200A Panelboard Interiors Inside (1) Purged Enclosure - N4X | Â |
| Main Switchboard Protection: Main Breaker w/ 120V Shunt Trip, Purged System | Â |
| Panelboard 1: 1200A 480V MLO N4X | Â |
| Panelboard 1 Breakers: (2) 150A, (2) 100A, (5) 80A, (6) 60A, (1) 30A | Â |
| Panelboard 2: 1200A 480V MLO N4X | Â |
| Panelboard 2 Breakers: (2) 125A, (2) 100A, (6) 80A, (4) 60A, (1) 30A | Â |
| Panelboard 3: 1200A 480V MLO N4X | Â |
| Panelboard 3 Breakers: (1) 125A, (1) 100A, (5) 80A, (5) 60A, (9) 30A | |
| Panelboard Protection: 3P 35kAIC Branch Breakers, Purged System | |
| Wiring: #4/0 AWG Type W, 4/0 Ground | |
| Materials: Stainless Steel (Enclosure); Aluminum/316 Stainless Steel (Pressurization Device) | |
| Mount: Surface/Wall, Back Panel | |
| Color: Natural |
| The EPL-AEP-1XSB-3XPNL-MOD1 from Larson Electronics is an Explosion Proof Panel Kit for use in rugged work sites requiring protection from combustible compounds. This NEMA 4X rated unit contains one, main explosion proof switchboard protected by a purged enclosure and three, explosion proof panelboards with 3-pole, 35kAIC branch breakers. The system operates on 480V AC and is compatible with wall and surface mounting applications. The EPL-AEP-1XSB-3XPNL-MOD1 is designed for electrical systems in Class I, Division 2 rated sites. This explosion proof panel kit consists of one main explosion proof switchboard with a purging system and three explosion proof panelboards. Capable of operating on 480V AC, the NEMA 4X main switchboard is equipped with three, 1200-amp panelboard interiors protected by a main breaker with 120V shunt trip which is activated should purge pressurization fail or become compromised. The main switchboard feeds three, 1200A main lug only panelboards with 3-pole 35kAIC branch breakers and purging system. The first NEMA 4X explosion proof panelboard is equipped with the following breakers: (2) 150A, (2) 100A, (5) 80A, (6) 60A and (1) 30A. The second NEMA 4X explosion proof panelboard is equipped with the following breakers: (2) 125A, (2) 100A, (6) 80A, (4) 60A and (1) 30A. The third NEMA 4X explosion proof panelboard is equipped with the following breakers: (1) 125A, (1) 100A, (5) 80A, (5) 60A and (9) 30A. An included pressurization device enables the explosion proof system to be used in Class I, Division 2 rated environments. A NEMA 4X rating indicates that the explosion proof system provides a degree of protection against the ingress of water and debris, provides additional protection against corrosion and that the enclosure will not be damaged by external formation of ice. Mounting: The EPL-AEP-1XSB-3XPNL-MOD1 is compatible with wall, back panel or surface mounting applications. |
