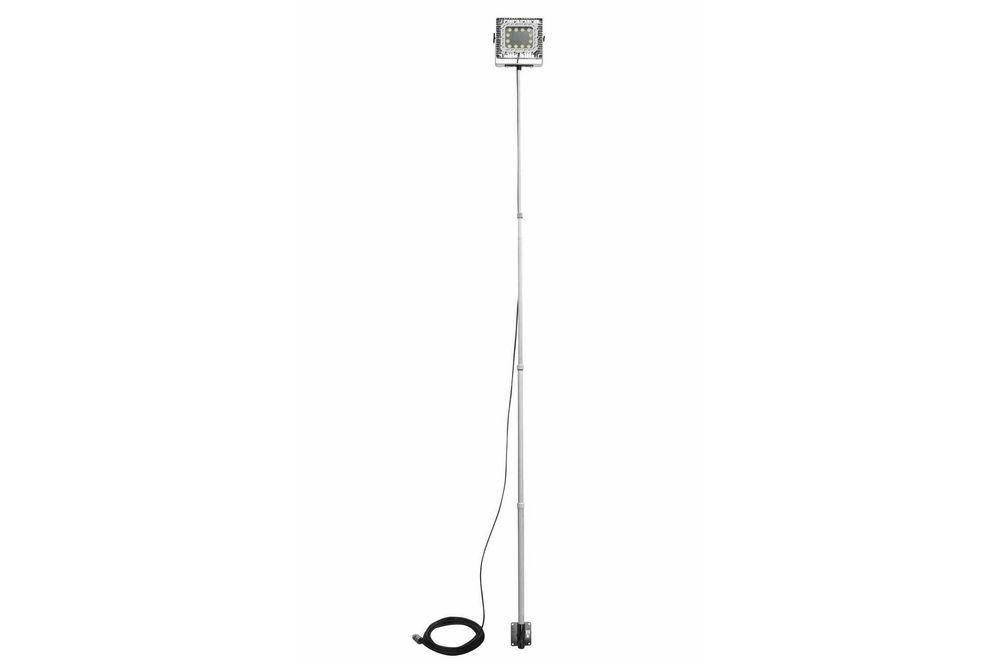

150W Explosion Proof Telescoping Anodized Aluminum Pole Mount LED Light Tower - 5-12' -Surface Mount

LARSON ELECTRONICSSKU: PL3-EPL-APM-150LED-RT
filler

Price:
Sale price$7,690.00

Description

Specifications / Additional Information
EPL-APM-150LED-RT Explosion Proof LED Tower Ratings/Approvals
Listing: United States & Canada Listed for United States and Canada
Lamp Type: LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 14"-W 16"-H 5"-D- Light Head - 5` to 12` Extendible Tower Class II, Divisions 1 & 2, Groups E,F,G
Weight: 50 Lbs Class III, Divisions 1 & 2
Voltage: 120-277V AC 50/60Hz Certified to UL 844 Ed. 13
Total Watts: 150 watts Certified to UL 1598
Total Lumens: 17,500 Certified to C22.2 No. 137 Rev 2009
Luminous Efficiency: 116.67 Lm/W Certified to C22.2 No. 250.0
Lamp Life: 60,000+ Hours T5 Temperature Rating
Color Temp: 5600K Paint Spray Booth Approved
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 60° or 125° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Amperage: 1.25A @ 120V, 0.63 @ 240V, 0.54 @ 277V Factory Sealed Light Fixture
Ambient Operating Temp Range:-50°C to +65°C 50 Foot SOOW Cable
Operating Temp Rating: T5 Adjustable Tower 5 - 12 Feet
Lamp Housing Material: Copper Free Cast Aluminum Direct Replacement for 400W MH Towers
Tower Material: Anodized Aluminum Tubing
Lens Material: Hardened Borosilicate Glass
Gasket Material: Silicone
Mounting: Telescoping Anodized Aluminum Tower w/ Flat Mounting Bracket
Wiring: 50` 16/3 SOOW Cable w/ explosion proof
Cord Caps: 15-Amp 5-15 (125V), 20-Amp 5-20 (125V), or 20-Amp 6-20 (250V)

' Product Overview '
Made in the USA The EPL-APM-150LED-RT Telescoping Pole Mounted Explosion Proof LED Light Tower from Larson Electronics produces 17,500 lumens of light capable of illuminating an area 9,500 square feet in size. This adjustable LED light tower is designed for permanent mount operation, offering adjustable height from 5` to 12`, and ideal for use in demanding conditions including marine environments and winter environments. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR QUADPODS* The EPL-APM-150LED-RT is a telescoping pole mount explosion proof LED lighting system and provides 9,500 square feet of work area coverage with 17,500 lumens of light output. This adjustable LED light tower has a removable LED light head mounted on top of a non-sparking aluminum tower. The LED light head on this unit produces a wide flood pattern of light that is ideal for illuminating large workspaces and job sites. This light is designed for heavy duty use in demanding conditions including emergency services, mining, construction, marine, and industrial operations where durability and reliability is critical. This LED light is comprised of an adjustable LED light head mounted atop a telescoping pole fabricated from anodized aluminum. This adjustable and collapsible tower can be extended to twelve feet and collapsed to five feet. The LED light fixture assembly can be removed by releasing the hand knob and sliding the light and mounting bracket off of the center support while the legs can be collapsed, aiding in deployment, storage and transport. The lamp can be easily adjusted vertically and locked into position. This telescoping LED work light is comprised of a removable LED light head mounted atop an anodized aluminum adjustable pole fabricated with 2.5" by 2.5" by 1/8" thick tubing for the first stage, 2" by 2" by 1/8" thick tubing for the second stage and 1" by 1" by 1/8" thick tubing for the third stage. This light tower is anodized and the brackets are powder coated for durability and rust resistance. This adjustable and collapsible tower can be extended to twelve feet in and collapsed to five feet via knurled knobs that are tightened or loosened to allow for height adjustments by the operator. The lamp can independently be adjusted up, down or from side to side and locked into position. The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This hazardous location LED light tower is equipped with 50` of 16/3 SOOW oil, chemical, abrasive, and water resistant cable with blunt cut end, which is combined with adjustability offered by the LED light head provides ample length for tower placement and optimal coverage of the workspace. The LED light head on this tower contains twelve 12.5 watt LEDs producing 116.67 lumens each. These LEDs are arranged in rows and paired with high purity optics to produce 17,500 lumens and a 60 degree flood beam while only drawing 1.25 amps on 120V, making these units ideal for use as highly efficient yet powerful work and area lights. The EPL-APM-150LED-RT hazardous location LED light is an ideal and direct replacement for fragile and hot running 400 watt metal halide floodlights. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts and models with in-line step-down transformers for high voltage to low voltage operations. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. This LED light produces 17,500 lumens with a color temperature of 5600K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor portable work lights. This LED light tower retains 80% of its lumen output after 60,000 hours of use, far longer than metal halide or halogen work lamps. Mounting: The EPL-APM-150LED-RT is equipped with a powder coated flat mounting bracket that is suitable for mounting on walls, containers, vehicles and other interior and exterior flat surfaces.
Made in USA Quality Superior LED Benefits
1. Approved Class I Div 1-2 Class II Div I-2 2. Led lamp head requires no lamping and simply slides on the tower and is locked into place with a hand tightened set screw. 3. Tower constructed of corrosion resistant anodized aluminum with powder coated mounting brackets. 4. No ballast box. No ballast to replace. 5. Extreme long life LEDs reduce maintenance and replacement costs. 6. 25 peel off mylar overspray lamp protectors ship with the unit. 7. 17,500 Lumens produced from only 150 watts. 8. Mercury free shock proof LED lamp light head. 1. 60,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off - No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
