Explosion Proof Dock Light - Class I, Div. I & 2 Groups C & D - Metal Halide - 4 Foot Extension Arm


Sale price$8,569.99


Specifications / Additional Information
EPL-DL-70-48 Dock Light UL and CSA Certified
UL Listing: United States/Canada Class 1 Division 1, Groups C and D
Dimensions: 11 9/16"-W  11 1/2-H  9 1/4"-Depth  Class 1 Division 2, Group C, D
Weight: 25 Lbs Class II, Division 1 - 2, Groups F, G
Total Watts: 70 Class III
Voltage:120V-60hz  UL 595 Marine Use
Lamp Lumens: 32,000 Made in the USA
LED Lamp Life Expectancy: 2500+ Hours
Mounting: Square Tube Steel Swing Arm
Wiring: 6` of Class I, Div. I Wire
Operating Temp Range: T4 Rated
' Product Overview '
Made in Texas The EPL-DL-70-48 Explosion Proof Dock Light is UL Listed Class 1 & 2, Division 1 & 2 and is rated for use in wet and marine environments. The 50" extended swing arm made of 1 1/2 square steel tube and metal halide lamp used with this unit provides operators with excellent power and efficiency coupled with high versatility and ease of use. The EPL-DL-70-48 explosion proof dock light provides 13,000 square feet of work area coverage with 32,000 lumens of light output. The 70 watt metal halide lamp on this unit produces illumination equivalent to typical 400 watt halogen lamps while drawing only 70 watts at .58 amps. The metal halide lamp runs cooler than 400 watt halogen lamps, resulting in an easier to handle unit and less heat in the workspace. The metal halide lamp in this unit produces a brilliant flood pattern of light that is ideal for high vibration environments and general illumination in any area designated a hazardous location fitting this units` classification. A 50 inch extended swing arm made of 1 1/2 square steel tube provides adjustable mounting for a 70 watt light head and allows users to position the light as needed during loading and unloading operations.
40` container without any illumination EPL-DL-70-48 illuminating the container

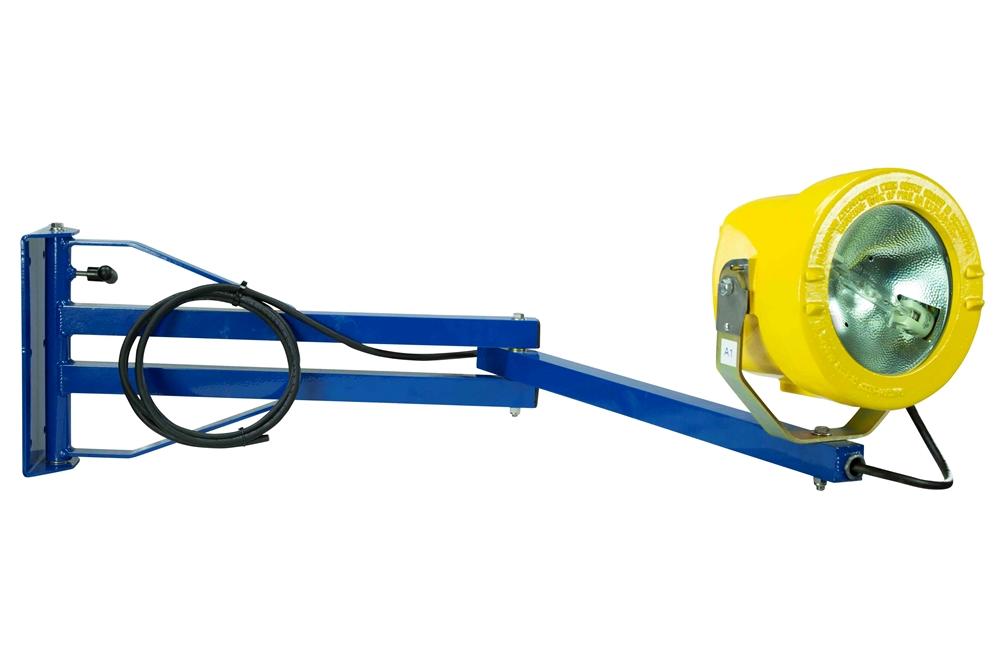

This explosion proof light fixture is comprised of a 70 watt light head with a dual ended metal halide lamp mounted atop a 50" extended swing arm made of 1 1/2" square steel tube with powder coat yellow finish for durability. The swing arm allows a total of 180 degrees horizontal adjustment while the hinge bracket connecting the light to the arm provides both vertical and horizontal adjustment for a wide range of possible positions. Included with this unit is 6` of wire to be used to connect this unit in compliance with NEC methods for Class I, Div. I locations. The wire entrance is sealed and a 1/2 inch threaded NPT allows operators to make conduit connections at the base of the lamp head. The lamp assembly includes a 70 watt metal halide bulb, internal ballast and aluminum finish reflector in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of 3/4" thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The metal halide lamp has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the lamp be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 2500+ hours of life, providing longer service life than typical halogen lamps.
Made in the USA Quality Metal Halide Benefits
1. High Efficiency Metal Halide lamp. 2. 70 Watt Lamp Compares to 400W Halogen. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass Lens. 5. Copper Free Shell, Covers and Sealed Fittings. 6. Vibration/Impact Resistant Construction. 7. Low Maintenance. 8. 26" Square Steel Swingarm Mount.. 9. 2500+ Hour Lamp Life. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw after initial startup. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
