Explosion Proof Dock Light - Class I, Div. I, Groups C & D - 90 Watt LED Lamp - Extension Arm

LARSON ELECTRONICSSKU: PL3-EPL-DL-90LED-24
filler

Price:
Sale price$10,803.99

Description

Specifications / Additional Information
EPL-DL-90LED-24 Dock Light UL and CSA Certified
UL Listing: United States/Canada Class 1 Division 1, Groups C and D
Dimensions: 11 9/16"-W  11 1/2-H  9 1/4"-Depth  Class 1 Division 2, Group C, D
Led Type: CREE XLamp XPG® LED Class II, Division 1 - 2, Groups F, G
Total Watts: 90 Class III
Voltage:12VDC, Included 110-260 VAC to 12-24 VDC Inline Transformer UL 595 Marine Use
Lamp Lumens: 8334
LED Lamp Life Expectancy: 50,000+ Hours
Weight: 25 Lbs.
Mounting: 26" Square Steel Swing Arm
Transformer: Waterproof 12-24 VDC Transformer
Operating Temp Range: T4 Rated
LED Drive %: 90%
PWM Drivers: Active LED Heat Management & Current Regulation
Wiring: 100 feet SOOW Cord, inline transformer, 5-15  Plug
' Product Overview '
Made in the USA The EPL-DL-90LED-24 Explosion Proof Dock Light is UL Listed Class 1 & 2, Division 1 & 2 and is rated for use in wet and marine environments. The 26" extended swing arm made of 1 1/2 square steel tube and metal halide lamp used with this unit provides operators with excellent power and efficiency coupled with high versatility and ease of use. **PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE** The EPL-DL-90LED-24 explosion proof dock light provides 8,334 lumens of light output. The 90 watt LED lamp assembly in this unit produces higher quality illumination with better color rendering and contrasting than typical 400 watt halogen lamps while drawing only 90 watts at 7.5 amps on 12 Volts DC, or 0.75 amps on 120 Volts AC. The LED lamp runs cooler than 400 watt halogen lamps, resulting in an easier and safer to handle unit and less heat in the workspace. The LED lamp in this unit produces a brilliant flood pattern of light that is ideal for high vibration environments and general illumination in any area designated a hazardous location fitting this units` classification. A 26" extended swing arm made of 1 1/2 square steel tube provides adjustable mounting for a 70 watt light head and allows users to position the light as needed during loading and unloading operations.
Dark field without any illumination   Illuminated with the EPL-DL-90LED-24

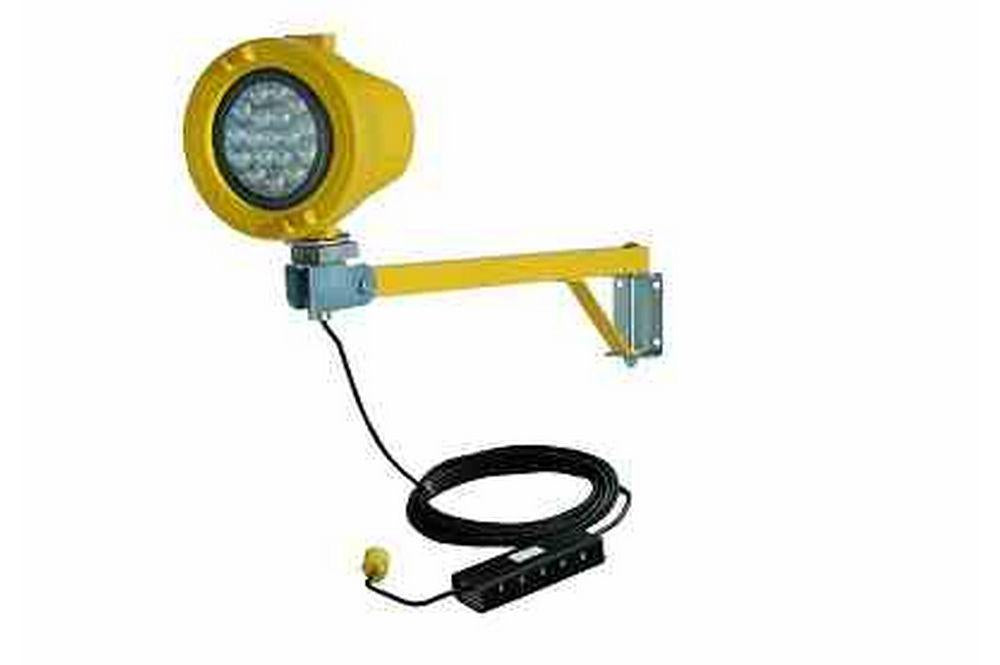

This explosion proof light fixture is comprised of a 90 watt LED light head mounted atop a 26" extended swing arm made of 1 1/2" square steel tube with powder coat yellow finish for durability. The swing arm allows a total of 180 degrees horizontal adjustment while the hinge bracket connecting the light to the arm provides both vertical and horizontal adjustment for a wide range of possible positions. Included with this unit is 6` of wire to be used to connect this unit in compliance with NEC methods for Class I, Div. I locations. The wire entrance is sealed and a 1/2 inch threaded NPT allows operators to make conduit connections at the base of the lamp head. The lamp assembly includes a 90 watt LED lamp and aluminum finish reflector in a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of 3/4" thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The LED lamp has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the lamp be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 50,000+ hours of life, providing longer service life than typical halogen lamps. Durability: This unit incorporates a 70 watt LED lamp assembly containing eighteen CREE XLamp XPG® five watt LEDs producing 463 lumens each, and a copper-free cast aluminum housing with a thermoset powder coat finish. The shell, covers and sealed fittings are also made of copper-free aluminum. The lens is constructed of 3/4" thermal shock and impact resistant tempered glass and the housing contains threaded joints lubricated with non-drying lubricant. The LED lamp assembly has no filament and is thus highly resistant to damage from shocks or impacts, greatly reducing the chances of damage should the lamp be dropped or hit, unlike incandescent lamps which may break or shatter. The lamp is rated at 50,000+ hours of life, providing longer service life than typical halogen lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units contain advanced drivers which use pulse width modulation to control heat buildup rather than simple voltage regulators which are typically harsh on sensitive electronics and can contribute to early LED failure. These units automatically sense the temperature of each LED and adjust the energy frequency or “duty cycle” accordingly to maintain heat levels within acceptable ranges. This system in essence flashes current at an extremely fast on and off rate to each LED based upon the LED’s core temperature. This flash rate is too fast to detect with the human eye, but provides precise control of the current flowing to each LED and thus the heat it generates. This allows the LEDs to be driven at up to 100% capacity without overheating or visible loss of light output. The LEDs are always driven at the same voltage but the duty cycle, however, is changed to alter how long the LEDs are actually on or off. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours.
Made in the USA Quality LED Benefits
1. High Efficiency and Output 90 Watt LED lamp. 2. 90 Watt LED Lamp Provides Cooler Operation. 3. Rugged Die Cast Aluminum Lamp Housing. 4. 3/4" Shock Resistant Tempered Glass Lens. 5. Copper Free Shell, Covers and Sealed Fittings. 6. Vibration/Impact Resistant Construction. 7. Low Maintenance. 8. Spun Aluminum Base. 9. 50,000+ Hour Lamp Life. 10. UL Listed for Marine Environments. 1. Long lamp life. 2. High efficiency and low amp draw. 3. High durability and reliability. 4. High output and very good color rendering. 5. Vibration and shock resistant. 6. Low maintenance.
