45 Degree Surface Mount Explosion Proof Emergency Fluorescent light Combination - 4 foot - 2 T5HO

LARSON ELECTRONICSSKU: PL3-EPL-EMG-48-2L-45D-T5HO
filler

Price:
Sale price$3,288.00

Description

Specifications / Additional Information
EPL-EMG-48-2L-45D-T5HO Explosion Proof Ratings
NRTL Listed for United States & Canada Class 1 Division 1, Groups C and D
Dimensions: W-11.25"  L-52"  H-8.5 " Class 1 Division 2, Group A,B,C,D
Weight: 65 Lbs NRTL Certified to UL 595 Outdoor Marine Type (Saltwater)
Total Watts: 108 watts* NRTL Certified to UL 844, 924
Voltage: Multi- 120V-60hz  220V-50hz  240V-60hz  277V-60hz NRTL Certified to UL 1598 Marine Type
Total Lumens: F54-T5HO 10,000 Class II Division 1- 2, Groups E,F,G
Operating Temp Range: T6 Rated-30 C to 70 C Certified Canadian Standards
Beam Angle: N/A Listed for Paint Spray Booths*
Color Temp: 5000K
Mounting: Bracket Standard - Pendant Optional
Wiring Hub: 1/2 inch threaded
Minimum Operating Temp: -30 C
Maximum Case Temp: 90 C Intl: 1-214-616-6180
  Fax: 1-903-498-3364

' Product Overview '

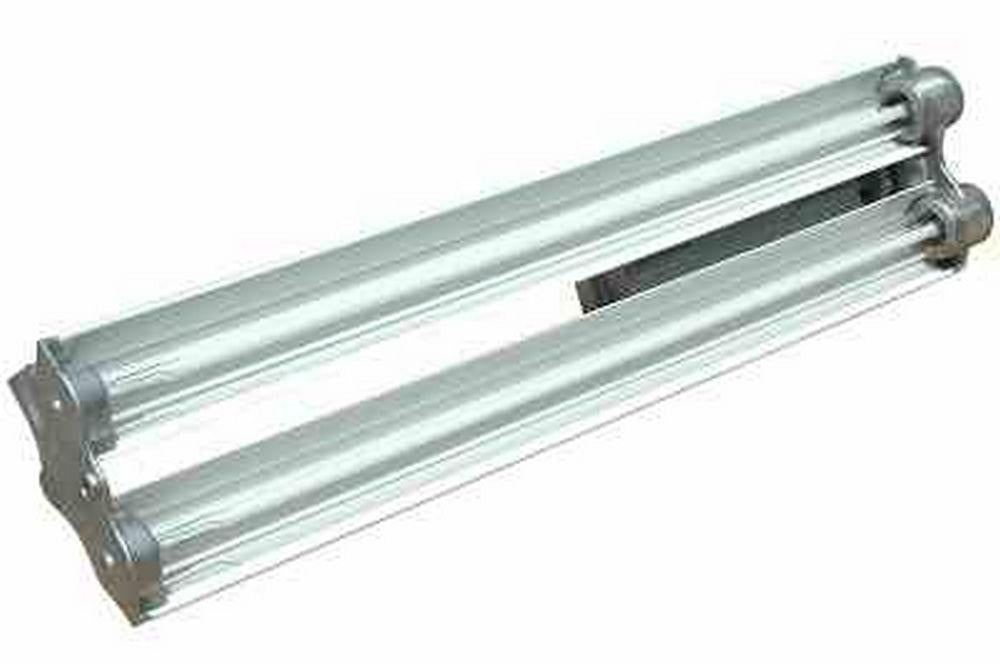

Made in the USA The Larson Electronics EPL-EMG-48-2L-45D-T5HO Explosion Proof Emergency Lights & Fluorescent light Combination is NRTL Listed for United States and Canada Class 1 Division 1,  Class 1 Division 2 and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist. The EPL-EMG-48-2L-45D-T5HO is a 4 foot long, 2 lamp, Class 1 Division 1 and Class 2 Division 1 and 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with 2 T5 high output fluorescent lamps which produce a combined 10,000 lumens of light. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup.
Click Photo to Enlarge
This fluorescent light works, mounts and is wired like our EPL-48-2L explosion proof fluorescent light fixtures. The main difference is that we attach an extra Bodine ballast box to the unit that adds emergency light functionality to the fixture. This explosion proof emergency light will run the standard 90 minutes after power is lost. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency ballast that will run a single lamp at 5,000 lumens for 90 minutes. For an additional charge, a second ballast can be added to run a second lamp for 10,000 total lumens output for 90 minutes. NOTE ON LAMPS: This unit comes equipped with an electronic ballast and F54-T5HO bulbs which produce 5,000 lumens per bulb and have a rated lifespan of 20,000 hours. Additional mounting options: Unless otherwise specified, our standard, most popular configuration is the bracket end mounting shown in the photos above. We also offer a pendant mount for those needing to suspend the fixture away from the ceiling surface (i.e. suspend from pipe or conduit). Standard Bracket Mounts: Each bracket is cinched to the bracket mounting peg on each side of the light. The angle of the bracket is set by tightening two cap screws on either side of the bracket. The cap screws act as a set screw. The bracket itself is mounted via a single bolt hole at the top the bracket. There are two brackets, one on each end of the light. Once the brackets are mounted to a surface (ceiling, floor or wall), the light fixture can be removed from the brackets by loosening the cap screws that hold the bracket to the mounting peg. The first picture shown above illustrates the ballast side bracket and also shows the access caps for changing the bulbs. The second picture shows the bracket at the opposite end of the fluorescent light.   The included mounting brackets extend the fixture out and away from the mounting surface, allowing operators to pivot the light up to 45° in either direction after installation. This is ideal for paint spray booths in wall mount applications to ensure effective and even lighting on all sides of the objects to be painted.
Made in USA Quality Lamps
1. Each unit dielectrically tested. 2. Fixture arrives assembled and lamped to reduce installation time and cost. Adjustable mounting brackets enable the operator to choose any mounting angle for the fixture, where other models may only offer one or three choices. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Over-sized, finned ballast housing for 800 mA fixtures provides more heat dissipation and extends ballast life. Larger ballast box accommodates High Output lamp ballasts. Ballast housing easily accessible and externally mounted. Top and bottom covers secured with nuts and bolts, instead of threaded through holes, which can be damaged with dirt. 5. Heavy gauge extruded aluminum reflectors with high gloss reflective finish. Resists dents and corrosion. 6. A wrench is used to unscrew the end caps for relamping the fixture, while other models require the “tap and knock off” method to loosen the end cap. 7. Explosion proof, impact and heat resistant Pyrex tubes provide lamp protection. F54-T5/850/HO – 354 watt, 5000 lumens per bulb, 20,000 hours life, 5000 Kelvin color, CRI 85
