Explosion Proof Compact LED Handlamp with Cord Reel - Class I Div I - 50' SOOW Cord - 5 Watt LED

LARSON ELECTRONICSSKU: PL3-EPL-FL26-LED-50-HR
filler

Price:
Sale price$10,755.99

Description

Specifications / Additional Information
EPL-FL26-LED-50-HR Work Light F.M. Ratings
FM Listing: United States Class 1, Division 1 for Groups C, D
Dimensions: L-14.5 " Dia-3.5" Class 2, Division 1 Groups E, F, G
Lux: At Lens: 15,000 Class 3, Division 1
Total Watts: 5 watts NEMA 9 and NEMA 4 (IP56)
Voltage: Stnd-120V-60hz  Optional-120 Volts, 50 Hz and 220 volts, 50 Hz FM Listed 508 table 36.1
Total Lumens: 400 Reel - UL Listed E193373
Mounting: Non Sparking Reel Reel - Class I, Zone 1, AEx d II
Wiring: 50` SOOW Cord terminated within Reel
F.M. Approval:
This fixture is being remanufactured with cord reel under file number E193373.

' Product Overview '

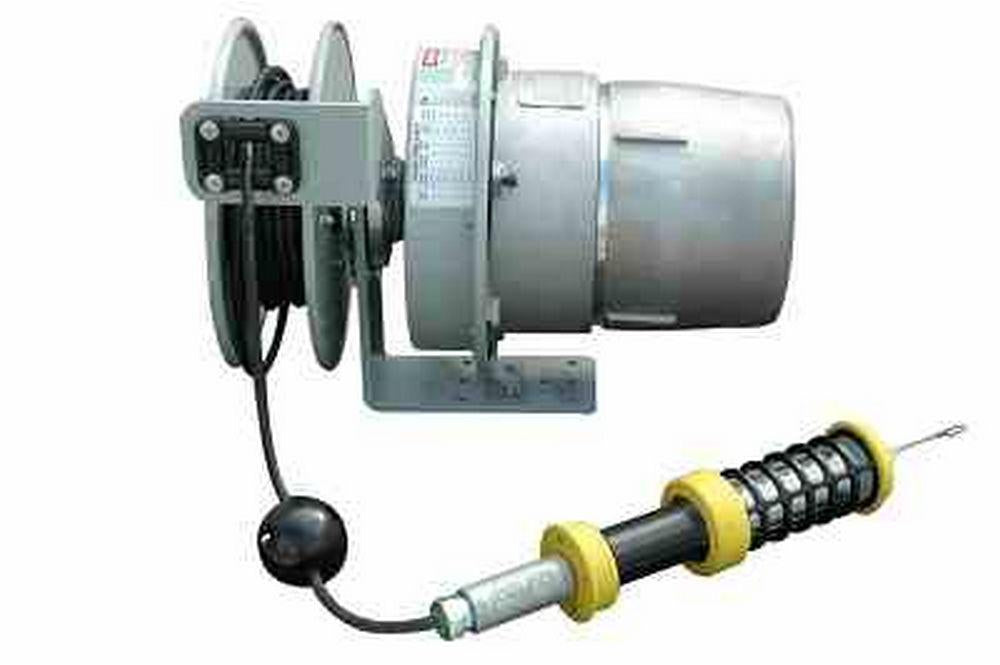

Made in the USA The Larson Electronics EPL-FL26-LED-50-HR  Hazardous Area LED Work light and its explosion proof reel are both F.M. approved Class 1 Division 1 Groups C and D, FM 508 listed and is ideal for close quarter work and inspection activities in hazardous locations requiring explosion proof protection. ***PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO THIS HAZARDOUS LOCATION LIGHT FIXTURE*** This 5 watt explosion proof fluorescent work light produces 400 lumens of pure LED illumination and comes complete with an explosion proof cord reel with a spark proof ratchet mechanism and 50 feet of SOOW cord. The EPL-FL26-LED-50-HR LED drop light is constructed of non sparking aluminum with molded bumper guards, an annealed glass tube shield and integral lamp shock absorbers. This hazardous location hand lamp is designed to Article 500 of the National Electrical Code and is Class 1, Division 1 and Class 2 Division 1 hazardous location environment approved. This explosion proof LED hand lamp can be installed and used within the hazardous location area making it ideal for hazardous work areas where a ready source of easily managed lighting is desired. This particular unit`s internal LED circuitry automatically senses and adjusts the incoming current to the correct level, allowing the unit to run off a variety of voltages ranging from 120-277 VAC. The lamp assembly contains 24 individual LED diodes that produce an exceptionally bright output, creating three times as much light as its fluorescent counterparts. The kelvin temperature color on this unit is 5600K and the rated lifespan of the LEDs lamp assembly is approximately 50,000 hours.   The non sparking reel contains this unit’s 50` of SOOW Cord for convenient cord management. This explosion proof reel and fluorescent hand lamp can be installed and used within the hazardous location area making it ideal for hazardous work areas where a ready source of easily managed lighting is desired.
40` Container Dark  Click Photos to Enlarge Illuminated with EPL-FL26-50-HR
 Click Photos to Enlarge  Click Photos to Enlarge  Click Photos to Enlarge
This 5 watt LED light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 400 lumens of light, roughly equivalent to a 150 watt incandescent bulb as estimated by Sylvania. This unit is approximately 287% brighter than it`s fluorescent counterparts, nearly tripling the output with use of a low wattage, low amp draw LED light emitter. LED lights are popular in paint prep, painting and post-paint inspection operations due to the even white color light produced. Incandescent lights tend to create yellowish, shadowy light that confuses the eye and makes it difficult to examine a work area with consistency. The light output, color and evenness of coverage make LED lights popular for a wide variety of close quarter work and inspection activities. The Class 1, Division 1 rated reel contains 50’ of SOOW 16/3 AWG cord, a spark free ratchet and explosion proof slip-ring housing and meets federal specification JC-580A. This explosion proof LED hand light comes standard with 120 Volts, 60 Hz for US voltages but is also available in 120 Volts, 50 Hz (Mexico) and 220 volts, 50 Hz for international usage.
Made in USA Quality Lamp Features
1. Built to UL 508 table 36.1 / NEC Standards. 2. Indoor or outdoor use. 3. 35 amp, 1-4 conductors 600 Volt, 5-12 conductors 250 Volt. 4. Rugged fabricated steel and cast aluminum construction. 5. Gray epoxy finish on steel parts. 6. FM Listed 508 table 36.1 (3 and 4 conductor units with cable only) 7. Conforms to NEMA 9 and NEMA 4 (IP56) standards 8. SOOW cable (ON ALL REELS) 9. 4-roller adjustable cable guide and Ball Stop 10. NTRL Listing (Cord Reel) - Class I, Division 1 & 2 Group D; Class II, Group G. 11. NTRL Listing (Cord Reel) - Class I, Zone 1, AEx d IIB. 5 watt fluorescent light produces 400 lumens Non-sparking aluminum housing Ballast contained in handle (inline also available) Molded rubber bumper guards Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage to bulbs Swivel hook for hanging and hands free operation Explosion proof extension cord reel
