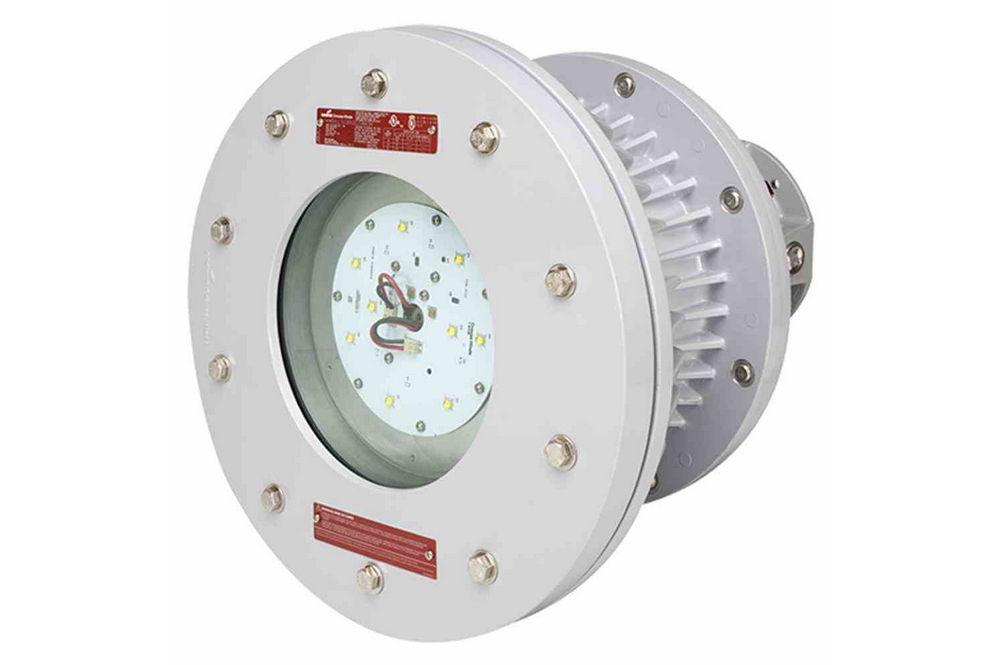

112W Explosion Proof LED Light Fixture - 10,997 Lumens - Class I Division 2 - Class II - Class III

LARSON ELECTRONICSSKU: PL3-EPL-HB-11K-LED
filler

Price:
Sale price$7,282.99

Description

Specifications / Additional Information
EPL-HB-11K-LED Explosion Proof LED Fixture Ratings/Features:
Type: Hazardous Location LED NEC and CEC Certified
Dimensions: 16.32" OD x 15.42" H Class I Division II Groups B, C & D
Weight: 55 lbs Class II Groups E, F & G
Total Lumens: 10,997 Class III
Watts: 112W UL Listed (UL 844, UL 1598 and UL 1598A)
Luminous Efficacy: 98.2 Lm/W NEMA 4X
Voltage: Multi-Voltage Capable - 120-277V AC, 50/60Hz and 108-250V DC IP66
Input Amps (AC): 0.94-0.41 @ 120-277V AC 60,000+ Hour Service Life
Input Amps (DC): 1.07-0.45 @ 108-250V DC Easy Installation
Power Factor: >0.95 Factory Sealed
Ambient Operating Temperature: -25°C to +55°C Energy Efficient - Draws Only 112 Watts
Temperature Rating: T5
Maximum Ambient Temperature: 55°C
Color Temperature: 5000K
Color Rendering Index: 70
Housing Material: Copper Free Aluminum
Housing Color: White
Lens Material: Shatter Resistant Explosion Proof Glass
Gaskets: Silicone Toll Free: 1-800-369-6671
External Hardware: Stainless Steel Intl: 1-214-616-6180
Mounting: Pendant, Ceiling or Wall
Hubs: 3/4" NPT E-mail:
' Product Overview '
The EPL-HB-11K-LED from Larson Electronics is a Class I Division 1 Explosion Proof LED hazardous area LED light fixture designed to withstand harsh conditions and provide operators with superior illumination while using much less power than more traditional lights such as metal halide fixtures. The EPL-HB-11K-LED features easy installation in both new construction and retrofit projects as well as extremely durable die cast aluminum construction. The explosion proof LED lights are ideal for a wide variety of applications and hazardous environments. The EPL-HB-11K-LED Explosion Proof LED Light Fixture is rated for Class I Division 1 Groups B, C & D, Class II Groups E, F & G and Class III hazardous environments. The LED lighting unit is also rated for marine environments, wet locations and hose down areas with both NEMA 4X and IP66 ratings. The EPL-HB-11K-LED has a 60,000+ hour rated service life and can operate 24/7 for 365 continuous days. This LED luminaire is shock and vibration resistant with no filaments or glass components that can break and a shatter resistant explosion proof glass. Light Information: The EPL-HB-11K-LED offers operators a bright source of light for a large variety of hazardous environments and in areas that require a continuous source of consistent light levels in areas with extreme ambient temperatures. The EPL-HB-11K-LED produces 10,997 lumens of cool white light with a color temperature of 5000K. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Power: The EPL-HB-11K-LED draws 112 watts of power and is multi-voltage capable. The EPL-HB-11K-LED is able to operate on voltage from 120-277V AC 50/60Hz and 108-250V DC. The wide range of voltages that this explosion proof LED light can operate on further increases the versatility of the light. Mounting: The EPL-HB-11K-LED is a pendant mount unit that has 3/4" NPT threaded hubs. This explosion proof LED light can be pendant, ceiling or wall mounted. This LED light is recommended for areas with mounting heights of up to 30 feet. Applications: Oil and gas refineries, drilling rigs, petrochemical facilities, food and beverage facilities, platforms, loading docks, tunnels, outdoor wall and stanchion mounted general area lighting, and where flammable vapors, gases, ignitable dusts, fibers or flyings are present.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MH. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Pendant and Swivel Bracket mount included 8. Low profile - Light weight 9. 10,997 Lumen output from 112 watts 1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
