Explosion Proof 150 Watt High Bay LED Light Fixture - 10,000 Lumens - Group B - Hydrogen Approved


Sale price$5,192.99


Specifications / Additional Information
EPL-HB-150LED-B-PND High Bay Low Profile Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: 16" Diameter, 5" Thickness Class 1 Division 1&2 Groups B, C, D
Total Watts: 150W Class 2 Division 1&2 Groups E,F,G
Lumens: 10,000 Class 3 Division 1&2
Voltage: Multi- 100-277 VAC, 50/60Hz CSA Certified to C22.2 No.137-M81
Lighting Configuration: Flood Pattern cETL Certified to UL844 and C22.2 Standards
Mounting: Pendant
Wiring Hub: 3/4€ NPT or 5/16€-18 x .75€ NPT Thread
Weight: 30lbs
U.L. Listing: Explosion Proof Toll Free: 1-800-369-6671
Temp Rating: T5 -40C to +65C Intl: 1-214-616-6180
Color Temp: 6000K, 70-CRI. Fax: 1-903-498-3364
Lamp Life: 60,000+ Hours E-mail:
' Product Overview '

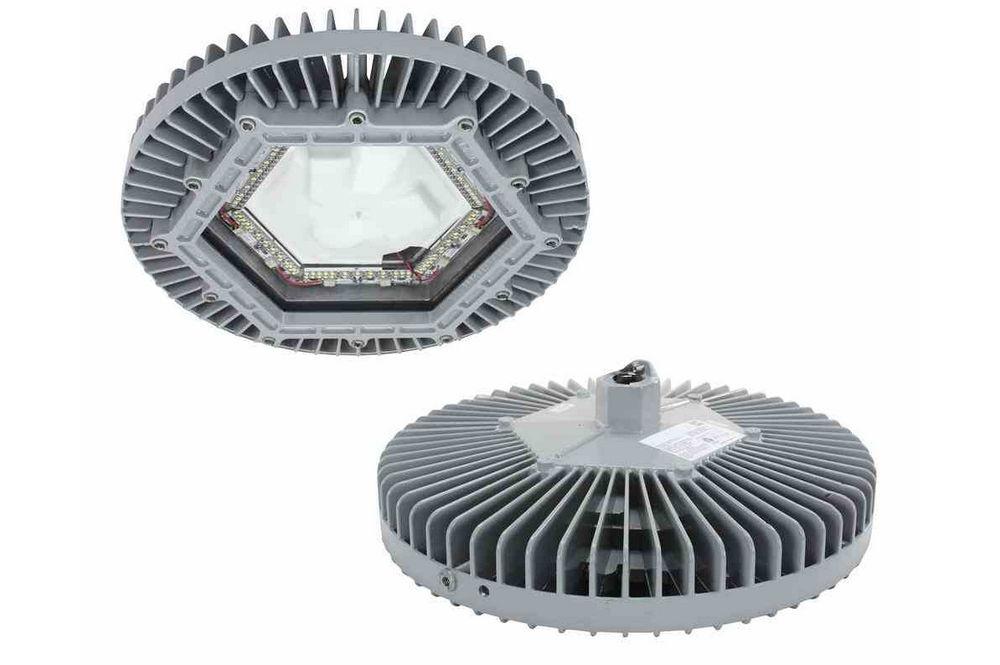

The Larson Electronics EPL-HB-150LED-B-PND Low Profile Hydrogen Approved LED pendant mounted light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1 & 2, Class 2 Division 1 & 2 Group B explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
Click Photo to Enlarge
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 10,000 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-HB-150LED-B-PND can be pendant mounted by bringing down a rigid conduit to the light fixture. We also offer the EPL-HB-150LED-B-SFC, the surface mounted version of the same product.  Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 80% lumen output after 60,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting and Swivel Bracket. 8. Low profile - Light weight 9. 10,000 Lumen output from only 150 watts 1. 60,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
