|EPL-HB-150LED-RT-480V-IBSC - C1D1 High Bay LED Light||Ratings/Approvals|
|Listing: United States - Canada||Listed for United States and Canada|
|Lamp Type: Cree LED||Class I, Divisions 1 & 2, Groups C and D|
|Dimensions: 14"H x 16"W 5"D||Class II, Divisions 1 & 2, Groups E,F,G|
|Weight: 32 lb||Class III, Divisions 1 & 2|
|Voltage: 347-489 V AC||Certified to UL 844 Ed. 13|
|Total Watts: 150 W||Certified to UL 1598|
|Total Lumens: 21,000||Certified to C22.2 No. 137 Rev 2009|
|Luminous Efficacy: 140 Lm/W||Certified to C22.2 No. 250.0|
|Lamp Life: 60,000+ Hours||Certified to C22.2 No. 30-M-1986 Rev 2012|
|Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K||T5 Temperature Rating|
|Color Rendering Index: >75 CRI||Paint Spray Booth Approved|
|Beam Angle: 60°, 125°, or 140°||IEC 60529 Tested|
|Lighting Configuration: Flood Pattern||IP67 Rated Waterproof|
|NEMA Type (Lighting): 6H x 6V (60° Optics); 6H x 6V (125° Optics); 6H x 7V (140° Optics)||LEL Approved|
|IES Classification: Type I (60° Optics); Type VS (125° Optics); Type VS (140° Optics)||Multiple Driver Banks|
|Longitudinal Classification: Very Short (60° Optics); Very Short (125° Optics); Short (140° Optics)||80% Lumen Retention after 60,000 Hours|
|Cutoff Classification: Cutoff||Factory Sealed Light Fixture|
|CIE Type: Direct||Recommended 15` to 40` Mounting Height|
|BUG Rating: B5-U1-G1 (60° Optics); B4-U1-G1 (125° Optics); B4-U1-G2 (140° Optics)||Safety Cable and Eye Bolt|
|Power Efficiency: >95%|
|Power Factor: 0.992|
|Ambient Operating Temp Range: -50°C to +65°C|
|Operating Temp Rating: T5|
|Housing Material: Copper Free Cast Aluminum|
|Housing Finish: Epoxy Powder Coated - Grey|
|Lens Material: Hardened Borosilicate Glass|
|Gasket Material: Silicone||Toll Free: 1-800-369-6671|
|Mounting: 3/4" Pendant & Swivel Mount - Both Ship w/ Fixture||Intl: 1-214-616-6180|
|Wiring: 10` 16/3 SOOW w/ Flying Leads||Fax: 1-903-498-3364|
|Wiring Hub: 3/4" NPT||E-mail:|

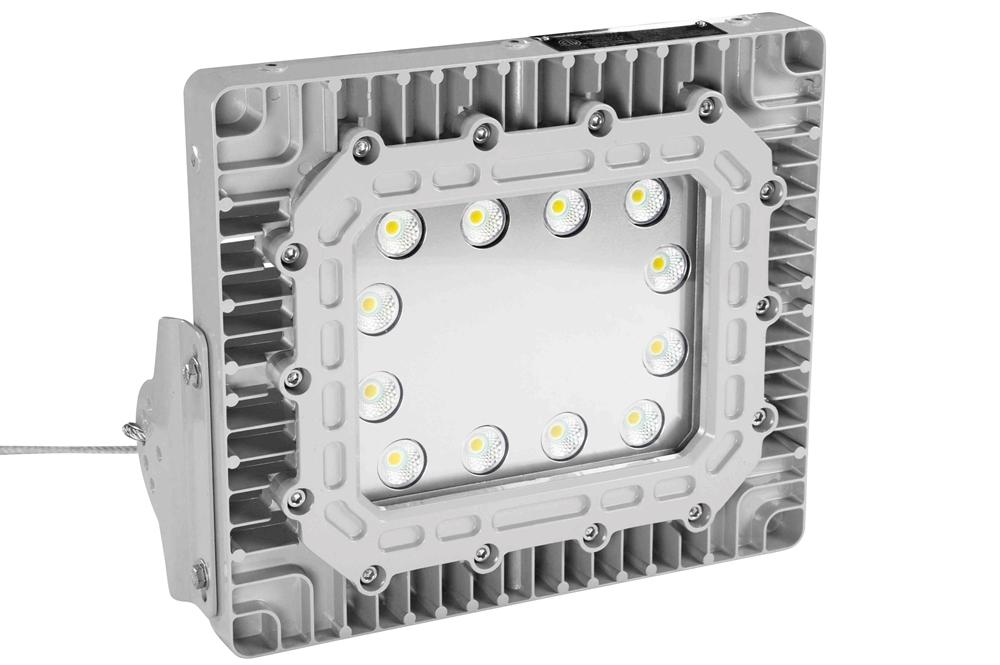

The EPL-HB-150LED-RT-480V-IBSC from Larson Electronics is an Explosion Proof High Bay Light Fixture that provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights. This light fixture includes an eye-bolt and safety cable. The EPL-HB-150LED-RT-480V-IBSC operates on 347-480 V AC current.
This Class I Divisions 1 & 2, Class II Divisions 1 & 2 explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
