10W Explosion Proof LED Light - C1D1/C2D1 - 1050 lms - 125V High Voltage DC


Sale price$1,621.99


Specifications / Additional Information
EPL-LED7W-125VDC Explosion Proof LED Light Ratings/Approvals
Lamp Type: Cree LED Class I, Division 1&2 Groups C,D
Dimensions: 7.25"-Wide, 15" Height Class II, Division 1&2 Groups E,F
Weight: 11 lbs Class III
Voltage: 125V DC IP67 - Waterproof
Total Watts: 10W Suitable for Paint Spray Booths
Lumens: 1050 T3C Temperature Rating
Luminous Efficacy: 105 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 6000K, Red, Amber, Blue, Green, Purple
Color Rendering Index: >75 CRI
Beam Angle: 360°
Lighting Configuration: Flood Pattern
Ambient Operating Temp Range: -55° C to +85°C
Operating Temp Rating: T3C
Housing Material: Copper Free Cast Aluminum
Housing Finish: Powder Coated Toll Free: 1-800-369-6671
Lens Material: Hardened Borosilicate Glass
Mounting: Ceiling, Pendant or Wall Mount
Wiring Hub Size: 1/2" NPT or 3/4" NPT
' Product Overview '

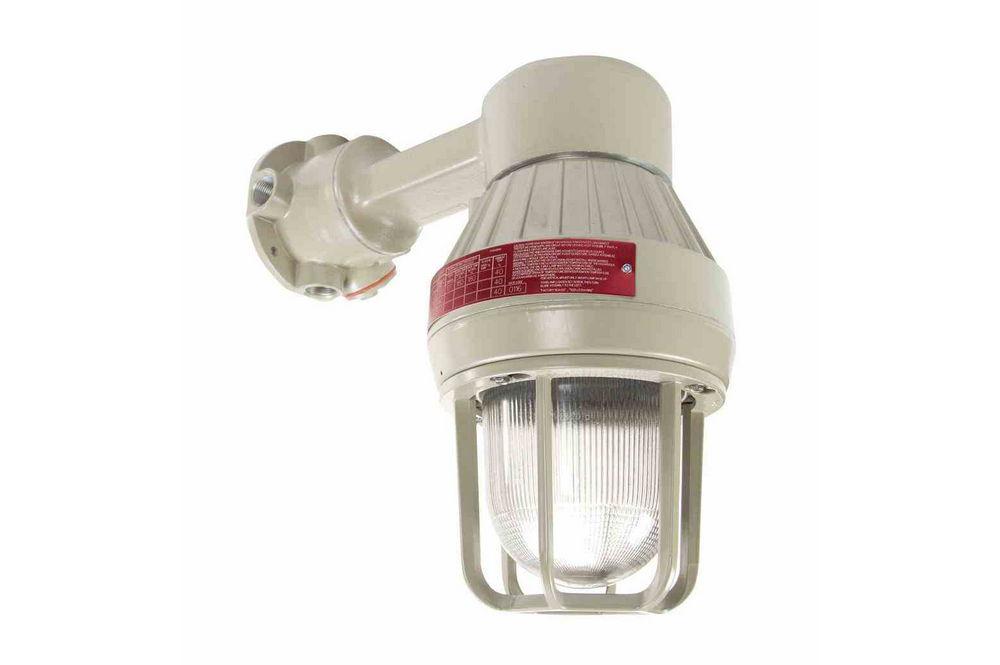

The EPL-LED7W-125VDC Explosion Proof LED Light from Larson Electronics is Class I, Divisions 1 & 2, Groups C & D and Class II, Divisions 1 & 2, Groups E & F listed. Designed to operate with 125V DC, the LED light fixture produces 1050 total lumens of output. Waterproof and IP67 rated, this LED light fixture is offered in multiple mounting solutions and several colors. The powerful and durable EPL-LED7W-125VDC explosion proof LED light from Larson Electronics is ideal for industrial applications, hazardous work spaces, and areas where gases, vapors and dusts may be present and a powerful and durable general purpose light solution is needed. The lamp housing is waterproof, constructed of heavy cast aluminum, and tested to withstand 1490 lbs. per square inch of hydrostatic pressure. Factory sealed and finished in a durable polyester powder coating, this lamp can be ordered with red, blue, green, amber, purple and white light colors. Please choose the lamp color when ordering.
This hazardous area LED light carries a T3C temperature rating and is UL Listed Class I, Groups C and D, Class II, Groups E and F, and Class III. This strobe light is IP67 rated waterproof and suitable for use in paint spray booths and areas where flammable gases, vapors and chemicals may be encountered as well as approved for exposure to combustible dusts. The cast aluminum housing is fully factory sealed and includes an integrated inspection hole for easy access to the splice compartment. Wiring is through a 1/2" NPT or 3/4" NPT hub. The LED lamp in this unit offers exceptional power efficiency over transitional incandescent lamps, offers a 50,000+ hour life, span and is energized by leads which pass through a sealing compound that separates the lamp chamber from the wiring compartment. The LED lamp assembly is protected by a heavy aluminum cage guard and an impact and heat resistant clear prismatic globe with heavy gauge aluminum reflector that affords excellent light control. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: This light can be operated with 125V high voltage DC. Mounting: The explosion proof light offers several mounting options including ceiling mounting, pendant mounting, and wall mounting. Ceiling mount fixtures mount via a flat surface mounting bracket with (4) 1/2" NPT or 3/4" NPT knockouts for wiring the fixture in series and parallel via rigid pipe, utilizing the mounting base as a junction box. Wall mount fixtures mount to flat surfaces with the same style junction box mount as ceiling mount fixtures, but has an arm that extends the fixture out and away from the mounting surface to suspend the fixture over the illuminated surface. Pendant applications are mounted from the ceiling and are suspended by rigid pipe via the 1/2" NPT or 3/4" NPT hub on the back of the explosion proof fixture. Wiring is fed through rigid pipe to the junction box and tied in to the fixture€™s lead wires, completing the electrical connection. This explosion proof LED light fixture is paint spray booth listed, IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. Suggested Applications: The EPL-LED7W-125VDC is approved for use within environments where flammable or combustible gases, vapors, dusts, fibers, and flying exist or stand the potential to exist, and is ideal for a wide variety of applications.
