Explosion Proof 70 Watt Low Profile LED Light Fixture - 6000 Lumens - C1D1 Group B - Hydrogen Rated

LARSON ELECTRONICSSKU: PL3-EPL-LP-70W-LED-B
filler

Price:
Sale price$5,679.99

Description

Specifications / Additional Information
EPL-LP-70W-LED-B Low Profile Light Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: 10.7" Length, 9.7" Width, 5.8" Depth Class 1 Division 1&2 Groups B, C, D
Total Watts: 70W Class 2 Division 1&2 Groups E, F, G
Lumens: 6,000 UL 844
Voltage: Multi- 100-277 VAC, 50/60Hz UL-1598/A
Lighting Configuration: Flood Pattern IP66
Mounting: 3/4€ NPT or 5/16€-18 x .75€ NPT Thread NEMA 4X
Weight: 20lbs
U.L. Listing: Explosion Proof
Temp Rating: T5 -40C to +45C
Color Temp: 5000K, >70-CRI. Toll Free: 1-800-369-6671
Lamp Life: 100,000+ Hours Intl: 1-214-616-6180
Beam Spread: 180° or 360°
Power Factor: >90%
' Product Overview '

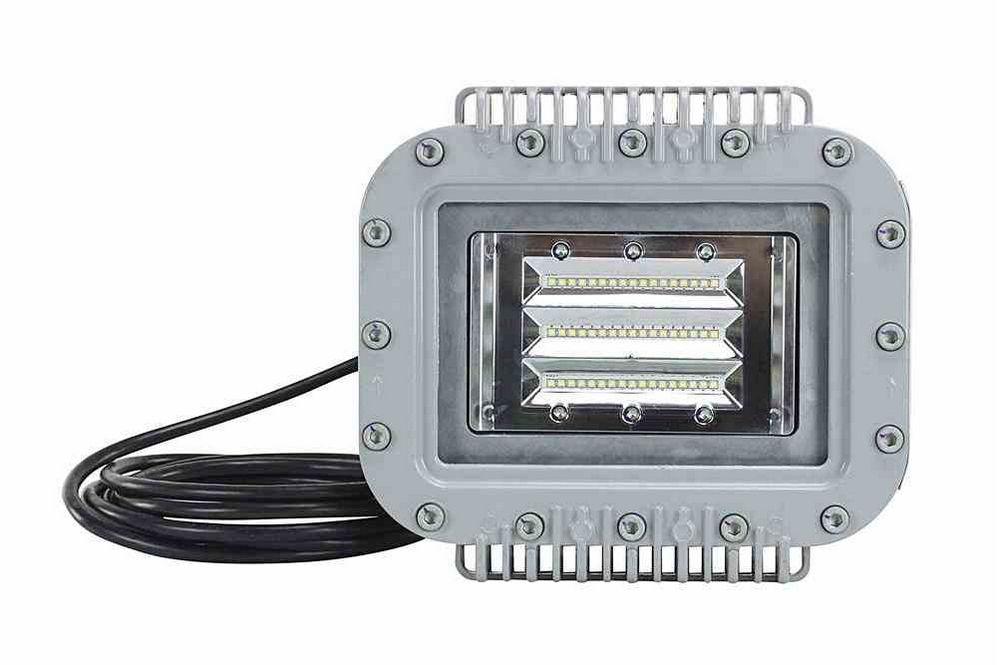

The Larson Electronics EPL-LP-70W-LED-B Low Profile LED light fixture provides operators with a powerful and energy efficient alternative to traditional hydrogen approved hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class 1 Division 1 & 2 Group B explosion proof light fixture provides 6,000 lumens of high quality light while drawing only 70 watts. It is available in 360° and 180° beam spreads. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. A special heat dissipating design in conjunction with advanced LED driver technology helps this fixture achieve an excellent 100,000 hour rated lifespan with 70% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install. This explosion proof LED light fixture is Group B approved for use in environments where hydrogen gases and/or vapors exist or have the potential to exist.
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a ballast or transformer. The aluminum body and LED lamp assembly gives this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat, which increases the efficiency and lifespan of the LED emitters. This high output LED lamp produces 6,000 lumens with a color temperature of 5000K and a color rendering index of 70, which means this lamp render colors and details much more accurately than high pressure sodium or mercury vapor luminaries. The EPL-LP-70W-LED-B is available in several mounting configurations including ceiling mounting, pendant mounting, wall mounting and cable mounting. Note On Beam Spread: The 360° beam spread is the standard directional output and typical for flood lights. The 180° shines in only one direction. This is good for down lighting, wall packs and for not blinding oncoming traffic or pedestrians. Mounting Option Notes: Pendant mounting option requires conduit be supplied by the installer. Wall mounting option comes with Fixture Hanger.
High Quality Features Superior LED Benefits
1. Low power consumption. 2. Instant on/off operation. 3. Fixture constructed of extruded corrosion resistant copper free aluminum alloy. 4. Superior color rendering compared to HPS, LPS, MV. 5. Retains 70% lumen output after 100,000 operating hours. 6. Powder coated aluminum fixture body. 7. Multiple Mounting Options Including Pendant, Wall, Ceiling, Cable Mounting and Swivel Bracket. 8. Low profile - Light weight 9. 6,000 Lumen output from only 70 watts 1. 100,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off €“ No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety.
