|EPL-LR-48-110W-LED-TRN - Class I, II and III Rated Explosion Proof LED Light||Ratings/Approvals|
|Listing: NRTL Listed for United States and Canada||Class I, Divisions 1 & 2, Groups C and D|
|Lamp Technology: LED||Class II, Divisions 1 & 2, Groups E,F,G|
|Dimensions: 49.01"-L x 8.28"-H x 6.33"-D||Class III, Divisions 1 & 2|
|Weight: -||NRTL Certified to UL 844 Ed. 13|
|Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC||NRTL Certified to UL 1598|
|Total Watts: 110W||NRTL Certified to C22.2 No. 137 Rev 2009|
|Total Lumens: 15,950 lms||NRTL Certified to C22.2 No. 250.0|
|Luminous Efficacy: 145 Lm/W||NRTL Certified to C22.2 No. 30-M-1986 Rev 2012|
|Lamp Life: 50,000+ Hours||T5 Temperature Rating|
|Color Temp: -||Paint Spray Booth Approved|
|Color Rendering Index: -||Complies with IEC 60529|
|Lamp Type: -||IP67 Rated Waterproof|
|Lamp Base: -||LEL Approved|
|Replacement Lamp: -|
|Beam Angle: -|
|Lighting Configuration: Flood Pattern|
|Power Efficiency: -|
|Power Factor: -|
|Ambient Operating Temp Range: -|
|Operating Temp Rating: T5|
|Housing Material: Non-sparking|
|Housing Finish: -|
|Lens Material: -|
|Gasket Material: -|
|Mounting: Adjustable U-bracket Trunnion Mount|
|Wiring Hub: -|

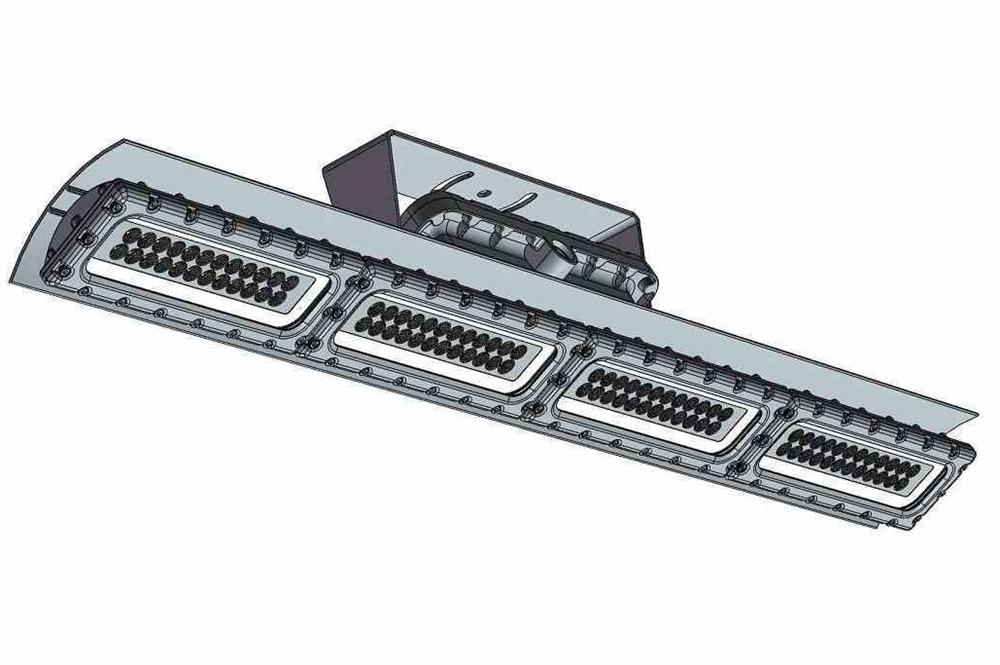

The EPL-LR-48-110W-LED-TRN from Larson Electronics is an Explosion Proof Linear LED Light Fixture that provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. This 110-watt lamp provides 15,950 lumens of white light during use. Cree LED technology and compact design makes this unit an excellent replacement upgrade option for bulky and high maintenance cost older incandescent, metal halide and high pressure sodium lights.
This Class I, Divisions 1 & 2 and Class II, Divisions 1 & 2 explosion proof light fixture provides 15,950 lumens of high quality light while drawing only 110 watts. A special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 50,000-hour rated lifespan with 80% lumen retention. With a 145 lm/w efficiency rate, the LED lamp produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
LED Drivers: Even in LED fixtures, heat is the single largest factor in premature light failure and color shifting. As a result, many manufacturers reduce the output of their LEDs in order to reduce the amount of heat produced. Rather than lower light output or quality, Larson Electronics addresses this problem with the addition of electronic LED drivers. These internal drivers provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. This not only reduces the energy dissipation, effectively lowering the operating temperature of the fixture, but also prevents AC over-voltage and short circuit loading making this fixture virtually maintenance free. Because the electronic drivers allow the EPL-LR-48-110W-LED-TRN to run at a cooler internal temperature and regulates the electrical current, energy efficiency and LED service hours are maximized while at the same time reducing operating costs and downtime incurred from the frequent servicing intervals required with other hotter running lights.
