150 Watt Explosion Proof LED Light - Magnetic Mount-Aluminum Base-140°- 120-277V Stepped Down to 24V

LARSON ELECTRONICSSKU: PL3-EPL-MB-150LED-140DB-X24I-100
filler

Price:
Sale price$6,428.00

Description

Specifications / Additional Information
EPL-MB-150LED-140DB-X24I-100 Magnetic Mount Explosion Proof  Light Ratings/Approvals
Listing: United States & Canada Listed for United States and Canada
Lamp Type: Cree LED Class I, Divisions 1 & 2, Groups C and D
Dimensions: 18"-W x 28.58"-H x 16.34"-D Class II, Divisions 1 & 2, Groups E,F,G
Weight: 45 Lbs Class III, Divisions 1 & 2
Voltage: 120-277V AC 50/60Hz Certified to UL 844 Ed. 13
Total Watts: 150 watts Certified to UL 1598
Total Lumens: 17,500 Certified to C22.2 No. 137 Rev 2009
Luminous Efficacy: 116.67 Lm/W Certified to C22.2 No. 250.0
Color Temp: 5000K, 4000K, 3000K T5 Temperature Rating
Color Rendering Index: >75 CRI IEC 60529 Tested
Beam Angle: 140° IP67 Rated Waterproof
Lighting Configuration: Flood Pattern LEL Approved
Power Efficiency: >95% Multiple Driver Banks
Power Factor: 0.992 80% Lumen Retention after 60,000 Hours
Ambient Operating Temp Range:-50° C to +65°C Factory Sealed Light Fixture
Operating Temp Rating: T5 Class 1 Div 1 Explosion Proof Plug
Lamp Housing Material: Copper Free Cast Aluminum 100 Foot Cord
Lamp Housing Finish: Epoxy Powder Coated - Grey Portable Aluminum Base Stand Mount
Lens Material: Hardened Borosilicate Glass Magnetic Mount Shelf for Base Stand
Gasket Material: Silicone Use as Portable or Magnetic Mount Light
Base Stand & Shelf Material: Non-Sparking Aluminum Direct Replacement for 400W MH Work Lights
Base Stand & Shelf Finish: Power Coated - Gloss Blue
Mounting: Aluminum Base Stand w/ Magnetic Mount Shelf
Magnetic Force: 1200lb Grip (200lb Gripping Force per Magnet)
Wiring: 100` 12/3 SOOW, inline transformer, 5` 16/3 SOOW Industrial Cord Cap
Cord Caps: 5-15, 6-15, L5-15, L6-15, BS1363, Schuko, or Pigtail


' Product Overview '
Made in the USA The EPL-MB-150LED-140DB-X24I-100 Magnetic Mount Explosion Proof LED Light from Larson Electronics is rated Class 1 Division 1-2 Groups C & D and Class 2 Division 1-2 and uses a low profile Cree LED light head to produce 17,500 lumens of light while drawing only 150 watts. This portable light fixture operates on 120-277V AC 50/60 Hz stepped down to 24V DC via an inline transformer. The EPL-MB-150LED-140DB-X24I-100 magnetic mount explosion proof LED light with stepdown transformer provides 10,000 square feet of work area coverage with 17,500 lumens of light output. This portable LED light is mounted to a portable aluminum frame base with legs and has a low profile LED light head measuring 16 inches by 14 inches. This unit includes a magnetic mounting attachment that allows mounting the fixture to metallic surfaces for added versatility and easy setup. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flammable vapors, gases and dusts may be present.
Click Photo to Enlarge

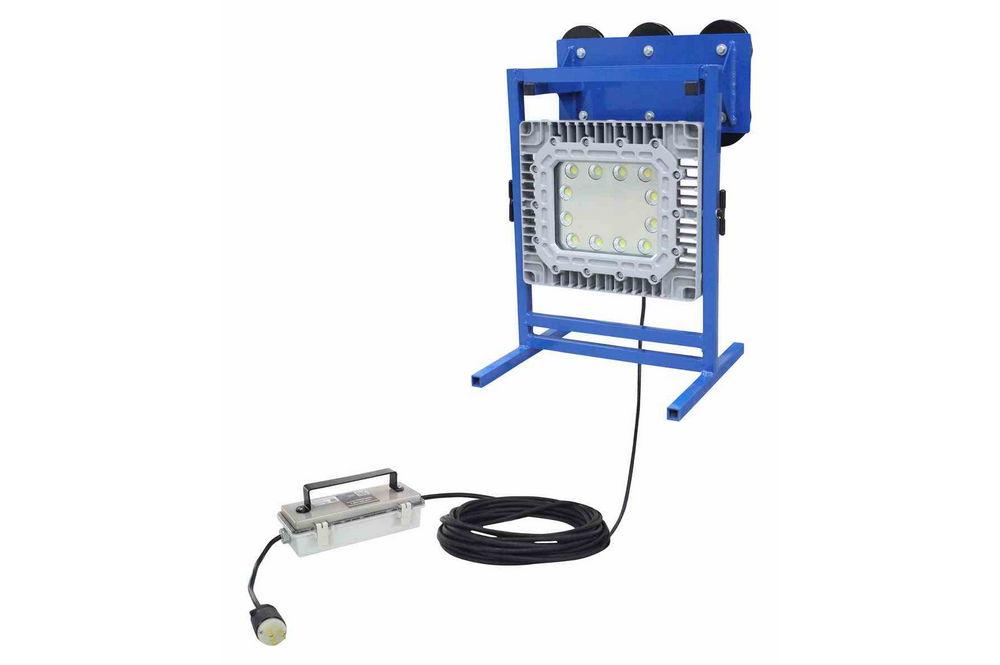

This explosion proof LED light fixture is comprised of a 16x14 inch LED light head mounted atop a legged base stand fabricated from non sparking aluminum, with a separate shelf type magnetic mounting bracket that allows mounting to ferrous metallic surfaces. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two T-handle adjustment screws located on either side of the light head and retightening them once the desired angle is found. The magnetic mounting bracket for this unit includes six 200 lbs. grip magnetic bases which provide a total of 1,200 lbs. of grip and allows operators to mount the unit to walls and flat metallic surfaces. Users simply attach the magnetic mounting bracket to the desired surface, then hang the lamp assembly from the bracket. This bracket is constructed of non-sparking aluminum for light weight and durability, and the simple hanging design allows operators to easily remove the lamp assembly to operate the unit as a pedestal lamp if desired. Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Click Photos to Enlarge
60° Beam Angle 125° Beam Angle Plug 140° Beam Angle Plug
Beam Angles: When used as a portable lighting solution, the varying beam angles are each individually ideal for several environments. The 60° beam provides the most intense beam of the three options. It is perfect for narrow, confined spaces and is ideally suited for tank cleaning purposes. It offers focused light to provide ample illumination to tight work spaces and other environments. The 125° beam offers a more diffused source of light that is also less intense in brightness. It is a great general area work light and performs well when used for outdoor illumination. The 140° beam offers a very wide lighting pattern and is ideal for situations where lighting distance is not a concern, but illumination of a wider area and even light distribution is. The 140° beam is great for situations that call for working in close proximity to lights such as in a paint booth. Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as metal halide and high pressure sodium light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. The LED light assembly is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment. Voltage: The step-down transformer installed in-line provide the ability to automatically monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These light towers can operate on current ranging from 90 to 305V AC or 127 to 431V DC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in electrical systems which would otherwise result in burning up or premature LED failure without it.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring: This explosion proof LED flood lighting system is equipped with 50` of 12/3 chemical and abrasion resistant SOOW cord leading up to the encapsulated step down transformer, and 5` of 16/3 SOOW cable on the input side of the transformer that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Please note: the transformer on this unit is waterproof rated but is NOT explosion proof rated. The transformer must remain outside the hazardous environment. Plug: Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Please note: the cord cap on this unit is outdoor rated but is NOT explosion proof rated. Electrical connections must be made outside the hazardous environment. This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. The LED light assembly on this aluminum quadpod produces 17,500 lumens with a color temperature of 5000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries. We also offer a 3000K warm white and 4000K natural white color temperature options (longer lead times may apply for non-standard temperatures). This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics. The light head can be removed and used separately from the quadpod for added convenience.
Made in USA Quality Superior LED Benefits
1. Approved Class 1 Div1-2 Class2 Division I-2 2. Led lamp head requires no lamping.  3. Durable magnetic base mount constructed of copper free aluminum. 4. No ballast box.  No ballast to replace.  5. Extreme long life LEDs reduce maintenance and replacement costs. 6. Adjustable LED light head.  7. 25 peel off mylar overspray lamp protectors ship with the unit. 8. 17,500 Lumens produced from only 150 watts. 9. Mercury free shock proof  LED lamp light head. 1. 50,000+ hour lifespan. 2. Can SAVE 50% or more on energy. 3. 100% recyclable. 4. No toxins-lead, mercury. 5. No UV light, infrared radiation or CO2 emissions. 6. Bright, even light maintains consistent color over time. 7. Instant on/off €“ No flickering, delays or buzzing. 8. Very good color rendering. 9. Vibration/impact resistant. 10. Significantly cooler operation. 11. Less frequent outages, higher output improves workplace safety.
