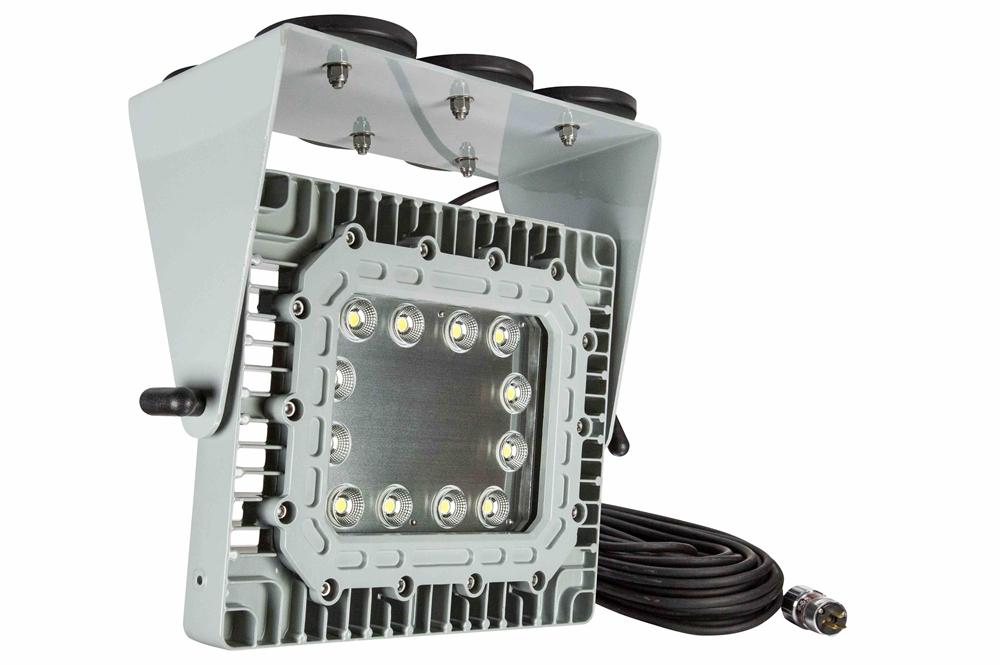

|EPL-MBC-1MLED Magnetic LED Fixture
|Listing: United States & Canada
|Class I Division 1 & 2, Groups C and D
|Lamp Type: Cree LED
|Class II, Divisions 1 & 2, Groups E,F,G
|Dimensions: 18"-W 17"-H 9"-D` Light head
|Class III, Divisions 1 & 2
|T5 Temperature Rating
|Voltage: 100-277 VAC, 50/60Hz or 11-25 Volts AC/DC
|Certified to UL844 and C22.2 No. 137
|Total Watts: 150W
|Total Lumens: 21,000
|Paint Spray Booth Approved
|Luminous Efficacy: 140 Lm/W
|IP67 Rated Waterproof
|Lamp Life: 60,000+ Hours
|Multiple LED Driver Banks
|Color Temp: 5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
|80% Lumen Retention @ 60,000 Hours
|Color Rendering Index: >75 CRI
|Made in the USA
|Lighting Configuration: Wide Flood
|Power Factor: 0.992
|Ambeint Operating Temp Range: -50°C to +65°C
|Operating Temp Rating: T5
|Finish: Powder Coated - Gloss Grey
|Materials: Aluminum Frame & Body, Glass Lens
|Mounting: Ceiling/Flat Surface Mount w/(6) Magnets
|Wiring: 100` 16/3 SOOW Cord w/ a 15 Amp Explosion Proof Cord Cap
|Cord Cap: 5-15 - 15 Amp Straight Blade Explosion Proof Plug
|Warranty: 5 Years
|Made in Texas The Larson Electronics EPL-MBC-1MLED Magnetic Ceiling Mount light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. Cree LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures. This Class I Division 1 & 2, Class II Division 1 & 2 magnetic mount explosion proof light fixture provides 21,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures and requires less hardware to install.
This light is multi-voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 21,000 lumens with a color temperature of 5000K, 4000K, or 3000K and a color rendering index of 75 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.
The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture. With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates. This new series of LED lamps contains twelve individual LED boards configured in a series of banks. Each bank contains two LED boards with an individual driver. In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate. In the event that of an LED failure, the mating LED will continue to operate.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts. This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.
The EPL-MBC-1MLED magnetic mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum. This aluminum mounting bracket has six 200 lbs grip magnetic bases which provide a total of 1,200 lbs of grip and allows operators to mount the unit to ceilings, walls, and any flat metallic surfaces. Users simply attach the magnetic mounting bracket to the desired surface, then hang the lamp assembly from the bracket. The wiring of this portable hazardous location lighting system consists of 100 feet of SOOW cable and is terminated in a 15 amp explosion proof plug. The flying leads allow the user to tap this Class I Division 1 LED light to the desired voltage during installation.
